File Detail parts/12609.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/12609.dat

Part Attributes:

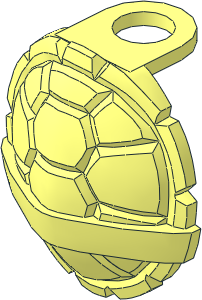

Minifig Ninja Turtle Shell with Horizontal Belt

File Header:

0 Minifig Ninja Turtle Shell with Horizontal Belt
0 Name: 12609.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Neckwear

0 !PREVIEW 16 0 0 0 -1 0 0 0 1 0 0 0 -1

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2024-05-05 [KnightOfTarenta] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

0 // Shell
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12609s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\12609s01.dat

0 // Belt
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12609s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\12609s02.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2024-09-01 05:40:50

Not yet entirely sure about the edges along the 'spine'. On the real part they seem to be there, but it looks weird with visible edge lines.

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-01 20:01:54

*changed the mid edges to conds

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-19 15:14:19

*changed subfile structure to avoid split planes
*Rectifier used on all sub-files
*Category added

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-19 15:26:40

*removed some t-junc

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-10-11 21:20:30

Reduce the attachment pice thickness to the standard 3 LDU please, it is currently 3. something, that does not go well with the editors

I would sugget to have a s01 file fo the entire shell only without the belt, Is there only a verison with a brown belt? no others?

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-10-15 06:27:36

*changed sub-file structure
*neck attachment thickness adjusted to exactly 3 LDU (was 3.163)
*moved origin down 0.163 to match with new attachment thickness

@Gerald:
This piece only exists with the dark brown belt printing.
There is however a very similar part (12610) which has an additional diagonal belt (maybe you had this in mind?). I already considered reusing some sub-files from this for 12610, but upon closer inspection, there are a few very subtle changes to the sculpt which make this difficult.
Aside from the diagonal belt causing a lack of symmetry, the height and thickness of the horizontal belt seem to differ and the outer scutes of the shell are aranged a bit differently.

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2024-10-15 14:59:34

There is a small TJ between the subfiles here:
one subfiles ahs two faces meeting only one in the other. Itis in a corner, hardly, if ever visible

3 16 -9.825 34.39 19.337 -8.052 33.701 20.36 -12.879 33.688 18.042
3 16 -8.052 33.701 20.36 -6.442 33.54 23.347 -10.466 33.694 19.201
3 16 -10.466 33.694 19.201 -6.442 33.54 23.347 -12.879 33.688 18.042

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-10-16 10:01:07

Magnus Forsberg [MagFors]

posted a vote of Admin Review.

2025-08-04 21:41:36

Chris Böhnke [KnightOfTarenta]

edited the part header.

2025-08-04 23:49:01

Header Edits

preview:
16 0 0 0 1 0 0 0 1 0 0 0 1
to
16 0 0 0 -1 0 0 0 1 0 0 0 -1

Comment:
Seems like a good idea to have this rotated (to not get confused with the other ones).

Magnus Forsberg [MagFors]

made the following comment.

2025-08-05 06:45:47

If they all need a preview rotation maybe there is something wrong with the orientation?
OTOH, all Minifig Neckwear should have the same orientation.

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-08-05 10:25:55

That was the problem here. Since it's minifig neckgear having it rotated by default would not be in line woth other parts.

I'm not insisting on the rotated view, but differentiating 12609 and 12610 might get problematic without.

Orion Pobursky [OrionP]

2025-08-31 02:18:38

Release 2025-08
