File Detail parts/5686.dat

Official File parts/5686.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

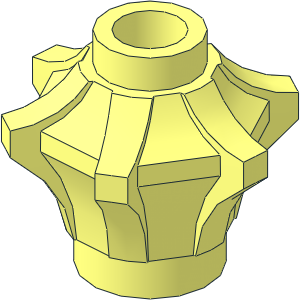

Rock 1 x 1 Crystal 6 Point with Axle Hole and Hollow Stud

File Header:

0 Rock  1 x  1 Crystal  6 Point with Axle Hole and Hollow Stud
0 Name: 5686.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Mace, Weapon

0 !HISTORY 2024-09-05 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-09-05 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
0 BFC INVERTNEXT
1 16 0 3 0 4 0 0 0 -3 0 0 0 4 4-4cyli.dat
1 16 0 3 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 0 3 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat
1 16 0 3 0 6 0 0 0 -1 0 0 0 6 4-4edge.dat

1 16 0 19 0 1 0 0 0 -1.25 0 0 0 1 stud4a.dat
0 BFC INVERTNEXT
1 16 0 19 0 6 0 0 0 -16 0 0 0 6 4-4cyli.dat

1 16 0 19 0 1 0 0 0 -16 0 0 0 1 axl3hol6.dat
1 16 0 19 0 1 0 0 0 -1 0 0 0 1 axl3hol3.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5686s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\5686s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\5686s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\5686s01.dat

4 16 -3.149 4.008 -9.682 3.149 4.008 -9.682 2.125 2.206 -8.057 -2.125 2.206 -8.057
4 16 -4.481 5.349 -11.725 4.481 5.349 -11.725 3.149 4.008 -9.682 -3.149 4.008 -9.682
4 16 1.423 0 -6.943 -1.423 0 -6.943 -2.125 2.206 -8.057 2.125 2.206 -8.057
4 16 -4.499 7.828 -11.743 -3.333 11.259 -9.926 3.333 11.259 -9.926 4.499 7.828 -11.743
4 16 -3.333 11.259 -9.926 -2.656 14.929 -8.815 2.656 14.929 -8.815 3.333 11.259 -9.926
4 16 -2.656 14.929 -8.815 -2.435 19 -8.439 2.435 19 -8.439 2.656 14.929 -8.815
4 16 4.499 7.828 -11.743 4.481 5.349 -11.725 -4.481 5.349 -11.725 -4.499 7.828 -11.743
5 24 2.125 2.206 -8.057 -2.125 2.206 -8.057 1.423 0 -6.943 -3.149 4.008 -9.682
5 24 -3.149 4.008 -9.682 3.149 4.008 -9.682 2.125 2.206 -8.057 -4.481 5.349 -11.725
5 24 -2.656 14.929 -8.815 2.656 14.929 -8.815 -2.435 19 -8.439 3.333 11.259 -9.926
2 24 -4.481 5.349 -11.725 4.481 5.349 -11.725
5 24 -3.333 11.259 -9.926 3.333 11.259 -9.926 4.499 7.828 -11.743 -2.656 14.929 -8.815
2 24 4.499 7.828 -11.743 -4.499 7.828 -11.743
2 24 -1.423 0 -6.943 1.423 0 -6.943
2 24 2.435 19 -8.439 -2.435 19 -8.439

4 16 2.125 2.206 8.057 3.149 4.008 9.682 -3.149 4.008 9.682 -2.125 2.206 8.057
4 16 3.149 4.008 9.682 4.481 5.349 11.725 -4.481 5.349 11.725 -3.149 4.008 9.682
4 16 -2.125 2.206 8.057 -1.423 0 6.943 1.423 0 6.943 2.125 2.206 8.057
4 16 3.333 11.259 9.926 -3.333 11.259 9.926 -4.499 7.828 11.743 4.499 7.828 11.743
4 16 2.656 14.929 8.815 -2.656 14.929 8.815 -3.333 11.259 9.926 3.333 11.259 9.926
4 16 2.435 19 8.439 -2.435 19 8.439 -2.656 14.929 8.815 2.656 14.929 8.815
4 16 -4.481 5.349 11.725 4.481 5.349 11.725 4.499 7.828 11.743 -4.499 7.828 11.743
5 24 -2.125 2.206 8.057 2.125 2.206 8.057 1.423 0 6.943 -3.149 4.008 9.682
5 24 3.149 4.008 9.682 -3.149 4.008 9.682 2.125 2.206 8.057 -4.481 5.349 11.725
5 24 2.656 14.929 8.815 -2.656 14.929 8.815 -2.435 19 8.439 3.333 11.259 9.926
2 24 4.481 5.349 11.725 -4.481 5.349 11.725
5 24 3.333 11.259 9.926 -3.333 11.259 9.926 4.499 7.828 11.743 -2.656 14.929 8.815
2 24 -4.499 7.828 11.743 4.499 7.828 11.743
2 24 1.423 0 6.943 -1.423 0 6.943
2 24 -2.435 19 8.439 2.435 19 8.439

3 16 -2.435 19 -8.439 0 19 -8 2.435 19 -8.439
3 16 0 19 8 -2.435 19 8.439 2.435 19 8.439
3 16 1.423 0 6.943 -1.423 0 6.943 0 0 6
3 16 0 0 -6 -1.423 0 -6.943 1.423 0 -6.943

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-09-06 08:25:54

The axle hole prim is slightly too big... so it protrudes into the bar...

Philippe Hurbain [Philo]

posted a vote of Hold.

2024-12-05 14:32:29

Stray triangle
3 16 -2.435 -5 -8.439 -2.156 -13.44 -6.804 0 -5 -8

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-12-06 14:23:11

Triangle removed

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-12-06 16:07:34

Orion Pobursky [OrionP]

made the following comment.

2024-12-06 18:23:18

Why Rock? I think this is Minifig Accessory and the description should be Weapon Mace or similar.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-12-11 16:51:11

Yes, the CAD world is perfect, but sadly the real axlehole isn't. The real hole has a much softer radious.
I like this description, sorting it with the other Rock Crystals.

Holding for a bad origin. Should be at top stud bottom level.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-12-11 17:08:01

Corrected Origin

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-12-11 18:00:36

Orion Pobursky [OrionP]

made the following comment.

2024-12-11 18:20:52

I'm not sold on Rock. The only use of this part is as a mace.

Gerald Lasser [GeraldLasser]
