File Detail parts/4485b.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/4485b.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

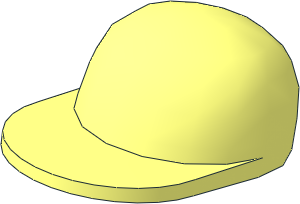

0 Minifig Cap with Long Flat Peak
0 Name: 4485b.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Headwear
0 !KEYWORDS ambulance, baseball, BrickLink 4485, coast guard, hat, Octan, police
0 !KEYWORDS Rebrickable 4485

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2024-09-07 [KnightOfTarenta] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4485bs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4485bs01.dat

0 // Patternable Area
4 16 5.8 -.789 -12.985 5.618 -4.997 -10.947 0 -5.185 -12.022 0 -.988 -14.122
3 16 10.382 -4.462 -7.885 5.8 -.789 -12.985 10.717 -.223 -9.747
3 16 10.382 -4.462 -7.885 5.618 -4.997 -10.947 5.8 -.789 -12.985
3 16 13.564 -3.66 -3.304 10.717 -.223 -9.747 14.002 .625 -4.901
3 16 13.564 -3.66 -3.304 10.382 -4.462 -7.885 10.717 -.223 -9.747
4 16 5.072 -8.396 -8.087 0 -8.557 -9.007 0 -5.185 -12.022 5.618 -4.997 -10.947
3 16 9.373 -7.937 -5.466 5.618 -4.997 -10.947 10.382 -4.462 -7.885
3 16 9.373 -7.937 -5.466 5.072 -8.396 -8.087 5.618 -4.997 -10.947
3 16 12.246 -7.251 -1.543 10.382 -4.462 -7.885 13.564 -3.66 -3.304
3 16 12.246 -7.251 -1.543 9.373 -7.937 -5.466 10.382 -4.462 -7.885
4 16 5.072 -8.396 -8.087 3.873 -10.735 -4.755 0 -10.854 -5.43 0 -8.557 -9.007
3 16 7.156 -10.399 -2.831 5.072 -8.396 -8.087 9.373 -7.937 -5.466
3 16 7.156 -10.399 -2.831 3.873 -10.735 -4.755 5.072 -8.396 -8.087
3 16 9.35 -9.895 .048 9.373 -7.937 -5.466 12.246 -7.251 -1.543
3 16 9.35 -9.895 .048 7.156 -10.399 -2.831 9.373 -7.937 -5.466
4 16 14.013 2.572 -5.573 14.002 .625 -4.901 10.717 -.223 -9.747 10.725 1.827 -10.506
4 16 10.725 1.827 -10.506 10.717 -.223 -9.747 5.8 -.789 -12.985 5.804 1.329 -13.802
4 16 5.8 -.789 -12.985 0 -.988 -14.122 0 1.154 -14.959 5.804 1.329 -13.802
4 16 0 -5.185 -12.022 -5.618 -4.997 -10.947 -5.8 -.789 -12.985 0 -.988 -14.122
3 16 -5.8 -.789 -12.985 -10.382 -4.462 -7.885 -10.717 -.223 -9.747
3 16 -5.618 -4.997 -10.947 -10.382 -4.462 -7.885 -5.8 -.789 -12.985
3 16 -10.717 -.223 -9.747 -13.564 -3.66 -3.304 -14.002 .625 -4.901
3 16 -10.382 -4.462 -7.885 -13.564 -3.66 -3.304 -10.717 -.223 -9.747
4 16 -5.072 -8.396 -8.087 -5.618 -4.997 -10.947 0 -5.185 -12.022 0 -8.557 -9.007
3 16 -5.618 -4.997 -10.947 -9.373 -7.937 -5.466 -10.382 -4.462 -7.885
3 16 -5.072 -8.396 -8.087 -9.373 -7.937 -5.466 -5.618 -4.997 -10.947
3 16 -10.382 -4.462 -7.885 -12.246 -7.251 -1.543 -13.564 -3.66 -3.304
3 16 -9.373 -7.937 -5.466 -12.246 -7.251 -1.543 -10.382 -4.462 -7.885
4 16 0 -10.854 -5.43 -3.873 -10.735 -4.755 -5.072 -8.396 -8.087 0 -8.557 -9.007
3 16 -5.072 -8.396 -8.087 -7.156 -10.399 -2.831 -9.373 -7.937 -5.466
3 16 -3.873 -10.735 -4.755 -7.156 -10.399 -2.831 -5.072 -8.396 -8.087
3 16 -9.373 -7.937 -5.466 -9.35 -9.895 .048 -12.246 -7.251 -1.543
3 16 -7.156 -10.399 -2.831 -9.35 -9.895 .048 -9.373 -7.937 -5.466
4 16 -10.717 -.223 -9.747 -14.002 .625 -4.901 -14.013 2.572 -5.573 -10.725 1.827 -10.506
4 16 -5.8 -.789 -12.985 -10.717 -.223 -9.747 -10.725 1.827 -10.506 -5.804 1.329 -13.802
4 16 -5.8 -.789 -12.985 -5.804 1.329 -13.802 0 1.154 -14.959 0 -.988 -14.122

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2024-09-08 21:55:40

Philippe Hurbain [Philo]

made the following comment.

2024-09-09 08:06:15

The understud should use stud4o:
1 16 0 -6 0 1 0 0 0 -1.5 0 0 0 1 stud4o.dat

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-09 10:31:23

Willy Tschager [Holly-Wood]

made the following comment.

2024-09-09 12:57:08

* Rectify?

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-09-09 15:14:50

Yes, it looks like you can save some lines of code if you use Rectifier in LDPE, or use DatHeader to optimise the code.
But first, it looks like the surface on the right side, doesn't match the condlines in the subfile.

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-09 22:40:15

*fixed the head collision issue by changing the inner border radius to 13 LDU
*replaced some quads with a cone primitive
*minor changes to understud
*re-mirrored the patternable area, so conds should now match on both sides
*used Rectifier on the patternable area (somehow forgot that, duh...)

Magnus Forsberg [MagFors]

posted a vote of Certify.

2024-09-18 18:47:11

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-09-18 23:17:27

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-09-19 01:25:04

Chris Böhnke [KnightOfTarenta]

made the following comment.

2024-09-20 17:37:28

There is a slight oversight here:
I guess the 4-4rin12.dat should be changed to 4-4ring12.dat since it's obsoleted?

While reworking I would also change these

1 16 0 -6 0 0 0 8 0 6 0 8 0 0 4-4cylo.dat
1 16 0 -6 0 0 0 1 0 -1 0 1 0 0 4-4ring8.dat
1 16 0 -6 0 0 0 .75 0 -1 0 .75 0 0 4-4rin12.dat

to 2-4 prims and move them to 4485bs01.dat like suggested here https://library.ldraw.org/tracker/40420

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-09-21 22:54:12

*changed obsolete rin12 to ring12
*moved all mirrored primitives to the sub-file

See discussion here:
https://library.ldraw.org/tracker/40420

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-09-30 21:34:07

Part 4485 has been obsoleted without replacement, so this file needs to be released ASAP.

Orion Pobursky [OrionP]

made the following comment.

2024-09-30 21:49:49

I really need to build a check for this since this is the second time this has happened.
