File Detail parts/2849k04.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2849k04.dat

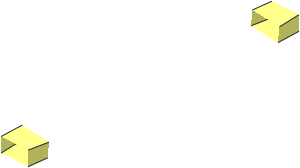

~Electric 9V Battery Box 4 x 14 x 4 - Buttons and Lock Area - Flexible Section Straight - Twisted

File Header:

0 ~Electric 9V Battery Box  4 x 14 x  4 - Buttons and Lock Area - Flexible Section Straight - Twisted
0 Name: 2849k04.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11

Show contents

3 16 2.0936 -44.2854 43 -1.8845 -44.7035 43 -2 -44.5 40
3 16 -2 -44.5 40 2 -44.5 40 2.0936 -44.2854 43
3 16 2 -42.5 40 1.8846 -42.2963 43 2.0936 -44.2854 43
3 16 2.0936 -44.2854 43 2 -44.5 40 2 -42.5 40
3 16 1.8846 -42.2963 43 2 -42.5 40 -2 -42.5 40
3 16 -2 -42.5 40 -2.0935 -42.7145 43 1.8846 -42.2963 43
3 16 -2 -44.5 40 -1.8845 -44.7035 43 -2.0935 -42.7145 43
3 16 -2.0935 -42.7145 43 -2 -42.5 40 -2 -44.5 40
2 24 -2 -44.5 40 -1.8845 -44.7035 43
2 24 2.0936 -44.2854 43 2 -44.5 40
2 24 -2.0935 -42.7145 43 -2 -42.5 40
2 24 1.8846 -42.2963 43 2 -42.5 40
5 24 2.0936 -44.2854 43 -2 -44.5 40 -1.8845 -44.7035 43 2 -44.5 40
5 24 -2 -44.5 40 -2.0935 -42.7145 43 -1.8845 -44.7035 43 -2 -42.5 40
5 24 2.0936 -44.2854 43 2 -42.5 40 2 -44.5 40 1.8846 -42.2963 43
5 24 1.8846 -42.2963 43 -2 -42.5 40 2 -42.5 40 -2.0935 -42.7145 43
5 24 -2 -44.5 40 2 -44.5 40 -1.8845 -44.7035 43 20 -44.5 17.5

3 16 -1.8845 -44.7035 77 2.0936 -44.2854 77 -2 -44.5 80
3 16 2 -44.5 80 -2 -44.5 80 2.0936 -44.2854 77
3 16 1.8846 -42.2963 77 2 -42.5 80 2.0936 -44.2854 77
3 16 2 -44.5 80 2.0936 -44.2854 77 2 -42.5 80
3 16 2 -42.5 80 1.8846 -42.2963 77 -2 -42.5 80
3 16 -2.0935 -42.7145 77 -2 -42.5 80 1.8846 -42.2963 77
3 16 -1.8845 -44.7035 77 -2 -44.5 80 -2.0935 -42.7145 77
3 16 -2 -42.5 80 -2.0935 -42.7145 77 -2 -44.5 80
2 24 -1.8845 -44.7035 77 -2 -44.5 80
2 24 2 -44.5 80 2.0936 -44.2854 77
2 24 -2 -42.5 80 -2.0935 -42.7145 77
2 24 2 -42.5 80 1.8846 -42.2963 77
5 24 -2 -44.5 80 2.0936 -44.2854 77 -1.8845 -44.7035 77 2 -44.5 80
5 24 -2.0935 -42.7145 77 -2 -44.5 80 -1.8845 -44.7035 77 -2 -42.5 80
5 24 2 -42.5 80 2.0936 -44.2854 77 2 -44.5 80 1.8846 -42.2963 77
5 24 -2 -42.5 80 1.8846 -42.2963 77 2 -42.5 80 -2.0935 -42.7145 77
5 24 2 -44.5 80 -2 -44.5 80 -1.8845 -44.7035 77 20 -44.5 102.5

5 24 -1.8845 -44.7035 43 -2.0935 -42.7145 43 -1.9163 -44.4008 44.5308 -2 -44.5 40
5 24 2.0936 -44.2854 77 1.8846 -42.2963 77 2 -42.5 80 2.0618 -43.9826 75.4692
5 24 -2.0935 -42.7145 77 -1.8845 -44.7035 77 -1.9163 -44.4008 75.4692 -2 -44.5 80
5 24 1.8846 -42.2963 43 2.0936 -44.2854 43 2 -42.5 40 2.0618 -43.9826 44.5308

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-09-11 10:38:03

He are the parts to show the pressed buttons on the battery box

I suggest a !HELP line in the final parts to switch to the corresponding position

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-09-13 08:34:12
