Official File parts/2849-f2.dat
Part Attributes:
Base Part: 2849-f1.dat
File Header:

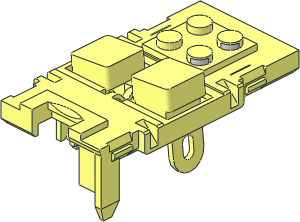

0 Electric 9V Battery Box 4 x 14 x 4 - Buttons - Right Button Pressed
0 Name: 2849-f2.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Rotational Axis for Switch 2 1 0 -43.5 40 0 -43.5 80
0 !HELP Rotate k03 sections by 6 degrees
0 !HELP Use Flex Section k04 instead of k02
0 BFC CERTIFY CCW
0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2849k01.dat
1 16 4.547 -.2383 0 .99452 .10453 0 -.10453 .99452 0 0 0 1 2849k03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 2849k04.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
* Misses the conds connecting k04 to the rest:
5 24 1.884455 -44.7035 43 2.093515 -42.71446 43 1.916273932 -44.400768112 44.5308 2 -44.5 40
5 24 -1.884565 -42.29634 43 -2.093625 -44.28538 43 -2.061806068 -43.982648112 44.5308 -2 -42.5 40
5 24 2.093515 -42.71446 77 1.884455 -44.7035 77 2 -44.5 80 1.916273932 -44.400768112 75.4692
5 24 -2.093625 -44.28538 77 -1.884565 -42.29634 77 -2.061806068 -43.982648112 75.4692 -2 -42.5 80
5 24 1.884455 -44.7035 43 2.093515 -42.71446 43 1.916273932 -44.400768112 44.5308 2 -44.5 40
5 24 -1.884565 -42.29634 43 -2.093625 -44.28538 43 -2.061806068 -43.982648112 44.5308 -2 -42.5 40
5 24 2.093515 -42.71446 77 1.884455 -44.7035 77 2 -44.5 80 1.916273932 -44.400768112 75.4692
5 24 -2.093625 -44.28538 77 -1.884565 -42.29634 77 -2.061806068 -43.982648112 75.4692 -2 -42.5 80
2024-09-13 08:56:47
added in k04
2024-09-13 10:57:54
2024-09-13 13:38:03
2024-12-29 02:20:00
2024-12-30 06:26:00
Release 2024-11
