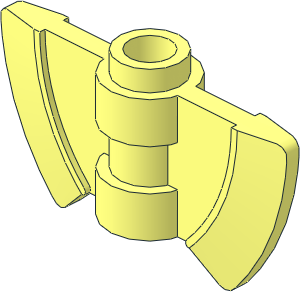

0 Minifig Weapon Axe Head Double Bladed with Hollow Stud
0 Name: 5689.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !HISTORY 2024-09-16 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-09-16 [GeraldLasser] File preparation for LDraw Parts Tracker
