Unofficial File parts/3322.dat
Part Attributes:
File Header:

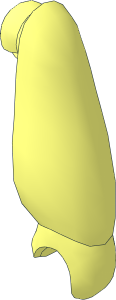

0 Minifig Arm Thick Long with Fixed Hand (Baymax)
0 Name: 3322.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place at 15.552 9 0 relative to torso
0 !HELP Then rotate about x axis to give require elevation of arm
0 !HELP Then rotate -9.782 about z axis to align with slope of torso
0 !HELP Placement of accessories:
0 !HELP Centre of hand is at 7.272 42.8586 0, e.g.
0 !HELP 1 16 7.272 42.8586 0 4 0 0 0 0 4 0 1 0 4-4edge.dat
0 BFC CERTIFY CCW
0 !HISTORY 2023-05-11 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-09-17 [GeraldLasser] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3322s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3322s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\3322s03.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
This part has the following warnings
- Ensure correct Minifig category
Current Votes:
None
Official parents and subparts
Part Events:
2024-09-19 16:49:23
2024-09-22 17:07:51
2024-09-22 18:51:19
THe hand can hold a bar when the fig stands and has a bar fitted into 15712 on top of a 1x1 plate
2024-09-23 07:57:20
I meant that the hand slightly collides with the bar (OK, not a big deal!)
I would still like a !HELP for bar position relative to arm to properly define hand connectivity.
https://brickshelf.com/gallery/Philo/misc2/3322hand.png
I would still like a !HELP for bar position relative to arm to properly define hand connectivity.
https://brickshelf.com/gallery/Philo/misc2/3322hand.png
2024-09-23 09:57:41
OK, got you , will check
added help
Creative Commons Attribution License information
This part is copyright ©
Gerald Lasser
Licensed under
CC BY 4.0
I'm missing a !HELP for exact position of a bar.
