File Detail parts/s/77274s01.dat

Unofficial File parts/s/77274s01.dat

File Header:

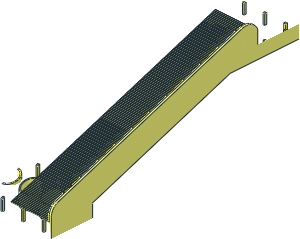

0 ~Duplo Track Ramp  6 x 12 x 3 - Half
0 Name: s\77274s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Lower Part - Bottom Studs and Fillets
1 16 40 115.6 -400 1 0 0 0 -6.1 0 0 0 1 stud8a.dat
1 16 40 115.6 -400 0 0 16 0 -5.76 0 -16 0 0 4-4cyls.dat
1 16 40 109.84 -400 0 0 16 5.76 -1 0 -16 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 40 115.6 -400 0 0 14 0 -.72 0 -14 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 40 114.88 -400 0 0 14 0 -5.04 0 -14 0 0 4-4cyls.dat
1 16 40 109.84 -400 0 0 14 5.04 1 0 -14 0 0 4-4edge.dat

1 16 80 115.6 -400 1 0 0 0 -6.1 0 0 0 1 stud8a.dat
1 16 80 115.6 -400 0 0 16 0 -5.76 0 -16 0 0 4-4cyls.dat
1 16 80 109.84 -400 0 0 16 5.76 -1 0 -16 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 80 115.6 -400 0 0 14 0 -.72 0 -14 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 80 114.88 -400 0 0 14 0 -5.04 0 -14 0 0 4-4cyls.dat
1 16 80 109.84 -400 0 0 14 5.04 1 0 -14 0 0 4-4edge.dat

1 16 0 115.6 -400 0 0 16 0 -5.76 0 -16 0 0 2-4cyls.dat
1 16 0 109.84 -400 0 0 16 5.76 -1 0 -16 0 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 115.6 -400 0 0 14 0 -.72 0 -14 0 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 114.88 -400 0 0 14 0 -5.04 0 -14 0 0 2-4cyls.dat
1 16 0 109.84 -400 0 0 14 5.04 1 0 -14 0 0 2-4edge.dat

0 // Lower Part - Fillets
1 16 100 132.18 -434 1.5 0 0 0 10.82 0 0 0 2 box2-5.dat
4 16 101.5 143 -432 101.5 121.36 -432 101.5 122.8 -436 101.5 143 -436
4 16 98.5 143 -436 98.5 122.8 -436 98.5 121.36 -432 98.5 143 -432
2 24 98.5 121.36 -432 98.5 122.8 -436
2 24 98.5 122.8 -436 98.5 143 -436
2 24 101.5 121.36 -432 101.5 122.8 -436
2 24 101.5 122.8 -436 101.5 143 -436
1 16 60 132.18 -434 1.5 0 0 0 10.82 0 0 0 2 box2-5.dat
4 16 61.5 143 -432 61.5 121.36 -432 61.5 122.8 -436 61.5 143 -436
4 16 58.5 143 -436 58.5 122.8 -436 58.5 121.36 -432 58.5 143 -432
2 24 58.5 121.36 -432 58.5 122.8 -436
2 24 58.5 122.8 -436 58.5 143 -436
2 24 61.5 121.36 -432 61.5 122.8 -436
2 24 61.5 122.8 -436 61.5 143 -436
1 16 20 132.18 -434 1.5 0 0 0 10.82 0 0 0 2 box2-5.dat
4 16 21.5 143 -432 21.5 121.36 -432 21.5 122.8 -436 21.5 143 -436
4 16 18.5 143 -436 18.5 122.8 -436 18.5 121.36 -432 18.5 143 -432
2 24 18.5 121.36 -432 18.5 122.8 -436
2 24 18.5 122.8 -436 18.5 143 -436
2 24 21.5 121.36 -432 21.5 122.8 -436
2 24 21.5 122.8 -436 21.5 143 -436

1 16 100 120.66 -366 1.5 0 0 0 22.34 0 0 0 -2 box2-5.dat
4 16 101.5 96.88 -364 101.5 98.32 -368 101.5 143 -368 101.5 143 -364
4 16 98.5 96.88 -364 98.5 143 -364 98.5 143 -368 98.5 98.32 -368
2 24 101.5 96.88 -364 101.5 143 -364
2 24 101.5 98.32 -368 101.5 96.88 -364
2 24 98.5 96.88 -364 98.5 98.32 -368
2 24 98.5 143 -364 98.5 96.88 -364
1 16 60 120.66 -366 1.5 0 0 0 22.34 0 0 0 -2 box2-5.dat
4 16 61.5 96.88 -364 61.5 98.32 -368 61.5 143 -368 61.5 143 -364
4 16 58.5 96.88 -364 58.5 143 -364 58.5 143 -368 58.5 98.32 -368
2 24 61.5 96.88 -364 61.5 143 -364
2 24 61.5 98.32 -368 61.5 96.88 -364
2 24 58.5 96.88 -364 58.5 98.32 -368
2 24 58.5 143 -364 58.5 96.88 -364
1 16 20 120.66 -366 1.5 0 0 0 22.34 0 0 0 -2 box2-5.dat
4 16 21.5 96.88 -364 21.5 98.32 -368 21.5 143 -368 21.5 143 -364
4 16 18.5 96.88 -364 18.5 143 -364 18.5 143 -368 18.5 98.32 -368
2 24 21.5 96.88 -364 21.5 143 -364
2 24 21.5 98.32 -368 21.5 96.88 -364
2 24 18.5 96.88 -364 18.5 98.32 -368
2 24 18.5 143 -364 18.5 96.88 -364

1 16 114 129.75 -420 2 0 0 0 13.25 0 0 0 1.5 box2-5.dat
1 16 114 130.29 -421.5 2 0 0 0 0 -12.71 0 1 0 rect3.dat
4 16 112 116.5 -418.5 112 143 -418.5 112 143 -421.5 112 117.58 -421.5
2 24 112 117.58 -421.5 112 116.5 -418.5
1 16 114 122.55 -380 2 0 0 0 20.45 0 0 0 1.5 box2-5.dat
1 16 114 123.09 -381.5 2 0 0 0 0 -19.91 0 1 0 rect3.dat
4 16 112 102.1 -378.5 112 143 -378.5 112 143 -381.5 112 103.18 -381.5
2 24 112 103.18 -381.5 112 102.1 -378.5

0 // Lower Part
4 16 120 144 -440 116 144 -436 116 144 -364 120 144 -360
4 16 116 144 -364 116 144 -436 116 122.8 -436 116 96.88 -364

0 // Upper Part - Fillets and Anti-Studs
1 16 100 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 60 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 100 4 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 60 4 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 20 4 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 114 4 -20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 114 4 20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
3 16 120 24 -93.3333 116 24 -93.3333 116 24 -40
4 16 120 24 40 120 24 -93.3333 116 24 -40 116 24 -36
3 16 116 24 -36 116 24 36 120 24 40
2 24 116 24 -40 116 24 -93.3333
2 24 120 24 -93.3333 120 24 40
2 24 116 24 -93.3333 120 24 -93.3333

0 // Ramp Side
4 16 120 144 -440 120 110 -440 116 110 -440 116 120 -440
2 24 116 110 -440 116 120 -440
2 24 120 110 -440 120 144 -440
1 16 120 110 -420 0 -4 0 0 0 -20 -20 0 0 48\3-16cylo.dat
1 16 120 110 -420 0 -1 0 0 0 -20 -20 0 0 48\3-16chrd.dat
1 16 116 110 -420 0 1 0 0 0 -20 -20 0 0 48\3-16chrd.dat
4 16 116 91.522 -427.654 120 91.522 -427.654 120 -36.9888 -71.3584 116 -36.9888 -71.3584
2 24 120 -36.9888 -71.3584 120 91.522 -427.654
2 24 116 -36.9888 -71.3584 116 91.522 -427.654
1 16 120 -14.8152 -62.1736 0 -4 0 -24 0 0 0 0 24 48\3-16cylo.dat
1 16 120 -14.8152 -62.1736 0 -4 0 -24 0 0 0 0 -24 48\1-16cylo.dat
1 16 120 -14.8152 -62.1736 0 -1 0 -24 0 0 0 0 24 48\3-16chrd.dat
1 16 120 -14.8152 -62.1736 0 -1 0 -24 0 0 0 0 -24 48\1-16chrd.dat
1 16 116 -14.8152 -62.1736 0 1 0 -24 0 0 0 0 24 48\3-16chrd.dat
1 16 116 -14.8152 -62.1736 0 1 0 -24 0 0 0 0 -24 48\1-16chrd.dat
3 16 120 -24 -40 120 0 -40 116 -24 -40
2 24 116 -24 -40 120 -24 -40
5 24 120 -36.9888 -71.3584 116 -36.9888 -71.3584 116 -37.9968 -68.3848 116 91.522 -427.654
5 24 120 91.522 -427.654 116 91.522 -427.654 116 92.68 -430 116 -36.9888 -71.3584
2 24 120 -24 -40 120 0 -40

3 16 116 -38.8152 -62.1736 116 -24 -40 116 -36.9888 -71.3584
4 16 116 91.522 -427.654 116 -36.9888 -71.3584 116 -24 -40 116 120 -440
3 16 116 110 -440 116 91.522 -427.654 116 120 -440
2 24 116 120 -440 116 -24 -40

4 16 120 -36.9888 -71.3584 120 91.522 -427.654 120 110 -440 120 -24 -40
3 16 120 -24 -40 120 -38.8152 -62.1736 120 -36.9888 -71.3584
4 16 120 24 -93.3333 120 24 40 120 0 40 120 0 -40
3 16 120 24 -93.3333 120 0 -40 120 -24 -40
4 16 120 -24 -40 120 110 -440 120 120 -360 120 24 -93.3333
4 16 120 144 -440 120 144 -360 120 120 -360 120 110 -440
3 16 116 120 -360 120 120 -360 120 144 -360
2 24 116 120 -360 120 120 -360
2 24 120 120 -360 120 144 -360
2 24 116 95.44 -360 116 -18.32 -44

3 16 116 24 -93.3333 116 -18.32 -44 116 4 -44
4 16 116 24 -93.3333 116 4 -44 116 4 -40 116 24 -40
4 16 116 95.44 -360 116 -18.32 -44 116 24 -93.3333 116 120 -360
4 16 120 120 -360 116 120 -360 116 24 -93.3333 120 24 -93.3333
2 24 120 24 -93.3333 120 120 -360
2 24 116 24 -93.3333 116 120 -360

1 16 80 38.56 -202 0 0 2 56.88 12 0 -158 0 0 box3u2p.dat

1 16 116 -23.2728 -42.02 -76 0 0 0 1 -.36 0 0 1 s\77274s04.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/77274s04.dat (Needs More Votes)
parts/s/77274s02.dat (Needs More Votes)
parts/s/77274s03.dat (Needs More Votes)
parts/s/77274s03.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-09-22 11:06:09
