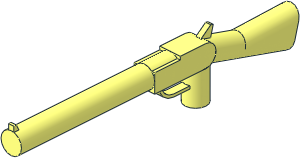

0 Minifig Gun Rifle
0 Name: 30141.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Part UPDATE 2011-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP The center of the "backgrip" (i.e. the part of the buttstock
0 !HELP immediately behind the receiver) is the point (0,-7.41,9.66)
0 !HELP and the angle of the "backgrip" is 75 degrees.

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory
0 !KEYWORDS Adventurers, cavalry, cowboy, firearm, indian, injun, machinegun
0 !KEYWORDS minifig weapon, western, wild west

0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-06-06 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-11-09 [Eldar] BFC'ed
0 !HISTORY 2011-02-12 [Philo] Fixed several intersections
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02

Show contents

0 // grip
1 16 0 6 0 4 0 0 0 -12 0 0 0 4 4-4cyli.dat

1 16 0 6 0 4 0 0 0 -12 0 0 0 4 4-4disc.dat
1 16 0 6 0 4 0 0 0 -12 0 0 0 4 4-4edge.dat
1 16 0 -6 0 -4 0 0 0 -12 0 0 0 -4 2-4edge.dat
0 // receiver
1 16 -4 -10 0 0 8 0 4 0 0 0 0 4 2-4cylc.dat
1 16 4 -10 0 0 -1 0 -4 0 0 0 0 4 2-4disc.dat
0 //
1 16 -4 -10 -5 0 1 0 -4 0 0 0 0 5 rect1.dat
1 16 4 -10 -5 0 -1 0 -4 0 0 0 0 -5 rect1.dat
1 16 0 -14 -5 0 0 4 0 1 0 -5 0 0 rect1.dat
1 16 0 -6 -10 4 0 0 0 -1 0 0 0 -10 rect3.dat
1 16 0 -13.414 -10 0 0 4 0.586 0 0 0 1 0 rect2p.dat
1 16 0 -9.414 -20 0 0 -4 -3.414 0 0 0 1 0 rect2p.dat
1 16 -4 -9.414 -15 0 1 0 -3.414 0 0 0 0 5 rect1.dat
1 16 4 -9.414 -15 0 -1.00412 0 -3.414 0 0 0 0 -5 rect1.dat
4 16 -4 -12.828 -10 -4 -12.828 -20 4 -12.828 -20 4 -12.828 -10
0 //
1 16 0 -10 -10 2.84 0 -2.84 -2.84 0 -2.84 0 -10 0 1-4cyli.dat
0 //
2 24 -4 -12.828 -10 -2.828 -12.828 -10
2 24 4 -12.828 -10 2.828 -12.828 -10
2 24 -4 -12.828 -20 -2.828 -12.828 -20
2 24 4 -12.828 -20 2.828 -12.828 -20
2 24 -2.828 -12.828 -10 -2.828 -12.828 -20
2 24 2.828 -12.828 -10 2.828 -12.828 -20
0 //
1 16 0 -10 -10 2.84 0 -2.84 -2.84 0 -2.84 0 -1 0 1-4edge.dat
1 16 0 -10 -20 2.84 0 2.84 -2.84 0 2.84 0 -1 0 3-4edge.dat
0 //
0 // intersection of grip and receiver
1 16 0 -6 0 -4 0 0 0 -4 0 0 0 4 1-4cyls.dat
1 16 0 -6 0 4 0 0 0 -4 0 0 0 4 1-4cyls.dat
2 24 0 -10 4 -1.531 -8.469 3.696
2 24 0 -10 4 1.531 -8.469 3.696
2 24 -1.531 -8.469 3.696 -2.828 -7.172 2.828
2 24 1.531 -8.469 3.696 2.828 -7.172 2.828
2 24 -2.828 -7.172 2.828 -3.696 -6.304 1.531
2 24 2.828 -7.172 2.828 3.696 -6.304 1.531
2 24 -3.696 -6.304 1.531 -4 -6 0
2 24 3.696 -6.304 1.531 4 -6 0
0 //
0 // trigger guard
1 16 0 -0.5 -10 1.5 0 0 0 0 -0.5 0 6.3 0 box4o8a.dat
2 24 -1.5 -1 -3.702 0 -1 -4
2 24 -1.5 0 -3.702 0 0 -4
2 24 -1.5 -1 -3.702 -1.5 0 -3.702
2 24 0 -1 -4 1.5 -1 -3.702
2 24 0 0 -4 1.5 0 -3.702
2 24 1.5 -1 -3.702 1.5 0 -3.702
0 //
1 16 -1.5 -6 -10 0 3 0 6 0 0 0 0 -6 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -1.5 -6 -10 0 3 0 5 0 0 0 0 -5 1-4cylo.dat
1 16 -1.5 -6 -10 0 1 0 1 0 0 0 0 -1 1-4ring5.dat
1 16 1.5 -6 -10 0 -1 0 1 0 0 0 0 -1 1-4ring5.dat
0 //
0 //
2 24 -1.5 -6 -16 -1.5 -6 -15
2 24 1.5 -6 -16 1.5 -6 -15
2 24 -1.5 -6 -16 1.5 -6 -16
2 24 -1.5 -6 -15 1.5 -6 -15
0 // barrel
1 16 0 -10 -72 4 0 0 0 0 4 0 52 0 4-4cylc.dat
0 // front sight
4 16 -1 -13.8 -72 -1 -15.8 -72 -1 -15.8 -71 -1 -13.8 -70
4 16 1 -13.8 -70 1 -15.8 -71 1 -15.8 -72 1 -13.8 -72
1 16 0 -14.8 -72 1 0 0 0 0 -1 0 1 0 rect3.dat
1 16 0 -15.8 -71.5 1 0 0 0 1 0 0 0 0.5 rect3.dat
1 16 0 -14.8 -70.5 0 0 -1 1 1 0 0.5 -2 0 rect2p.dat
0 //
2 24 -1 -13.801 -71.999 -1 -13.801 -70.001
2 24 1 -13.801 -72 1 -13.801 -70.001
2 24 -1 -13.801 -70.001 0 -14 -70.1
2 24 0 -14 -70.1 1 -13.801 -70.001
0 //
0 // buttstock - "backgrip"
1 16 0 -8.965 3.864 4 0 0 0 3.10583 -3.8637 0 11.5911 1.03528 4-4cyli.dat
0 //
0 // intersection of backgrip and receiver
1 16 0 -8.965 3.864 0 0 4 3.8637 -1.03528 0 -1.03528 -3.8637 0 1-4cyls2.dat
1 16 0 -8.965 3.864 0 0 -4 3.8637 -1.03528 0 -1.03528 -3.8637 0 1-4cyls2.dat
1 16 0 -8.965 3.864 0 0 -4 -3.8637 -1.03528 0 1.03528 -3.8637 0 1-4cyls2.dat
1 16 0 -8.965 3.864 0 0 4 -3.8637 -1.03528 0 1.03528 -3.8637 0 1-4cyls2.dat
0 //
1 16 0 -10 0 3.69552 0 -1.53073 1.99489 -12 4.81609 1.53073 0 3.69552 3-8edge.dat
2 24 -2.828 -6.56 1.913 -3.382 -7.172 2.828
2 24 2.828 -6.56 1.913 3.382 -7.172 2.828
2 24 -3.896 -8.469 3.696 -3.696 -7.584 3.104
2 24 -3.696 -7.584 3.104 -3.382 -7.172 2.828
2 24 3.896 -8.469 3.696 3.696 -7.584 3.104
2 24 3.696 -7.584 3.104 3.382 -7.172 2.828
2 24 3.794 -10 4 3.985 -9.055 3.812
2 24 -3.794 -10 4 -3.985 -9.055 3.812
2 24 -3.987 -8.919 3.785 -3.896 -8.469 3.696
2 24 3.987 -8.919 3.785 3.896 -8.469 3.696
2 24 3.091 -11.531 3.696 3.696 -10.542 3.892
2 24 -3.696 -10.542 3.892 -3.794 -10 4
2 24 -3.091 -11.531 3.696 -3.696 -10.542 3.892
2 24 3.696 -10.542 3.892 3.794 -10 4
2 24 1.878 -12.828 2.828 2.828 -12.027 3.364
2 24 -2.828 -12.027 3.364 -3.091 -11.531 3.696
2 24 -2.828 -12.027 3.364 -1.878 -12.828 2.828
2 24 2.828 -12.027 3.364 3.091 -11.531 3.696
2 24 0.173 -13.696 1.531 1.531 -13.229 2.229
2 24 -1.531 -13.229 2.229 -1.878 -12.828 2.828
2 24 -1.531 -13.229 2.229 -0.173 -13.696 1.531
2 24 1.531 -13.229 2.229 1.878 -12.828 2.828
0 //
0 // shoulder stock
1 16 0 -5.859 15.455 4 0 0 0 5.17638 3.8637 0 19.3185 -1.03528 2-4cyli.dat
1 16 0 -5.859 15.455 4 0 0 0 -0.61918 -3.8637 0 20.8714 1.03528 2-4cyli.dat
3 16 -4 -6.478 36.326 -4 -0.683 34.773 -4 -5.859 15.455
3 16 4 -5.859 15.455 4 -0.683 34.773 4 -6.478 36.326
1 16 0 -5.859 15.455 4 0 0 0 0.25882 -3.8637 0 0.96593 1.03528 2-4edge.dat
0 //
0 // buttplate
1 16 0 -0.683 34.773 -4 0 0 0 -0.25882 3.8637 0 -0.96593 -1.03528 2-4disc.dat
1 16 0 -6.478 36.326 -4 0 0 0 -0.25882 -3.8637 0 -0.96593 1.03528 2-4disc.dat
0 //
1 16 0 -3.58 35.55 0 0 4 -2.89778 -6.212 0 0.7765 -23.18222 0 rect2p.dat
0 //
1 16 0 -0.683 34.773 4 0 0 0 0.25882 3.8637 0 0.96593 -1.03528 2-4edge.dat
1 16 0 -6.478 36.326 4 0 0 0 0.25882 -3.8637 0 0.96593 1.03528 2-4edge.dat
0 //
0 // hammer
4 16 -1 -13.671 0.984 -1 -16.758 4.917 -1 -16.499 5.882 -1 -12.635 4.847
4 16 1 -12.635 4.847 1 -16.499 5.882 1 -16.758 4.917 1 -13.671 0.984
1 16 0 -14.567 5.365 -1 0 0 0 -2.07054 -1.93185 0 -7.7274 0.51763 rect3.dat
1 16 0 -16.628 5.4 -1 0 0 0 0.96591 -0.12945 0 -0.99983 -0.48296 rect3.dat
1 16 0 -15.214 2.95 0 0 1 1.54365 0.78661 0 -1.96653 1 0 rect2p.dat
4 16 -1 -12.635 4.847 -1 -13.671 0.984 1 -13.671 0.984 1 -12.635 4.847
0 //
2 24 -1 -13.777 1.12 -1 -13.696 1.531
2 24 -1 -13.62 1.176 -1 -12.637 4.848
2 24 -1 -13.696 1.531 -1 -13.409 1.96
2 24 1 -13.62 1.176 1 -12.637 4.847
2 24 1 -13.696 1.531 1 -13.409 1.96
2 24 1 -13.777 1.12 1 -13.696 1.531
2 24 -1 -12.637 4.848 0 -12.829 4.899
2 24 0 -12.829 4.899 1 -12.637 4.848
2 24 0 -13.825 1.181 0.431 -13.759 1.096
2 24 -0.431 -13.759 1.096 0 -13.825 1.181
2 24 -1 -13.777 1.12 1 -13.777 1.12
2 24 -1 -13.409 1.96 1 -13.409 1.96
