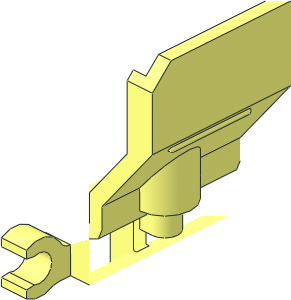

~Cockpit 4 x 2 x 3 with Pinhole and Clips - Half

File Header:

0 ~Cockpit  4 x  2 x  3 with Pinhole and Clips - Half
0 Name: s\98876s01.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-09-30 [notmaster] modified from s\27168s01.dat

Show contents

4 16 20 16 -20 16 16 -16 16 16 20 20 16 24
4 16 16 4 -16 9 4 -9 9 4 9 16 4 20
4 16 8 0 8 8 0 -8 20 0 -20 20 0 20
2 24 20 0 -20 20 -8 -20
2 24 20 0 20 20 0 -20
2 24 14 16 -20 20 16 -20
1 16 10 12 -20 4 0 0 0 0 -4 0 1 0 recte3.dat
4 16 20 16 -20 20 4 -20 14 8 -20 14 16 -20
1 16 10 8 -30 1 0 0 0 1 0 0 0 1 clip6.dat

2 24 40 -48 -14 40 -48 24
2 24 40 -26 -20 40 -26 24
2 24 20 4 -20 20 4 24
2 24 40 -26 24 24 -6 24
1 16 20 0 24 0 0 4 4 0 0 0 -1 0 8\1-4chrd.dat
2 24 40 -48 -14 40 -42 -20
2 24 40 -42 -20 40 -26 -20
2 24 40 -26 -20 24 -6 -20
2 24 24 -6 -20 24 0 -20
1 16 20 0 -20 0 0 4 4 0 0 0 1 0 8\1-4disc.dat
2 24 20 -8 20 36 -28 20
2 24 36 -48 20 36 -48 -14
2 24 36 -48 -14 36 -44 -18
2 24 40 -42 -20 32 -42 -20
2 24 40 -48 -14 36 -48 -14
2 24 36 -44 -18 32 -44 -18
2 24 32 -42 -20 32 -44 -18
2 24 32 -42 -20 32 -23 -20
2 24 32 -23 -20 20 -8 -20
2 24 32 -44 -18 32 -23 -18
2 24 32 -23 -18 32 -23 -20
2 24 36 -44 -18 36 -28 -18
2 24 36 -28 -18 36 -28 20
2 24 36 -28 -18 32 -23 -18
1 16 20 0 24 0 0 4 4 0 0 0 -20 0 8\1-4cylo.dat
1 16 20 0 -4 0 0 4 4 0 0 0 -16 0 8\1-4cylo.dat
4 16 24 0 -20 24 0 -4 24 -6 -8 24 -6 -20
4 16 24 0 4 24 0 24 24 -6 24 24 -6 8
4 16 24 -6 8 24 -6 24 40 -26 24 32 -16 0
4 16 32 -16 0 40 -26 -20 24 -6 -20 24 -6 -8
3 16 32 -16 0 40 -26 24 40 -26 -20
2 24 24 -6 24 24 -6 8
2 24 24 -6 -20 24 -6 -8
4 16 40 -42 -20 40 -26 -20 40 -26 24 40 -48 -14
3 16 40 -48 24 40 -48 -14 40 -26 24
4 16 40 -48 24 36 -48 20 36 -48 -14 40 -48 -14
4 16 40 -48 -14 36 -48 -14 36 -44 -18 40 -42 -20
4 16 40 -42 -20 36 -44 -18 32 -44 -18 32 -42 -20
4 16 40 -42 -20 32 -42 -20 32 -23 -20 40 -26 -20
4 16 40 -26 -20 32 -23 -20 20 -8 -20 24 -6 -20
4 16 24 -6 -20 20 -8 -20 20 0 -20 24 0 -20
4 16 36 -28 20 36 -28 -18 36 -44 -18 36 -48 -14
4 16 32 -23 -18 32 -23 -20 32 -42 -20 32 -44 -18
4 16 32 -23 -18 32 -44 -18 36 -44 -18 36 -28 -18
3 16 36 -48 20 36 -28 20 36 -48 -14

1 16 24 8 0 0 0 4 0 -8 0 4 0 0 2-4cylc.dat
1 16 24 0 0 0 0 8 0 -6 0 8 0 0 2-4cyli.dat
1 16 24 0 0 0 0 4 0 -1 0 4 0 0 2-4ring1.dat
1 16 24 0 0 0 0 8 0 -1 0 8 0 0 2-4edge.dat
1 16 24 -6 0 0 0 8 0 -1 -10 8 0 0 2-4edge.dat
1 16 24 -6 0 -8 0 0 0 -10 0 0 0 8 1-4cyls2.dat
1 16 24 -6 0 -8 0 0 0 -10 0 0 0 -8 1-4cyls2.dat
1 16 20 0 4 0 0 4 4 0 0 0 -1 0 8\1-4ndis.dat
1 16 20 0 -4 0 0 4 4 0 0 0 1 0 8\1-4ndis.dat
1 16 22 4 0 2 0 0 0 4 0 0 0 4 box3u7a.dat
2 24 24 -6 -8 24 0 -8
2 24 24 0 -8 24 0 -4
2 24 24 0 4 24 0 8
2 24 24 0 8 24 -6 8

0 // inside
1 16 24 -4 0 0 0 4 0 1 0 3 0 0 2-4edge.dat
1 16 24 -13 0 0 0 4 0 -1 -5 3 0 0 2-4edge.dat
1 16 24 -13 0 0 0 4 0 1 -5 3 0 0 2-4ndis.dat
1 16 24 -4 0 0 0 4 0 1 0 3 0 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 24 -4 0 0 0 4 0 -9 0 3 0 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 24 -13 0 -4 0 0 0 -5 0 0 0 3 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 24 -13 0 -4 0 0 0 -5 0 0 0 -3 1-4cyls2.dat
2 24 20 -8 -20 20 -8 -3
2 24 20 -8 20 20 -8 3
2 24 24 -13 -3 20 -8 -3
2 24 20 -8 -3 20 -4 -3
2 24 24 -13 3 20 -8 3
2 24 20 -8 3 20 -4 3
4 16 20 -8 3 20 -8 20 20 0 20 20 -4 3
4 16 20 -4 -3 20 -4 3 20 0 20 20 0 -20
4 16 20 -8 -3 20 -4 -3 20 0 -20 20 -8 -20
4 16 24 -4 3 24 -13 3 20 -8 3 20 -4 3
1 16 22 -4 0 0 0 -2 0 1 0 3 0 0 rect3.dat
4 16 24 -13 -3 24 -4 -3 20 -4 -3 20 -8 -3
4 16 20 -8 20 20 -8 3 28 -18 3 36 -28 20
4 16 28 -18 3 28 -18 -3 36 -28 -18 36 -28 20
4 16 32 -23 -18 36 -28 -18 28 -18 -3 20 -8 -3
4 16 32 -23 -18 20 -8 -3 20 -8 -20 32 -23 -20

2 24 17 16 2 16 16 2
2 24 17 16 -2 16 16 -2
2 24 16 16 2 16 4 2
2 24 16 16 -2 16 4 -2
1 16 13.5 20 0 0 -1 -3.5 0 0 4 -2 0 0 rect.dat
1 16 9.305 24 0 -0.695 0 0 0 -1 0 0 0 2 rect2p.dat
2 24 16 4 2 8.61 4 2
2 24 8.61 24 2 8.61 4 2
4 16 8.61 4 2 16 4 2 16 16 2 8.61 24 2
4 16 16 16 2 17 16 2 10 24 2 8.61 24 2
2 24 16 4 -2 8.61 4 -2
2 24 8.61 24 -2 8.61 4 -2
4 16 16 16 -2 16 4 -2 8.61 4 -2 8.61 24 -2
4 16 10 24 -2 17 16 -2 16 16 -2 8.61 24 -2

1 16 38.129284 -23.654399 12 -0.629321 0 0.777146 0.777146 0 0.629321 0 -24 0 8\2-4cyli.dat
1 16 38.129284 -23.654399 12 -0.629321 0 0.777146 0.777146 0 0.629321 0 1 0 8\2-8sphe.dat
1 16 38.129284 -23.654399 -12 -0.629321 0 0.777146 0.777146 0 0.629321 0 -1 0 8\2-8sphe.dat
1 16 38.129284 -23.654399 12 -0.629321 -0.777146 0 0.777146 -0.629321 0 0 0 1 8\2-4edge.dat
1 16 38.129284 -23.654399 -12 -0.629321 -0.777146 0 0.777146 -0.629321 0 0 0 -1 8\2-4edge.dat
2 24 38.75861 -24.43155 -12 38.75861 -24.43155 12
2 24 37.49996 -22.87725 -12 37.49996 -22.87725 12

Status:

Errors Found (HHN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
MagFors	Hold
notmaster	Hold

Official parents and subparts

Part Events:

Jeff Jones [notmaster]

initially submitted the part.

2024-09-30 12:43:13

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-10-01 15:29:51

Instead of creating a new subfile it must be possible to redesign s\27168s01.dat, to be used in both parts.

Jeff Jones [notmaster]

made the following comment.

2024-12-03 20:17:48

sure but looking at 98876 there are some differences like the cylinder on the sides being rotated and others

Jeff Jones [notmaster]

posted a vote of Hold.

2025-05-05 18:39:00

since i am slacking off everyone is free to modify to this
