Unofficial File parts/4614385f.dat
Part Attributes:
File Header:

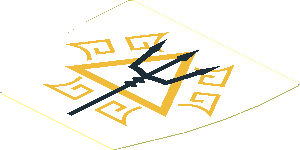

0 Sticker 2.6 x 2.8 with Black Trident, Gold Triangle and Symbols
0 Name: 4614385f.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Sticker
0 !KEYWORDS ancient, BrickLink 7985stk01, Brickowl 816737, City of Atlantis
0 !KEYWORDS Rebrickable 94346, Set 7985, Temple, Underwater
0 !HISTORY 2026-07-20 [Sirio] Modified size after changing of stickerback
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback026x028a.dat
0 // Subparts
1 16 0 -.25 0 1 0 0 0 1 0 0 0 1 s\4614385fs01.dat
1 16 0 -.25 0 -1 0 0 0 1 0 0 0 1 s\4614385fs01.dat
0 // Complementary faces
0 // Black faces
4 0 .75 -.25 13.95 .4758 -.25 18.7808 -.4758 -.25 18.7808 -.75 -.25 13.95
3 0 0 -.25 20.7 -.4758 -.25 18.7808 .4758 -.25 18.7808
4 0 .75 -.25 4.2 .75 -.25 13.95 -.75 -.25 13.95 -.75 -.25 4.2
4 0 .75 -.25 1.55 .75 -.25 2.15 -.75 -.25 2.15 -.75 -.25 1.55
4 0 .75 -.25 -.05 .75 -.25 1.55 -.75 -.25 1.55 -.75 -.25 -.05
4 0 .75 -.25 -1.05 .75 -.25 -.05 -.75 -.25 -.05 -.75 -.25 -1.05
4 0 .75 -.25 -2.65 .75 -.25 -1.05 -.75 -.25 -1.05 -.75 -.25 -2.65
4 0 .75 -.25 -4.5 .75 -.25 -2.65 -.75 -.25 -2.65 -.75 -.25 -4.5
4 0 .75 -.25 -6.8 .75 -.25 -4.5 -.75 -.25 -4.5 -.75 -.25 -6.8
4 0 .75 -.25 -21.75 .75 -.25 -6.8 -.75 -.25 -6.8 -.75 -.25 -21.75
4 0 -.75 -.25 4.2 -.75 -.25 2.15 .75 -.25 2.15 .75 -.25 4.2
0 // White faces
4 15 -.75 -.25 -21.75 -17.6092 -.25 -26 17.6092 -.25 -26 .75 -.25 -21.75
4 15 -26.5 -.25 26 -10.5196 -.25 21.3062 10.5196 -.25 21.3062 26.5 -.25 26
3 15 10.5196 -.25 21.3062 -10.5196 -.25 21.3062 0 -.25 20.7
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Evert-Jan Boer [ejboer]
initially submitted the part.
2024-10-05 18:24:56
Gabriel Läufer [Dr.Bricktacular]
posted a vote of Hold
2025-08-18 20:18:19
BFC error on all four corners (primitves on top).
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-10-20 00:27:39
Should this use a sticker back file? It is common for this part to get the front surface fully covered.
Pattern looks fine thus far.
Pattern looks fine thus far.
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-10-20 00:27:58
Header Edits
help:
0 !HELP
to
0 !HELP
keywords:
City of Atlantis, Set 7985
to
City of Atlantis, Set 7985, Temple, Ancient, Underwater
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-12-17 17:15:02
corrected bfc errors, added stickerback (hope i got dimensions correct)
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-12-17 17:51:07
changed for existing stickerback
Gabriel Läufer [Dr.Bricktacular]
made the following comment.
2025-12-17 18:05:58
Just a comment (and a bit pedantic) but the two symbols at the bottom are not symmetrically placed with respect to the trident. Is the pattern complex enough to make use of mirroring?
Evert-Jan Boer [ejboer]
made the following comment.
2025-12-17 18:27:05
I was thinking about subfiling part of the pattern, did these stickers a long time ago, room for improvement
Rene Rechthaler [Blechtaler]
made the following comment.
2025-12-17 18:31:23
now the sticker name size doesnt match the stickerback anymore, which is correct?
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-12-17 18:35:45
Adjusted name and subfiled pattern
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-07-23 00:53:32
