Official File parts/s/2571s02.dat
File Header:

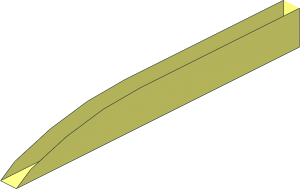

0 ~Panel 3 x 4 x 6 with Curved Top - Reinforcement Rib Long
0 Name: s\2571s02.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 1 40 -10 0 -1 0 -36 0 0 0 0 -36 48\1-16edge.dat
1 16 1 40 -10 0 -1 0 -36 0 0 0 0 -36 48\1-16chrd.dat
1 16 -1 40 -10 0 1 0 -36 0 0 0 0 -36 48\1-16edge.dat
1 16 -1 40 -10 0 1 0 -36 0 0 0 0 -36 48\1-16chrd.dat
4 16 1 8 10 1 8 -25.6 -1 8 -25.6 -1 8 10
4 16 1 8 10 1 4 -10 1 6.7396 -23.7772 1 8 -25.6
3 16 1 8 10 1 4 10 1 4 -10
4 16 -1 8 -25.6 -1 6.7396 -23.7772 -1 4 -10 -1 8 10
3 16 -1 4 -10 -1 4 10 -1 8 10
4 16 -1 8 10 -1 4 10 1 4 10 1 8 10
2 24 1 4 10 1 8 10
2 24 1 8 10 -1 8 10
2 24 -1 8 10 -1 4 10
2 24 1 4 10 1 4 -10
2 24 1 6.7396 -23.7772 1 8 -25.6
2 24 1 8 -25.6 1 8 10
2 24 -1 4 10 -1 4 -10
2 24 -1 6.7396 -23.7772 -1 8 -25.6
2 24 -1 8 -25.6 -1 8 10
2 24 1 8 -25.6 -1 8 -25.6
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Takeshi Takahashi
Licensed under CC BY 4.0
