Official File parts/3677c01.dat
Part Attributes:
Base Part: 3677.dat
File Header:

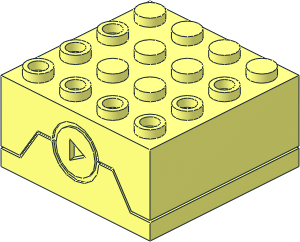

0 Electric Sound Brick 4 x 4 x 1.667
0 Name: 3677c01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Shortcut UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 40 0 1 0 0 0 1 0 0 0 1 3677.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 3674.dat
1 16 30 30 10 1 0 0 0 -1 0 0 0 -1 69702.dat
1 16 -20 30 -20 1 0 0 0 -1 0 0 0 -1 69702.dat
1 16 0 62.5 -40 1 0 0 0 1 0 0 0 1 103683.dat
1 16 0 17 28 1 0 0 0 1 0 0 0 1 u9400.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-10-08 07:54:53
2025-08-06 14:28:50
2025-08-06 16:50:21
2025-08-11 08:55:31
What makes the part different is on the one hand the combinations of colours which we cater for with the pxx number but also the different sound it plays...
so from the outside it looks like the same thing, but has different SW inside.
Numbering it with the "correct" number would make it difficult to search for the coloured assemblies.
ANother approach could be the number of the bottom 3677 and use the element id in the keywords? BL is handling it like that
so from the outside it looks like the same thing, but has different SW inside.
Numbering it with the "correct" number would make it difficult to search for the coloured assemblies.
ANother approach could be the number of the bottom 3677 and use the element id in the keywords? BL is handling it like that
2025-08-12 15:51:42
I think it's the simplest scheme, but feel free to renumber as you feel is right. The purist way would be to create 102723, 102723p01, 109006, 109006p01, 112444 and 112444p01, but it's clumsy and confusing.
2025-08-12 16:09:05
as keywords
2025-08-12 18:28:57
Yes use keywords or another option could be to use aliases
e.g. rename 102723 as 3677c01, 102723p01 as 3677c01p01, 102723p02 as 3677c01p02, 102723p03 as 3677c01p03
and have 102723 alias of 3677c01p01, 109006 alias of 3677c01p02 and 112444 alias of 3677c01p03
e.g. rename 102723 as 3677c01, 102723p01 as 3677c01p01, 102723p02 as 3677c01p02, 102723p03 as 3677c01p03
and have 102723 alias of 3677c01p01, 109006 alias of 3677c01p02 and 112444 alias of 3677c01p03
2025-08-12 18:58:33
Makes sense...
2025-08-12 20:26:31
We need a !SOUND meta ;-) for that one
The 3677c01xxx is good imho, Magnus?
The 3677c01xxx is good imho, Magnus?
2025-08-12 20:53:21
Think it would be wrong to make alias files. Those numbers are designID, including hardcoded coloured parts, and sound.
And that takes us all the way to Shortcut Physical_Colour.
But 3677c01p01-p03, and having the numbers as keyword, is good.
And that takes us all the way to Shortcut Physical_Colour.
But 3677c01p01-p03, and having the numbers as keyword, is good.
2025-08-12 22:09:54
"parts/102723.dat" to "parts/3677c01.dat"
2025-08-13 14:49:20
I agree with Magnus, partc01+kw is perfect, no alias needed.
2025-08-13 15:27:44
2025-08-25 20:30:02
2025-08-31 02:18:38
Release 2025-08
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
102723 = set 76429, Sorting hat
109006 = set 10334, Retro radio
112444 = set 10358, Transformers Soundwave. (if Rebrickable is correct)
Why should we use 102723 on all of these bricks?
