File Detail parts/s/45411s03.dat

Official File parts/s/45411s03.dat

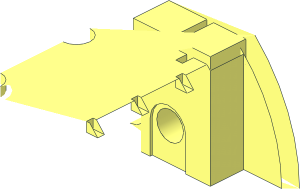

~Slope Brick Curved 6 x 8 x 2 Double - Quarter

File Header:

0 ~Slope Brick Curved  6 x  8 x  2 Double - Quarter
0 Name: s\45411s03.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 0 34 64 7.39104 0 -3.06147 3.06147 0 7.39104 0 12 0 3-16cylo.dat
1 16 0 34 64 0 0 8 8 0 0 0 -1 0 3-16tndis.dat
1 16 0 34 76 0 0 8 8 0 0 0 1 0 3-16tndis.dat

1 16 20 34 64 -7.39104 0 3.06147 3.06147 0 7.39104 0 12 0 3-8cylo.dat
1 16 20 34 64 0 0 -8 8 0 0 0 -1 0 3-16tndis.dat
1 16 20 34 76 0 0 -8 8 0 0 0 1 0 3-16tndis.dat
1 16 20 34 64 0 0 8 8 0 0 0 -1 0 3-16tndis.dat
1 16 20 34 76 0 0 8 8 0 0 0 1 0 3-16tndis.dat

4 16 7.391 37.061 64 12.609 37.061 64 12.609 42 64 7.391 42 64
4 16 7.391 42 76 12.609 42 76 12.609 37.061 76 7.391 37.061 76

1 16 20 42 70 -1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 20 42 70 -1 0 0 0 1 0 0 0 1 cylj4x8.dat

1 16 10 37.064 70 0 0 -2.608 0 -1 0 6 0 0 rect.dat

1 16 20 34 70 1 0 0 0 0 1 0 -1 0 connhol3.dat
1 16 20 34 61 1 0 0 0 0 -1 0 .5 0 peghole2.dat

1 16 0 34 61 8 0 0 0 0 -8 0 1 0 1-4ndis.dat
1 16 20 34 61 8 0 0 0 0 -8 0 1 0 2-4ndis.dat

1 16 20 34 64 9 0 0 0 0 -9 0 16 0 3-16cylo.dat
1 16 20 34 64 -9 0 0 0 0 -9 0 16 0 3-16cylo.dat
1 16 0 34 64 9 0 0 0 0 -9 0 16 0 3-16cylo.dat

1 16 20 34 64 9 0 0 0 0 -9 0 -1 0 3-16tndis.dat
1 16 20 34 64 -9 0 0 0 0 -9 0 -1 0 3-16tndis.dat
1 16 0 34 64 9 0 0 0 0 -9 0 -1 0 3-16tndis.dat

4 16 23.446 25.684 64 23.446 25.684 80 21.5 25.298 80 21.5 25.298 64
4 16 16.556 25.685 80 16.556 25.685 64 18.5 25.298 64 18.5 25.298 80
4 16 3.447 25.684 64 3.447 25.684 80 1.5 25.298 80 1.5 25.298 64

2 24 3.447 25.684 80 1.5 25.298 80
2 24 16.556 25.685 80 18.5 25.298 80
2 24 23.446 25.684 80 21.5 25.298 80

2 24 3.447 25.684 64 1.5 25.298 64
2 24 16.556 25.685 64 18.5 25.298 64
2 24 23.446 25.684 64 21.5 25.298 64

1 16 10 34 72 0 0 -1 0 1 0 8 0 0 rect.dat

1 16 0 34 80 9 0 0 0 0 9 0 -1 0 1-4ndis.dat
1 16 20 34 80 -9 0 0 0 0 9 0 -1 0 2-4ndis.dat

1 16 10 41 61.5 -2 0 0 0 7 0 0 0 -.5 box2-11.dat

4 16 9 34 80 11 34 80 11 43 80 9 43 80
4 16 12 26 61 8 26 61 8 34 61 12 34 61

0 BFC INVERTNEXT
1 16 28.75 14.149 72 0 0 -7.25 0 -11.149 0 8 0 0 box2-5.dat
0 BFC INVERTNEXT
1 16 10 25.298 72 0 0 -8.5 0 -22.298 0 8 0 0 box3u2p.dat

3 16 18.5 3 80 21.5 3 80 20 25 80
3 16 20 25 80 21.5 3 80 21.5 25.298 80
3 16 18.5 25.298 80 18.5 3 80 20 25 80
3 16 0 25 80 1.5 3 80 1.5 25.298 80

0 BFC INVERTNEXT
1 16 32.5 18.5 72 0 0 3.5 0 15.5 0 -8 0 0 box2-7.dat

4 16 36 34 64 29 34 64 29 25.685 64 36 3 64
4 16 23.446 25.684 64 21.5 3 64 36 3 64 29 25.685 64
3 16 21.5 25.298 64 21.5 3 64 23.446 25.684 64
3 16 18.5 3 64 18.5 25.298 64 16.556 25.685 64
3 16 18.5 3 64 16.556 25.685 64 11 25.685 64
4 16 1.5 3 64 18.5 3 64 11 25.685 64 9 25.685 64
4 16 9 25.685 64 11 25.685 64 11 34 64 9 34 64
3 16 1.5 3 64 9 25.685 64 3.447 25.684 64
3 16 1.5 3 64 3.447 25.684 64 1.5 25.298 64
2 24 29 34 64 29 34 80

3 16 36 48 76 27.391 42 76 20 42 76
3 16 36 48 76 20 42 76 12.609 42 76
3 16 36 48 76 12.609 42 76 7.391 42 76
3 16 36 48 76 7.391 42 76 0 42 76
4 16 27.391 37.061 76 27.391 42 76 36 48 76 36.001 37.064 76

3 16 27.391 42 64 36 48 64 20 42 64
3 16 20 42 64 36 48 64 12.609 42 64
3 16 12.609 42 64 36 48 64 7.391 42 64
3 16 7.391 42 64 36 48 64 0 42 64
4 16 27.391 37.061 64 36.001 37.064 64 36 48 64 27.391 42 64

0 BFC INVERTNEXT
1 16 31.696 42.532 70 0 4.3045 0 0 0 -5.468 -6 0 0 box2-7.dat
2 24 27.391 37.061 76 27.391 37.061 64

1 16 -8.284 48 80 68.284 0 0 0 0 -67.883 0 -1 0 48\1-8chrd.dat
1 16 -8.284 48 80 68.284 0 0 0 0 -67.883 0 -1 0 48\1-8edge.dat

4 16 36 34 80 36 3 80 40 0 80 60 48 80
4 16 29 34 80 36 34 80 60 48 80 29 43 80
3 16 29 43 80 60 48 80 20 43 80
3 16 20 43 80 60 48 80 11 43 80
3 16 11 43 80 60 48 80 9 43 80
3 16 9 43 80 60 48 80 0 43 80
3 16 40 0 80 36 3 80 21.5 3 80
3 16 40 0 80 21.5 3 80 18.5 3 80
3 16 40 0 80 18.5 3 80 1.5 3 80

1 16 -7.16 48 76 63.16 0 0 0 0 -62.226 0 1 0 48\1-8chrd.dat
1 16 -7.16 48 76 63.16 0 0 0 0 -62.226 0 1 0 48\1-8edge.dat
3 16 39 48 76 56 48 76 37.5 4 76
1 16 39 26.842 68.5 0 -1 0 21.1585 0 0 0 0 7.5 rect.dat

1 16 0 4 0 8 0 0 0 -1 0 0 0 8 1-4ndis.dat
1 16 0 4 40 0 0 8 0 -1 0 -8 0 0 2-4ndis.dat
1 16 10 4 58.5 1.5 0 0 0 4 0 0 0 -2.5 box4-1.dat
1 16 30 4 58.5 1.5 0 0 0 4 0 0 0 -2.5 box4-1.dat

1 16 38.532 6 50 0 0 -2.532 0 2 0 -1.5 0 0 box2-5.dat
4 16 36 4 48.5 36 8 48.5 41.064 8 48.5 37.5 4 48.5
4 16 36 8 51.5 36 4 51.5 37.5 4 51.5 41.064 8 51.5
2 24 37.5 4 51.5 36 4 51.5
2 24 36 4 48.5 37.5 4 48.5
2 24 37.5 4 48.5 41.064 8 48.5
2 24 37.5 4 51.5 41.064 8 51.5

1 16 38.532 6 30 0 0 -2.532 0 2 0 -1.5 0 0 box2-5.dat
4 16 36 4 28.5 36 8 28.5 41.064 8 28.5 37.5 4 28.5
4 16 36 8 31.5 36 4 31.5 37.5 4 31.5 41.064 8 31.5
2 24 37.5 4 31.5 36 4 31.5
2 24 36 4 28.5 37.5 4 28.5
2 24 37.5 4 28.5 41.064 8 28.5
2 24 37.5 4 31.5 41.064 8 31.5

1 16 38.532 6 10 0 0 -2.532 0 2 0 -1.5 0 0 box2-5.dat
4 16 36 4 8.5 36 8 8.5 41.064 8 8.5 37.5 4 8.5
4 16 36 8 11.5 36 4 11.5 37.5 4 11.5 41.064 8 11.5
2 24 37.5 4 11.5 36 4 11.5
2 24 36 4 8.5 37.5 4 8.5
2 24 37.5 4 8.5 41.064 8 8.5
2 24 37.5 4 11.5 41.064 8 11.5

2 24 37.5 4 11.5 37.5 4 28.5
2 24 37.5 4 31.5 37.5 4 48.5
2 24 37.5 4 51.5 37.5 4 61
2 24 11.5 4 61 28.5 4 61
2 24 31.5 4 61 37.5 4 61

4 16 28 34 61 28 48 61 39 48 61 39 5.683 61
4 16 37.5 4 61 31.5 4 61 31.5 8 61 39 5.683 61
3 16 28 26 61 28 34 61 39 5.683 61
3 16 28 26 61 39 5.683 61 31.5 8 61
4 16 28 26 61 31.5 8 61 28.5 8 61 20 26 61
4 16 28.5 8 61 28.5 4 61 11.5 4 61 11.5 8 61
4 16 12 26 61 20 26 61 28.5 8 61 11.5 8 61
4 16 8 26 61 12 26 61 11.5 8 61 8.5 8 61
3 16 0 26 61 8 26 61 8.5 8 61

4 16 36 48 64 36 48 76 39 48 76 39 48 61
4 16 36 48 64 39 48 61 28 48 61 28 48 62
3 16 36 48 64 28 48 62 12 48 62
3 16 36 48 64 12 48 62 8 48 62
3 16 56 48 76 39 48 76 60 48 80
3 16 60 48 80 39 48 76 36 48 76

3 16 31.5 4 61 37.5 4 61 31.5 4 56
4 16 31.5 4 56 37.5 4 61 37.5 4 51.5 36 4 51.5
4 16 28.5 4 61 28.5 4 56 11.5 4 56 11.5 4 61
4 16 36 4 48.5 37.5 4 48.5 37.5 4 31.5 36 4 31.5
4 16 36 4 28.5 37.5 4 28.5 37.5 4 11.5 36 4 11.5
3 16 8.5 4 61 8.5 4 56 0 4 48
3 16 0 4 48 8.5 4 56 8 4 48
4 16 31.5 4 56 36 4 51.5 36 4 48.5 28.5 4 56
4 16 28.5 4 56 36 4 48.5 36 4 31.5 11.5 4 56
4 16 8.5 4 56 11.5 4 56 36 4 31.5 36 4 28.5
4 16 8 4 48 8.5 4 56 36 4 28.5 36 4 11.5
4 16 8 4 40 8 4 48 36 4 11.5 36 4 8.5
3 16 8 4 40 36 4 8.5 8 4 32
4 16 0 4 8 0 4 32 8 4 32 8 4 8
3 16 8 4 32 36 4 8.5 8 4 8
3 16 8 4 8 36 4 8.5 8 4 0
2 24 39 5.683 61 37.5 4 61

0 BFC INVERTNEXT
1 16 0 0 0 0 0 6 0 4 0 6 0 0 1-4cyli.dat
1 16 0 0 0 0 0 6 0 1 0 6 0 0 1-4ndis.dat
1 16 0 0 0 0 0 6 0 1 0 6 0 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 40 0 0 6 0 4 0 -6 0 0 2-4cyli.dat
1 16 0 0 40 0 0 6 0 1 0 -6 0 0 2-4ndis.dat
1 16 0 0 40 0 0 6 0 1 0 -6 0 0 2-4edge.dat

3 16 0 0 46 6 0 46 40 0 80
4 16 0 0 34 0 0 6 6 0 6 6 0 34
3 16 40 0 80 6 0 46 6 0 40

3 16 40 0 80 6 0 40 6 0 34
3 16 40 0 80 6 0 34 6 0 6
3 16 40 0 80 6 0 6 6 0 0

2 24 39 48 61 28 48 61
2 24 39 48 76 56 48 76

Status:

Official

This part has the following warnings

5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 0 34 64 7.39104 0 -3.06147 3.06147 0 7.39104 0 12 0 3-16cylo.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 20 34 64 -7.39104 0 3.06147 3.06147 0 7.39104 0 12 0 3-8cylo.dat
