Unofficial File parts/s/81911s02.dat
File Header:

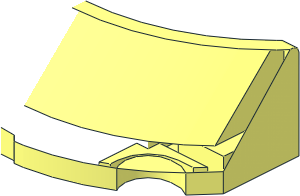

0 ~Windscreen 2 x 4 x 1 Curved - Without Patternable Area - Half
0 Name: s\81911s02.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 -24 44 0 0 54.16667 0 1 0 -54.16667 0 0 48\1-8edge.dat
1 16 0 -24 44 0 0 3.61111 0 1 0 -3.61111 0 0 48\1-8ring14.dat
0 BFC INVERTNEXT
1 16 0 -24 44 0 0 50.55556 0 1 0 -50.55556 0 0 48\1-8cylo.dat
1 16 0 -23 44 0 0 1.2963 0 -1 0 -1.2963 0 0 48\5-48ring39.dat
0 BFC INVERTNEXT
1 16 0 -23 44 0 0 51.85185 0 15 0 -51.85185 -15 0 48\5-48cylo.dat
1 16 0 -8 29 0 0 51.85185 0 1 0 -51.85185 0 0 48\5-48chrd.dat
1 16 0 -4.8 20 6.52631 0 49.57224 0 1 0 -49.57224 0 6.52631 48\5-48edge.dat
2 24 40 -24 7.632 40.002 -4.8 -10.062
2 24 38.304 -24 5.696 40 -24 7.632
2 24 3.5 0 -29 3.5 -5.546 -29
2 24 0 -5.768 -29 3.5 -5.546 -29
2 24 4.23 -4.8 -29.723 3.5 -5.546 -29
2 24 4.23 0 -29.723 3.5 0 -29
2 24 4.23 -4.8 -29.723 4.23 0 -29.723
2 24 0 0 -29 3.5 0 -29
4 16 3.5 -5.546 -29 0 -5.768 -29 0 0 -29 3.5 0 -29
4 16 4.23 -4.8 -29.723 3.5 -5.546 -29 3.5 0 -29 4.23 0 -29.723
2 24 4.23 -4.8 -29.723 6.526 -4.8 -29.572
0 BFC INVERTNEXT
1 16 30 0 -20 -6 0 0 0 -4.8 0 0 0 6 1-4cylo.dat
1 16 30 0 -20 -8 0 0 0 -4 0 0 0 8 1-4cylo.dat
1 16 30 0 -20 -2 0 0 0 -1 0 0 0 2 1-4ring3.dat
1 16 30 -4.8 -20 -6 0 0 0 -1 0 0 0 6 1-4chrd.dat
1 16 37.68 -2.4 -12.71 -2.3223 -1 0 0 0 2.4 -2.6479 0 0 rect.dat
5 24 32.988 -4.8 -14.187 32.988 0 -14.187 35.358 -4.8 -15.357 30 -4.8 -14
2 24 32.988 -4.8 -14.187 30 -4.8 -14
2 24 30 0 -14 32.988 0 -14.187
2 24 32.988 -4.8 -14.187 35.358 -4.8 -15.357
2 24 32.988 0 -14.187 35.358 0 -15.357
4 16 35.358 -4.8 -15.357 32.988 -4.8 -14.187 32.988 0 -14.187 35.358 0 -15.357
4 16 32.988 -4.8 -14.187 30 -4.8 -14 30 0 -14 32.988 0 -14.187
2 24 24.457 -4.8 -22.296 24 -4.8 -20
2 24 25.001 -4.8 -23.302 24.457 -4.8 -22.296
2 24 24.457 0 -22.296 24 0 -20
2 24 25.001 0 -23.302 24.457 0 -22.296
2 24 25.001 -4.8 -23.302 25.001 0 -23.302
4 16 25.001 0 -23.302 24.457 0 -22.296 24.457 -4.8 -22.296 25.001 -4.8 -23.302
4 16 24 -4.8 -20 24.457 -4.8 -22.296 24.457 0 -22.296 24 0 -20
1 16 0 -4.8 20 25 0 43.30127 0 -1 0 -43.30127 0 25 48\1-24chrd.dat
4 16 24.457 -4.8 -22.296 24 -4.8 -20 35.354 -4.8 -15.355 25.001 -4.8 -23.302
4 16 32.988 -4.8 -14.187 35.354 -4.8 -15.355 24 -4.8 -20 30 -4.8 -14
1 16 0 0 20 6.52631 0 49.57224 0 1 0 -49.57224 0 6.52631 48\1-16edge.dat
1 16 0 0 20 6.52631 0 49.57224 0 -4.8 0 -49.57224 0 6.52631 48\1-16cyli.dat
4 16 6.526 -4.8 -29.572 4.23 -4.8 -29.723 4.23 0 -29.723 6.526 0 -29.572
2 24 4.23 0 -29.723 6.526 0 -29.572
5 24 6.526 -4.8 -29.572 6.526 0 -29.572 4.23 -4.8 -29.723 12.939 -4.8 -28.294
1 16 30 -4 -20 -8 0 0 0 -1 0 0 0 8 1-8tndis.dat
1 16 30 -4 -20 0 0 -8 0 -1 0 8 0 0 1-8tndis.dat
4 16 22 -4 -20 22 -4 -22 20 -4 -23 20 -4 -13
4 16 22 -4 -14.343 20 -4 -13 23 -4 -13 24.343 -4 -14.343
4 16 24.343 -4 -14.343 23 -4 -13 23 -4 -10 24.343 -4 -12
4 16 30 -4 -12 24.343 -4 -12 23 -4 -10 35.8 -4 -10
3 16 35.8 -4 -10 34 -4 -12 30 -4 -12
3 16 22 -4 -20 20 -4 -13 22 -4 -14.343
1 16 21.5 -2 -13 1.5 0 0 0 0 -2 0 1 0 rect.dat
1 16 20 -2 -18 0 -1 0 -2 0 0 0 0 -5 rect3.dat
1 16 29.4 -2 -10 6.4 0 0 0 0 -2 0 1 0 rect.dat
1 16 23 -2 -11.5 0 -1 0 0 0 -2 1.5 0 0 rect2p.dat
1 16 32 -2 -12 0 0 2 -2 0 0 0 -1 0 rect3.dat
1 16 34.9 -2 -11 -.9 1 0 0 0 -2 -1 0 0 rect2p.dat
1 16 21 -2 -22.5 0 0 1 -2 0 0 0 -1 .5 rect3.dat
1 16 22 -2 -21 0 1 0 0 0 -2 -1 0 0 rect2p.dat
4 16 32.988 0 -14.187 30 0 -14 30 0 -12 34 0 -12
4 16 35.358 0 -15.357 32.988 0 -14.187 34 0 -12 35.8 0 -10
3 16 35.358 0 -15.357 35.8 0 -10 40.002 0 -10.062
4 16 22 0 -22 22 0 -20 24 0 -20 24.457 0 -22.296
4 16 22 0 -22 24.457 0 -22.296 25.001 0 -23.302 20 0 -23
1 16 0 0 20 6.52631 0 49.57224 0 -1 0 -49.57224 0 6.52631 48\1-16chrd.dat
5 24 24.457 0 -22.296 24.457 -4.8 -22.296 25 -4.8 -23.301 24 -4.8 -20
3 16 6.526 0 -29.572 16.8 0 -26 25.001 0 -23.302
3 16 16.8 0 -26 20 0 -23 25.001 0 -23.302
4 16 20 0 -23 16.8 0 -26 16.8 0 -14 20 0 -13
4 16 6.526 0 -29.572 4.23 0 -29.723 3.5 0 -29 16.8 0 -26
3 16 3.5 0 -29 0 0 -29 16.8 0 -26
3 16 36 -24 8.5 35.748 -24 8.252 38.304 -24 5.696
2 24 40.002 0 -10.062 40 0 10
2 24 40 0 10 40 -22.5 10
1 16 40 -22.5 8.5 0 -4 0 -1.5 0 0 0 0 1.5 8\1-4cylo.dat
2 24 40 -24 7.632 40 -24 8.5
4 16 38.301 -24 5.699 40 -24 7.632 40 -24 8.5 36 -24 8.5
1 16 40 -22.5 8.5 0 -1 0 -1.5 0 0 0 0 1.5 8\1-4chrd.dat
1 16 36 -22.5 8.5 0 1 0 -1.5 0 0 0 0 1.5 8\1-4chrd.dat
4 16 40 -22.5 10 40 -24 8.5 40 -24 7.632 40 0 10
4 16 40.002 0 -10.062 40 0 10 40 -24 7.632 40.002 -4.8 -10.062
2 24 30.778 -23 3.889 35.748 -23 8.252
1 16 35.874 -23.5 8.376 0 0 .1261 -.5 0 0 0 -1 .1239 rect3.dat
2 24 36 -8 10 36 -22.5 10
4 16 36 -8 10 36 -22.5 10 40 -22.5 10 40 0 10
1 16 33.784 -15.5 -2.694 0 0 2.2163 -7.5 -1 0 7.5 0 1.94575 rect3.dat
4 16 30.778 -23 3.889 35.748 -23 8.252 36 -23 6.752 31.567 -23 2.861
3 16 36 -23 6.752 35.748 -23 8.252 36 -23 8.5
4 16 36 -24 8.5 36 -22.5 10 36 -8 10 36 -23 8.5
2 24 36 -23 8.5 36 -23 6.752
4 16 36 -23 6.752 36 -23 8.5 36 -8 10 36 -8 -8.248
2 24 36 -8 10 36 -8 -8.248
4 16 20 -8 -10 0 -8 -22.852 31.567 -8 -12.139 36 -8 -8.248
2 24 27.787 -8 4.343 28.8 -8 6
2 24 24 -8 1.3 25.657 -8 2.213
2 24 25.657 -8 2.213 27.787 -8 4.343
2 24 20 -8 .375 24 -8 1.3
2 24 28.8 -8 6 29.7 -8 10
2 24 29.7 -8 10 36 -8 10
2 24 20 -8 -10 20 -8 .375
4 16 24 -8 1.3 20 -8 .375 20 -8 -10 36 -8 -8.248
4 16 36 -8 10 29.7 -8 10 28.8 -8 6 36 -8 -8.248
3 16 28.8 -8 6 27.787 -8 4.343 36 -8 -8.248
3 16 36 -8 -8.248 27.787 -8 4.343 25.657 -8 2.213
3 16 36 -8 -8.248 25.657 -8 2.213 24 -8 1.3
2 24 27.787 -4.8 4.343 28.8 -4.8 6
2 24 24 -4.8 1.3 25.657 -4.8 2.213
2 24 25.657 -4.8 2.213 27.787 -4.8 4.343
0 BFC INVERTNEXT
1 16 30 -2.4 0 0 6 0 2.4 0 0 0 0 -6 box2-5.dat
1 16 24 -1.5 -.2 0 -4 0 1.5 0 0 0 -.9 1.5 8\1-4cylo.dat
1 16 31.2 -1.5 10 0 -.9 -1.5 1.5 0 0 0 -4 0 8\1-4cylo.dat
5 24 28.8 -8 6 28.8 -4.8 6 29.7 -8 10 27.787 -8 4.343
5 24 24 -8 1.3 24 -4.8 1.3 25.657 -8 2.213 20 -8 .375
4 16 25.657 -8 2.213 27.787 -8 4.343 27.787 -4.8 4.343 25.657 -4.8 2.213
4 16 27.787 -8 4.343 28.8 -8 6 28.8 -4.8 6 27.787 -4.8 4.343
4 16 24 -8 1.3 25.657 -8 2.213 25.657 -4.8 2.213 24 -4.8 1.3
5 24 25.657 -8 2.213 25.657 -4.8 2.213 27.787 -8 4.343 24 -8 1.3
5 24 27.787 -8 4.343 27.787 -4.8 4.343 28.8 -8 6 25.657 -8 2.213
2 24 28.8 -4.8 6 28.8 -1.5 6
2 24 24 -4.8 1.3 24 -1.5 1.3
3 16 20 -8 .375 24 -8 1.3 24 -4.8 1.3
3 16 28.8 -4.8 6 28.8 -8 6 29.7 -8 10
2 24 20 -8 .375 20 -1.5 .4
4 16 20 -1.5 .4 20 -8 .375 24 -4.8 1.3 24 -1.5 1.3
4 16 28.8 -4.8 6 29.7 -8 10 29.7 -1.5 10 28.8 -1.5 6
2 24 29.7 -1.5 10 29.7 -8 10
2 24 20 -8 .4 24 -8 1.3
1 16 24 -1.5 -.2 0 -1 0 1.5 0 0 0 0 1.5 8\1-4chrd.dat
1 16 31.2 -1.5 10 0 0 -1.5 1.5 0 0 0 -1 0 8\1-4chrd.dat
1 16 20 -1.5 -1.1 0 1 0 1.5 0 0 0 0 1.5 8\1-4chrd.dat
1 16 30.3 -1.5 6 0 0 -1.5 1.5 0 0 0 1 0 8\1-4chrd.dat
2 24 28.8 -4.8 6 36 -4.8 6
2 24 30.3 0 6 36 0 6
2 24 31.2 0 10 40 0 10
4 16 36 0 6 30.3 0 6 31.2 0 10 40 0 10
4 16 36 -4.8 6 28.8 -4.8 6 28.8 -1.5 6 36 0 6
3 16 28.8 -1.5 6 30.3 0 6 36 0 6
3 16 31.2 0 10 29.7 -1.5 10 29.7 -8 10
4 16 31.2 0 10 29.7 -8 10 36 -8 10 40 0 10
4 16 36 0 -6 36 0 6 40 0 10 40.002 0 -10.062
4 16 24 0 -6 36 0 -6 35.8 0 -10 23 0 -10
3 16 35.8 0 -10 36 0 -6 40.002 0 -10.062
4 16 28.8 -4.8 6 36 -4.8 6 36 -4.8 -6 24 -4.8 -6
3 16 27.787 -4.8 4.343 28.8 -4.8 6 24 -4.8 -6
3 16 27.787 -4.8 4.343 24 -4.8 -6 25.657 -4.8 2.213
3 16 25.657 -4.8 2.213 24 -4.8 -6 24 -4.8 1.3
3 16 24 0 -.2 24 -1.5 1.3 24 -4.8 1.3
2 24 24 -4.8 1.3 24 -4.8 -6
2 24 24 0 -.2 24 0 -6
4 16 24 -4.8 1.3 24 -4.8 -6 24 0 -6 24 0 -.2
4 16 23 0 -13 20 0 -13 20 0 -10 23 0 -10
4 16 20 0 -1.1 24 0 -.2 23 0 -10 20 0 -10
3 16 24 0 -6 23 0 -10 24 0 -.2
3 16 20 0 -10 20 0 -13 16.8 0 -14
4 16 20 0 -10 20 -8 -10 20 -8 .375 20 -1.5 .4
3 16 20 -1.5 .4 20 0 -1.1 20 0 -10
2 24 20 0 -10 20 0 -1.1
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
Further subfiled for patterned version
Rearranged subs and geometry
2024-10-12 08:51:27
2024-10-12 10:31:57
Creative Commons Attribution License information
This part is copyright © Willy Tschager
Licensed under CC BY 4.0
