Unofficial File parts/s/u9588s01.dat
File Header:

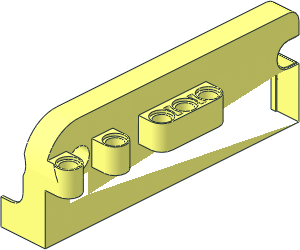

0 ~Electric Powered Up Hub with 3 Integrated Motors and 6 Lights Case Side Common Geometry
0 Name: s\u9588s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 -60 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 beamhole.dat
1 16 0 0 20 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 -10 20 0 0 9 0 20 0 9 0 0 1-4cylo.dat
1 16 -5.5 0 29 0 0 -5.5 10 0 0 0 -1 0 rect3.dat
1 16 0 -10 -20 0 0 9 0 20 0 -9 0 0 1-4cylo.dat
1 16 -5.5 0 -29 0 0 -5.5 10 0 0 0 1 0 rect3.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -10 20 0 0 -9 0 1 0 9 0 0 1-4ndis.dat
1 16 0 -10 -20 0 0 -9 0 1 0 -9 0 0 1-4ndis.dat
1 16 -10 -10 0 -1 0 0 0 1 0 0 0 -29 rect1.dat
1 16 0 10 20 0 0 -9 0 -1 0 9 0 0 1-4ndis.dat
1 16 0 10 -20 0 0 -9 0 -1 0 -9 0 0 1-4ndis.dat
1 16 -10 10 0 -1 0 0 0 -1 0 0 0 29 rect1.dat
1 16 9 0 0 0 -1 0 0 0 10 -20 0 0 rect2p.dat
1 16 0 -10 -60 0 0 9 0 20 0 9 0 0 2-4cylo.dat
1 16 -5.5 0 -51 0 0 -5.5 10 0 0 0 -1 0 rect3.dat
1 16 0 -10 -60 0 0 -9 0 1 0 9 0 0 2-4ndis.dat
1 16 0 10 -60 0 0 -9 0 -1 0 9 0 0 2-4ndis.dat
1 16 -5.5 0 -69 0 0 -5.5 10 0 0 0 1 0 rect3.dat
1 16 -10 -10 -60 -1 0 0 0 1 0 0 0 -9 rect1.dat
1 16 -10 10 -60 -1 0 0 0 -1 0 0 0 9 rect1.dat
0 BFC INVERTNEXT
1 16 -11 0 -80 0 -20 0 0 0 9 9 0 0 4-4cylo.dat
1 16 -11 0 -80 0 -1 0 0 0 9 9 0 0 4-4ndis.dat
1 16 -30 0 -80 0 19 0 -29 0 0 0 0 -29 48\3-16cylo.dat
2 24 -11 10 -91 -11 -10 -91
2 24 -11 10 -91 0 10 -91
2 24 -11 -10 -91 0 -10 -91
1 16 0 -10 -100 0 0 9 0 10 0 -9 0 0 2-4cyli.dat
1 16 0 -10 -100 0 0 9 0 1 0 -9 0 0 2-4edge.dat
1 16 0 10 -100 0 0 9 0 -10 0 -9 0 0 2-4cyli.dat
1 16 0 10 -100 0 0 9 0 -1 0 -9 0 0 2-4edge.dat
3 16 0 -10 -91 0 0 -91 -11 -10 -91
4 16 -11 -10 -91 0 0 -91 0 10 -91 -11 10 -91
1 16 0 -10 -100 0 0 -8 0 1 0 8 0 0 1-4ndis.dat
1 16 0 0 -100 1 0 0 0 -1 0 0 0 1 connhol3.dat
1 16 0 -8 -100 2 0 0 0 1 0 0 0 2 4-4ring3.dat
0 BFC INVERTNEXT
1 16 0 -10 -100 8 0 0 0 2 0 0 0 8 4-4cylo.dat
1 16 0 -10 -100 0 0 1 0 1 0 -1 0 0 2-4ring8.dat
2 24 -4.0602 -7.5052 -108.0111 -2.0399 -3.7845 -108.7506
2 24 -2.0399 -3.7845 -108.7506 0 0 -109
2 24 -4.0602 -7.5052 -108.0111 -5.442 -10 -107.1654
2 24 -4.0602 -10 -108.0111 -2.0399 -10 -108.7506
2 24 -2.0399 -10 -108.7506 0 -10 -109
2 24 -4.0602 -10 -108.0111 -5.442 -10 -107.1654
2 24 -11 -11.0983 -106.7931 -11 -10 -107.1654
2 24 -11 -10 -107.1654 -5.442 -10 -107.1654
2 24 -30 -11.0983 -106.7931 -30 -7.5052 -108.0111
4 16 -28.3232 -3.7845 -108.7506 -27.7 0 -109 0 0 -109 -2.0399 -3.7845 -108.7506
4 16 -30 -7.5052 -108.0111 -28.3232 -3.7845 -108.7506 -2.0399 -3.7845 -108.7506 -4.0602 -7.5052 -108.0111
4 16 -11 -11.0983 -106.7931 -30 -11.0983 -106.7931 -30 -7.5052 -108.0111 -11 -10 -107.1654
4 16 -11 -10 -107.1654 -30 -7.5052 -108.0111 -4.0602 -7.5052 -108.0111 -5.442 -10 -107.1654
3 16 -4.0602 -10 -108.0111 -5.442 -10 -107.1654 -4.0602 -7.5052 -108.0111
4 16 -2.0399 -10 -108.7506 -4.0602 -10 -108.0111 -4.0602 -7.5052 -108.0111 -2.0399 -3.7845 -108.7506
4 16 0 -10 -109 -2.0399 -10 -108.7506 -2.0399 -3.7845 -108.7506 0 0 -109
1 16 0 -10 -100 0 0 -8 0 1 0 -8 0 0 1-8tang.dat
1 16 0 -10 -100 -8 0 0 0 1 0 0 0 -8 1-8tndis.dat
2 24 -11 -10 -91 -11 -10 -107.1654
4 16 -11 -10 -91 -8 -10 -92 0 -10 -92 0 -10 -91
4 16 -8 -10 -92 -11 -10 -91 -11 -10 -107.1654 -8 -10 -105.6568
4 16 -5.6568 -10 -105.6568 -8 -10 -105.6568 -11 -10 -107.1654 -5.442 -10 -107.1654
4 16 -4.532 -10 -106.7824 -5.6568 -10 -105.6568 -5.442 -10 -107.1654 -4.0602 -10 -108.0111
4 16 -3.0616 -10 -107.3912 -4.532 -10 -106.7824 -4.0602 -10 -108.0111 -2.0399 -10 -108.7506
2 24 -28.3232 -3.7845 -108.7506 -27.7 0 -109
2 24 -30 -7.5052 -108.0111 -28.3232 -3.7845 -108.7506
1 16 -11 0 -80 0 -1 0 -29 0 0 0 0 -29 48\3-16chrd.dat
2 24 -30 7.5052 -109 -30 20 -109
2 24 -27.7 0 -109 -28.3232 3.7845 -109
2 24 -28.3232 3.7845 -109 -30 7.5052 -109
4 16 0 0 -109 -27.7 0 -109 -28.3232 3.7845 -109 0 10 -109
4 16 -28.3232 3.7845 -109 -30 7.5052 -109 -11 10 -109 0 10 -109
2 24 -11 10 -109 0 10 -109
5 24 -2.0399 -10 -108.7506 -2.0399 -3.7845 -108.7506 -4.0602 -10 -108.0111 0 0 -109
5 24 -4.0602 -7.5052 -108.0111 -4.0602 -10 -108.0111 -5.442 -10 -107.1654 -2.0399 -3.7845 -108.7506
5 24 -28.3232 -3.7845 -108.7506 -2.0399 -3.7845 -108.7506 -27.7 0 -109 -4.0602 -7.5052 -108.0111
5 24 -27.7 0 -109 0 0 -109 -2.0399 -3.7845 -108.7506 -28.3232 3.7845 -109
5 24 -30 -7.5052 -108.0111 -4.0602 -7.5052 -108.0111 -28.3232 -3.7845 -108.7506 -5.442 -10 -107.1654
2 24 -49 51 -109 -11 51 -109
2 24 -49 30 -109 -49 51 -109
0 BFC INVERTNEXT
1 16 -40 20 -109 10 0 0 0 0 10 0 2 0 1-4cylo.dat
1 16 -40 20 -109 10 0 0 0 0 10 0 1 0 1-4ndis.dat
2 24 -49 30 -109 -40 30 -109
4 16 -30 30 -109 -49 30 -109 -49 51 -109 -11 51 -109
4 16 -30 30 -109 -11 51 -109 -11 10 -109 -30 7.5052 -109
2 24 -11 10 -109 -11 51 -109
2 24 -49 30 -107 -40 30 -107
2 24 -30 7.5052 -107 -30 20 -107
2 24 -49 30 -109 -49 30 -107
2 24 -30 7.5052 -109 -30 7.5052 -107
4 16 -30 20 -109 -30 7.5052 -109 -30 7.5052 -107 -30 20 -107
4 16 -49 30 -107 -49 30 -109 -40 30 -109 -40 30 -107
1 16 -11 -20 100 0 -19 0 0 0 -9 9 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 0 100 0 -1 0 10 0 0 0 0 -10 2-4cylo.dat
1 16 -12 0 100 0 -1 0 1 0 0 0 0 -1 2-4ring9.dat
1 16 -12 0 100 0 -1 0 9 0 0 0 0 -9 2-4edge.dat
1 16 -11 0 100 0 -1 0 10 0 0 0 0 -10 2-4ndis.dat
2 24 -11 -10 100 -11 -10 109
1 16 -11 -20 100 0 -1 0 0 0 -9 9 0 0 1-4chrd.dat
4 16 -11 -10 109 -11 -20 109 -11 -29 100 -11 -10 90
4 16 -11 -11.0983 -106.7931 -11 -10 -107.1654 -11 -10 -91 -11 -29 -80
4 16 -11 -29 -80 -11 -10 -91 -11 -9 -89 -11 -9 -71
4 16 -11 -29 -80 -11 -9 -71 -11 -10 90 -11 -29 100
4 16 -11 9 -71 -11 10 90 -11 -10 90 -11 -9 -71
4 16 -11 12 -72 -11 9 -71 -11 9 -89 -11 12 -88
4 16 -11 9 -89 -11 -9 -89 -11 -10 -91 -11 10 -91
1 16 0 10 -100 0 0 -9 0 -1 0 9 0 0 2-4ndis.dat
1 16 -10 10 -100 -1 0 0 0 -1 0 0 0 9 rect1.dat
4 16 -11 9 -89 -11 10 -91 -11 28 -88 -11 12 -88
4 16 -11 28 -88 -11 10 -91 -11 10 -109 -11 51 -109
4 16 -11 9 -71 -11 12 -72 -11 28 -72 -11 10 90
2 24 -11 51 109 -11 51 -109
4 16 -11 51 109 -11 28 -72 -11 28 -88 -11 51 -109
2 24 -11 10 109 -11 51 109
2 24 -30 -27.0666 -80 -30 -27.0667 100
4 16 -12 -10 100 -12 -10 108 -11 -10 109 -11 -10 100
5 24 -30 -29 -80 -11 -29 -80 -30 -28.7506 -83.7845 -30 -29 -51
5 24 -11 -20 109 -30 -20 109 -11 -23.4443 108.3151 -11 -11 109
5 24 -11 -29 100 -30 -29 100 -11 -28.3151 103.4443 -11 -29 91
5 24 -12 10 100 -11 10 100 -12 10 104.142 -12 9.239 96.173
1 16 -20.5 -29 10 0 0 9.5 0 1 0 -90 0 0 rect2p.dat
2 24 -11 10 100 -11 10 109
2 24 -12 10 108 -12 9 108
2 24 -12 10 108 -12 10 100
2 24 -12 9 108 -12 9 100
4 16 -12 9 108 -12 9 100 -12 10 100 -12 10 108
4 16 -11 10 109 -12 10 108 -12 10 100 -11 10 100
1 16 -12 -9.5 104 0 -1 0 0.5 0 0 0 0 4 rect3.dat
4 16 -11 -10 109 -12 -10 108 -30 -10 108 -30 -10 109
2 24 -30 -10 108 -30 -10 109
1 16 -21 -9.5 108 0 0 -9 0.5 0 0 0 -1 0 rect3.dat
1 16 -20.5 -15 109 9.5 0 0 0 0 5 0 -1 0 rect3.dat
1 16 -30 0 -80 0 1 0 -27.06667 0 0 0 0 -27.06667 48\3-16edge.dat
1 16 -30 0 -80 0 1 0 -1.93333 0 0 0 0 -1.93333 48\3-16ring14.dat
1 16 -30 -20 100 0 1 0 0 0 -7.0667 7 0 0 1-4edge.dat
1 16 -30 -20 100 0 1 0 -7.0667 0 0 0 0 7 1-4tang.dat
1 16 -30 -20 100 0 1 0 0 0 -9 9 0 0 1-8chrd.dat
1 16 -30 -20 100 0 1 0 -9 0 0 0 0 9 1-8chrd.dat
3 16 -30 -27.0667 100 -30 -29 100 -30 -27.0667 101.3923
4 16 -30 -26.5289 102.6789 -30 -27.0667 101.3923 -30 -29 100 -30 -26.3639 106.3639
4 16 -30 -22.7044 106.4673 -30 -24.0033 105.9346 -30 -26.3639 106.3639 -30 -20 109
3 16 -30 -24.9969 104.9497 -30 -26.3639 106.3639 -30 -24.0033 105.9346
3 16 -30 -26.3639 106.3639 -30 -24.9969 104.9497 -30 -25.9911 103.9655
3 16 -30 -26.3639 106.3639 -30 -25.9911 103.9655 -30 -26.5289 102.6789
3 16 -30 -21.4056 107 -30 -22.7044 106.4673 -30 -20 109
3 16 -30 -21.4056 107 -30 -20 109 -30 -20 107
4 16 -30 -29 -80 -30 -29 100 -30 -27.0667 100 -30 -27.0667 -80
2 24 -30 -9 107 -30 -9 108
2 24 -30 -20 107 -30 -9 107
4 16 -30 -10 108 -30 -20 107 -30 -20 109 -30 -10 109
4 16 -30 -9 107 -30 -20 107 -30 -10 108 -30 -9 108
2 24 -28.3232 -3.5322 -106.8339 -27.7 -0.0008 -107
2 24 -30 -7.0049 -106.1437 -28.3232 -3.5322 -106.8339
2 24 -27.7 -0.0008 -107 -28.3232 3.7845 -107
2 24 -28.3232 3.7845 -107 -30 7.5052 -107
2 24 -30 -10.3584 -105.0069 -30 -7.0049 -106.1437
2 24 -30 -7.5052 -108.0111 -30 -7.0049 -106.1437
4 16 -30 -7.5052 -108.0111 -30 -11.0983 -106.7931 -30 -10.3584 -105.0069 -30 -7.0049 -106.1437
3 16 -28.3232 -3.7845 -108.7506 -30 -7.5052 -108.0111 -30 -7.0049 -106.1437
3 16 -30 -7.0049 -106.1437 -28.3232 -3.5322 -106.8339 -28.3232 -3.7845 -108.7506
4 16 -28.3232 -3.7845 -108.7506 -28.3232 -3.5322 -106.8339 -27.7 -0.0008 -107 -27.7 0 -109
4 16 -27.7 -0.0008 -107 -28.3232 3.7845 -107 -28.3232 3.7845 -109 -27.7 0 -109
4 16 -30 7.5052 -107 -30 7.5052 -109 -28.3232 3.7845 -109 -28.3232 3.7845 -107
2 24 -49 30 -107 -49 51 -107
2 24 -49 51 -109 -49 51 -107
4 16 -49 51 -109 -49 30 -109 -49 30 -107 -49 51 -107
2 24 -34 9 108 -12 9 108
2 24 -30 10 108 -12 10 108
4 16 -30 10 108 -34 9 108 -12 9 108 -12 10 108
2 24 -11 10 109 -30 10 109
2 24 -30 10 109 -30 51 109
4 16 -30 10 109 -11 10 109 -11 51 109 -30 51 109
2 24 -11 51 109 -30 51 109
2 24 -30 10 108 -30 51 108
2 24 -34 9 108 -34 51 108
2 24 -30 51 108 -30 51 109
2 24 -30 51 108 -34 51 108
2 24 -30 10 108 -30 10 109
4 16 -30 10 108 -12 10 108 -11 10 109 -30 10 109
4 16 -30 51 108 -30 10 108 -30 10 109 -30 51 109
4 16 -30 51 108 -34 51 108 -34 9 108 -30 10 108
2 24 -29 28 109 -29 28 108
2 24 -34 9 109 -34 51 109
2 24 -34 51 108 -34 51 109
2 24 -34 9 108 -34 9 109
4 16 -34 9 108 -34 51 108 -34 51 109 -34 9 109
2 24 -31 9 108 -31 9 109
2 24 -31 9 109 -34 9 109
4 16 -31 9 108 -34 9 108 -34 9 109 -31 9 109
4 16 -31 -7 106 -31 -7 92 -31 7 92 -31 7 106
4 16 -2.0399 -10 -108.7506 0 -10 -109 0 -10 -108 -1.5912 -10 -108
3 16 -3.0616 -10 -107.3912 -2.0399 -10 -108.7506 -1.5912 -10 -108
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
This part has the following warnings
- Line 172, quad is not coplanar (angle 1.4361054039319)
Current Votes:
None
Official parents and subparts
Part Events:
2024-10-19 09:54:12
overlap at the 1-8tang
2024-10-25 09:12:20
still there
Corrected overlap
