Official File parts/47993.dat
Part Attributes:
File Header:

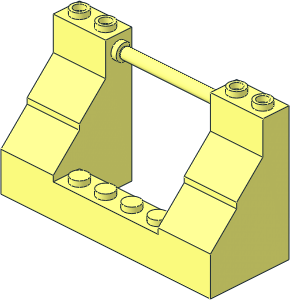

0 Brick 3 x 8 x 4 Sloped Railing
0 Name: 47993.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Boat
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
0 // Bottom
4 16 -76 96 -46 -80 96 -50 -80 96 10 -76 96 6
4 16 80 96 -50 76 96 -46 76 96 6 80 96 10
3 16 -80 96 -50 -76 96 -46 -44 96 -46
3 16 44 96 -46 76 96 -46 80 96 -50
4 16 76 96 6 44 96 6 40 96 10 80 96 10
4 16 40 96 -30 40 96 10 44 96 6 44 96 -46
4 16 -40 96 10 -44 96 6 -76 96 6 -80 96 10
4 16 -40 96 10 -40 96 -30 -44 96 -46 -44 96 6
3 16 -40 96 -34 -44 96 -46 -40 96 -30
3 16 -44 96 -46 -40 96 -34 -40 96 -46
3 16 40 96 -34 40 96 -30 44 96 -46
3 16 40 96 -34 44 96 -46 40 96 -46
4 16 40 96 -46 80 96 -50 -80 96 -50 -40 96 -46
3 16 -40 96 -46 -80 96 -50 -44 96 -46
4 16 -40 96 -34 -40 96 -30 40 96 -30 40 96 -34
3 16 40 96 -46 44 96 -46 80 96 -50
1 16 0 96 -20 80 0 0 0 1 0 0 0 -30 recte3.dat
1 16 0 96 -10 40 0 0 0 1 0 0 0 -20 recte3.dat
2 24 -40 96 10 -80 96 10
2 24 80 96 10 40 96 10
0 BFC INVERTNEXT
1 16 -60 96 -20 16 0 0 0 -20 0 0 0 26 box5.dat
0 BFC INVERTNEXT
1 16 60 96 -20 16 0 0 0 -20 0 0 0 26 box5.dat
0 BFC INVERTNEXT
1 16 0 96 -40 40 0 0 0 -20 0 0 0 6 box5.dat
1 16 -60 76 -20 0 0 1 0 -5 0 -1 0 0 stug4-1x2.dat
1 16 60 76 -20 0 0 1 0 -5 0 -1 0 0 stug4-1x2.dat
1 16 0 76 -40 -1 0 0 0 -5 0 0 0 -1 stug3-1x3.dat
1 16 -38 76 -40 0 0 2 0 19.5 0 -1.5 0 0 box4-1.dat
1 16 38 76 -40 0 0 -2 0 19.5 0 -1.5 0 0 box4-1.dat
0 // Centre Brick Bottom
1 16 0 84 -40 40 0 0 0 -12 0 0 0 10 box2-7.dat
4 16 -80 96 -50 -40 72 -50 -40 68 -50 -80 68 -50
4 16 40 68 -50 40 72 -50 80 96 -50 80 68 -50
4 16 80 96 -50 40 72 -50 -40 72 -50 -80 96 -50
1 16 0 70 -50 40 0 0 0 0 2 0 1 0 recte3.dat
2 24 -80 68 -50 -80 96 -50
2 24 -80 68 -50 -40 68 -50
2 24 40 68 -50 80 68 -50
2 24 80 68 -50 80 96 -50
1 16 0 72 -40 0 0 1 0 1 0 -1 0 0 stug-4x1.dat
0 // Side Slopes Pockets
0 BFC INVERTNEXT
1 16 -60 15 2 16 0 0 0 -11 0 0 0 -8 box2-5.dat
4 16 -76 26 -6 -44 26 -6 -44 46 -26 -76 46 -26
1 16 -60 48 -26 0 0 -16 2 0 0 0 -1 0 rect.dat
4 16 -76 50 -26 -44 50 -26 -44 70 -46 -76 70 -46
0 BFC INVERTNEXT
1 16 -60 71 -18 16 0 0 0 1 0 0 0 -28 box2-5.dat
2 24 -76 50 -26 -76 70 -46
2 24 -44 50 -26 -44 70 -46
2 24 -76 26 -6 -76 46 -26
2 24 -44 26 -6 -44 46 -26
4 16 -76 70 -46 -76 72 -46 -76 72 10 -76 50 -26
4 16 -76 46 -26 -76 50 -26 -76 72 10 -76 26 -6
4 16 -76 26 -6 -76 72 10 -76 4 10 -76 4 -6
4 16 -44 72 10 -44 72 -46 -44 70 -46 -44 50 -26
4 16 -44 72 10 -44 50 -26 -44 46 -26 -44 26 -6
4 16 -44 4 10 -44 72 10 -44 26 -6 -44 4 -6
2 24 -44 4 10 -44 72 10
2 24 -76 72 10 -76 4 10
4 16 -80 0 10 -40 0 10 -44 4 10 -76 4 10
4 16 -80 0 10 -76 4 10 -76 72 10 -80 96 10
4 16 -80 96 10 -76 72 10 -44 72 10 -40 96 10
4 16 -44 72 10 -44 4 10 -40 0 10 -40 96 10
2 24 -40 0 10 -40 96 10
2 24 -80 0 10 -80 96 10
0 BFC INVERTNEXT
1 16 60 15 2 16 0 0 0 -11 0 0 0 -8 box2-5.dat
4 16 44 26 -6 76 26 -6 76 46 -26 44 46 -26
1 16 60 48 -26 0 0 -16 2 0 0 0 -1 0 rect.dat
4 16 44 50 -26 76 50 -26 76 70 -46 44 70 -46
0 BFC INVERTNEXT
1 16 60 71 -18 16 0 0 0 1 0 0 0 -28 box2-5.dat
2 24 44 50 -26 44 70 -46
2 24 76 50 -26 76 70 -46
2 24 44 26 -6 44 46 -26
2 24 76 26 -6 76 46 -26
4 16 44 70 -46 44 72 -46 44 72 10 44 50 -26
4 16 44 46 -26 44 50 -26 44 72 10 44 26 -6
4 16 44 26 -6 44 72 10 44 4 10 44 4 -6
4 16 76 72 10 76 72 -46 76 70 -46 76 50 -26
4 16 76 72 10 76 50 -26 76 46 -26 76 26 -6
4 16 76 4 10 76 72 10 76 26 -6 76 4 -6
2 24 76 4 10 76 72 10
2 24 44 72 10 44 4 10
4 16 40 0 10 80 0 10 76 4 10 44 4 10
4 16 40 0 10 44 4 10 44 72 10 40 96 10
4 16 40 96 10 44 72 10 76 72 10 80 96 10
4 16 76 72 10 76 4 10 80 0 10 80 96 10
2 24 80 0 10 80 96 10
2 24 40 0 10 40 96 10
0 // Side Slopes Outsides
1 16 -60 12 0 20 0 0 0 -12 0 0 0 -10 box2-5.dat
4 16 -40 44 -30 -40 24 -10 -80 24 -10 -80 44 -30
1 16 -60 46 -30 0 0 -20 2 0 0 0 1 0 rect.dat
4 16 -40 68 -50 -40 48 -30 -80 48 -30 -80 68 -50
2 24 -80 48 -30 -80 68 -50
2 24 -80 44 -30 -80 24 -10
2 24 -40 24 -10 -40 44 -30
2 24 -40 48 -30 -40 68 -50
4 16 -80 24 -10 -80 0 -10 -80 0 10 -80 96 10
4 16 -80 44 -30 -80 24 -10 -80 96 10 -80 48 -30
4 16 -80 68 -50 -80 48 -30 -80 96 10 -80 96 -50
4 16 -40 68 -50 -40 72 -50 -40 72 -30 -40 48 -30
4 16 -40 0 10 -40 0 -10 -40 24 -10 -40 96 10
3 16 -40 44 -30 -40 48 -30 -40 24 -10
3 16 -40 72 -30 -40 96 -30 -40 96 10
4 16 -40 48 -30 -40 72 -30 -40 96 10 -40 24 -10
1 16 -60 0 0 0 0 1 0 1 0 -1 0 0 stug2-2x1.dat
1 16 60 12 0 -20 0 0 0 -12 0 0 0 -10 box2-5.dat
4 16 80 24 -10 40 24 -10 40 44 -30 80 44 -30
1 16 60 46 -30 0 0 20 2 0 0 0 1 0 rect.dat
4 16 80 48 -30 40 48 -30 40 68 -50 80 68 -50
2 24 80 68 -50 80 48 -30
2 24 80 24 -10 80 44 -30
2 24 40 44 -30 40 24 -10
2 24 40 68 -50 40 48 -30
4 16 80 0 10 80 0 -10 80 24 -10 80 96 10
4 16 80 96 10 80 24 -10 80 44 -30 80 48 -30
4 16 80 96 10 80 48 -30 80 68 -50 80 96 -50
4 16 40 72 -30 40 72 -50 40 68 -50 40 48 -30
4 16 40 24 -10 40 0 -10 40 0 10 40 96 10
3 16 40 48 -30 40 44 -30 40 24 -10
3 16 40 96 -30 40 72 -30 40 96 10
4 16 40 96 10 40 72 -30 40 48 -30 40 24 -10
1 16 60 0 0 0 0 1 0 1 0 -1 0 0 stug2-2x1.dat
0 // Bar
1 16 -36 10 0 0 -4 0 0 0 6 -6 0 0 3-8cylc.dat
1 16 -36 10 0 0 -4 0 0 0 -6 -6 0 0 3-8cylc.dat
4 16 -40 14.2426 4.2426 -40 5.7574 4.2426 -36 5.7574 4.2426 -36 14.2426 4.2426
2 24 -40 5.7574 4.2426 -36 5.7574 4.2426
2 24 -36 5.7574 4.2426 -36 14.2426 4.2426
2 24 -36 14.2426 4.2426 -40 14.2426 4.2426
2 24 -40 5.7574 4.2426 -40 14.2426 4.2426
3 16 -36 5.7574 4.2426 -36 10 0 -36 14.2426 4.2426
1 16 -35 10 0 0 -1 0 3.5 0 0 0 0 3.5 4-4cylo.dat
1 16 -35 10 0 0 70 0 4 0 0 0 0 4 4-4cylc.dat
1 16 35 10 0 0 -1 0 4 0 0 0 0 4 4-4disc.dat
1 16 35 10 0 0 1 0 3.5 0 0 0 0 3.5 4-4cylo.dat
1 16 36 10 0 0 4 0 0 0 6 -6 0 0 3-8cylc.dat
1 16 36 10 0 0 4 0 0 0 -6 -6 0 0 3-8cylc.dat
4 16 36 5.7574 4.2426 40 5.7574 4.2426 40 14.2426 4.2426 36 14.2426 4.2426
2 24 36 5.7574 4.2426 40 5.7574 4.2426
2 24 36 14.2426 4.2426 36 5.7574 4.2426
2 24 40 14.2426 4.2426 36 14.2426 4.2426
2 24 40 14.2426 4.2426 40 5.7574 4.2426
3 16 36 10 0 36 5.7574 4.2426 36 14.2426 4.2426
