Unofficial File parts/6228775v.dat
Part Attributes:
File Header:

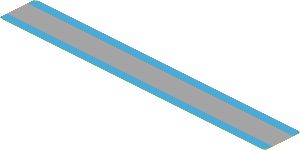

0 Sticker 0.8 x 5.8 with Light Bluish Grey Stripe on Dark Azure Background
0 Name: 6228775v.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 42083stk01, Bugatti Chiron, Lego Technic
0 !KEYWORDS Rebrickable 38973, set 42083
0 !HISTORY 2025-08-02 [jb70] Using stickerback subfile
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x058.dat
0 // Sticker-Front
1 321 -56.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 321 56.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 321 -56.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 321 56.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
4 321 58 -.25 6.5 -58 -.25 6.5 -58 -.25 4.5 58 -.25 4.5
4 321 58 -.25 -6.5 58 -.25 -4.5 -58 -.25 -4.5 -58 -.25 -6.5
4 321 58 -.25 -6.5 -58 -.25 -6.5 -56.5 -.25 -8 56.5 -.25 -8
4 321 58 -.25 6.5 56.5 -.25 8 -56.5 -.25 8 -58 -.25 6.5
4 71 58 -.25 4.5 -58 -.25 4.5 -58 -.25 -4.5 58 -.25 -4.5
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2024-10-20 20:56:27
2024-10-21 16:29:48
"parts/6228775a.dat" to "parts/6228775v.dat"
Wrong blue used. The parts in this set are Dark Azure or Dark Blue.
Australian spelling of all word is always used. Gray has to be Grey.
On the sticker sheet this sticker is marked as number 22. Then it should use the code letter v, since v is the twentysecond letter in the alphabet.
Australian spelling of all word is always used. Gray has to be Grey.
On the sticker sheet this sticker is marked as number 22. Then it should use the code letter v, since v is the twentysecond letter in the alphabet.
2024-10-21 20:18:20
I think I have corrected all stickers now, except this one.
You need to use the correct code letter, according to the sticker sheet.
You need to use the correct code letter, according to the sticker sheet.
please use 1-4chrd.dat at the top
and a vertex mismatch causes a gap between the 2 long triangles at the top (should get fixed and merged)
and a vertex mismatch causes a gap between the 2 long triangles at the top (should get fixed and merged)
2024-10-21 20:48:20
Why are those triangles not joined as a quad?
2024-10-21 21:23:44
@Magnus:
- Color changed to dark azure.
- Deeply sorry for all the code letters mistakes. I’m aware of the code letters. I’ve read the specification carefully. Just forgot that to change it in some of the stickers. Thanks you very much for correcting.
@Rene:
- Changed to 1-4chrd primitves (strange in LDPC I’ve used those primites).
@Rene & Magnus:
Vertex mismatch gap closed and I’ve used a quad instead.
@Rene
I’m using the the dropbox stickers from you, Gerald and Stephan (Links from Tchang). Thanke nevertheless.
- Color changed to dark azure.
- Deeply sorry for all the code letters mistakes. I’m aware of the code letters. I’ve read the specification carefully. Just forgot that to change it in some of the stickers. Thanks you very much for correcting.
@Rene:
- Changed to 1-4chrd primitves (strange in LDPC I’ve used those primites).
@Rene & Magnus:
Vertex mismatch gap closed and I’ve used a quad instead.
@Rene
I’m using the the dropbox stickers from you, Gerald and Stephan (Links from Tchang). Thanke nevertheless.
Forgot to adapt the description (Dark Azure instead of Blue)
2024-10-22 22:06:42
No worries about the letters and no need to apologize. It's an easy fix and this is how we learn.
As I said above:
Australian spelling of all word is always used. Gray has to be Grey. And here it need to be "Light Bluish Grey".
Australian spelling of all word is always used. Gray has to be Grey. And here it need to be "Light Bluish Grey".
Edited Description.
I used a new stickerback subfile and changed size from 0.9 x 5.9 to 0.8 x 5.8.
