Unofficial File parts/6037768s.dat
Part Attributes:
File Header:
0 Sticker 0.9 x 5.9 with Black Stripe on Yellow Background
0 Name: 6037768s.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 42009stk01, Brickowl 509086, Lego Technic
0 !KEYWORDS Mobile Crane Mk II, Rebrickable 14262, Set 42009
Show contents
0 // Sticker-Bottom
1 16 -58 0 -7 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 -58 0 7 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat
1 16 58 0 -7 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 58 0 7 1 0 0 0 -1 0 0 0 1 1-4chrd.dat
4 16 58 0 8 58 0 -8 -58 0 -8 -58 0 8
4 16 58 0 8 59 0 7 59 0 -7 58 0 -8
4 16 -59 0 -7 -59 0 7 -58 0 8 -58 0 -8
0 // Sticker-Side
1 16 58 -.25 7 1 0 0 0 .25 0 0 0 1 1-4cyli.dat
1 16 58 -.25 -7 0 0 1 0 .25 0 -1 0 0 1-4cyli.dat
1 16 -58 -.25 -7 -1 0 0 0 .25 0 0 0 -1 1-4cyli.dat
1 16 -58 -.25 7 0 0 -1 0 .25 0 1 0 0 1-4cyli.dat
4 16 -58 -.25 8 58 -.25 8 58 0 8 -58 0 8
4 16 -59 -.25 -7 -59 -.25 7 -59 0 7 -59 0 -7
4 16 58 -.25 -8 -58 -.25 -8 -58 0 -8 58 0 -8
4 16 59 -.25 7 59 -.25 -7 59 0 -7 59 0 7
0 // Sticker-Front
1 14 -58 -.25 7 -1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 14 -58 -.25 -7 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 14 58 -.25 -7 1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 14 58 -.25 7 1 0 0 0 1 0 0 0 1 1-4chrd.dat
4 0 59 -.25 -4.5 59 -.25 4.5 -59 -.25 4.5 -59 -.25 -4.5
4 14 58 -.25 8 -58 -.25 8 -59 -.25 7 59 -.25 7
4 14 -59 -.25 -7 -58 -.25 -8 58 -.25 -8 59 -.25 -7
4 14 59 -.25 7 -59 -.25 7 -59 -.25 4.5 59 -.25 4.5
4 14 59 -.25 -4.5 -59 -.25 -4.5 -59 -.25 -7 59 -.25 -7
Status:
Errors Found (CCHN)
Current Votes:
| User | Vote |
|---|---|
| OrionP | Hold |
| GeraldLasser | Certify |
| Blechtaler | Certify |
Official parents and subparts
Part Events:
2024-10-20 21:04:07
2024-10-21 19:28:31
"parts/6037768a.dat" to "parts/6037768s.dat"

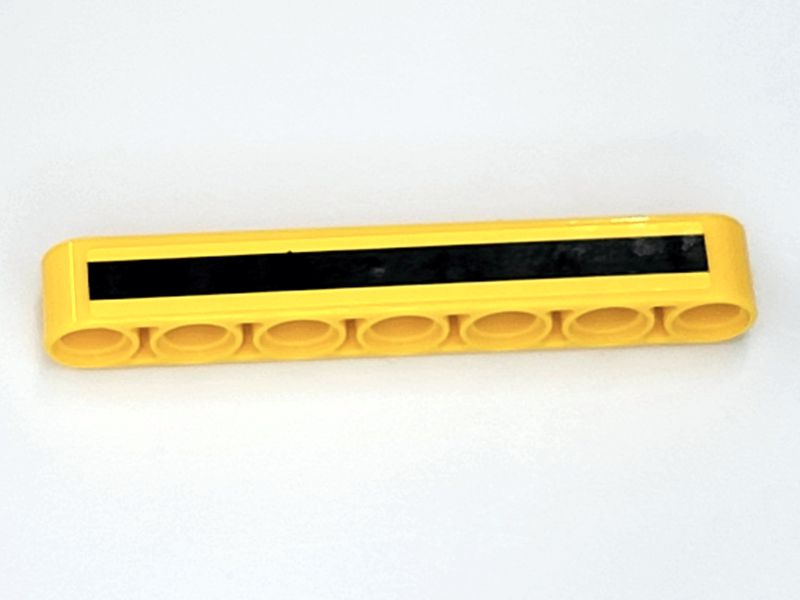

Indeed, the black stripe is wider and, of course, not tapered. In the high-resolution scans from Rene R., the stripe is placed slightly asymmetrical with respect to the cutlines. I’ve placed the stripe symmetrically. Not sure what is right.
if you mean this scan:
https://www.dropbox.com/scl/fo/q5reyjthu95d7ji6580h9/ACsZST1AuEGG0LpepI61ckc?dl=0&e=1&preview=14262-6037768.jpg&rlkey=5ifgso3r5k2bvng9vu0wmlmwo&st=gqf9c4da
yes the lego print isnt perfect...
but try to do these stickers as ideal as possible (symmetric, clear borders, straight, "ideal" values)
so your part is good now.
https://www.dropbox.com/scl/fo/q5reyjthu95d7ji6580h9/ACsZST1AuEGG0LpepI61ckc?dl=0&e=1&preview=14262-6037768.jpg&rlkey=5ifgso3r5k2bvng9vu0wmlmwo&st=gqf9c4da
yes the lego print isnt perfect...
but try to do these stickers as ideal as possible (symmetric, clear borders, straight, "ideal" values)
so your part is good now.
2025-05-24 17:44:16
Needs a sticker back file. Corners not 1.5 ldu
