Unofficial File parts/s/87080s05.dat
File Header:

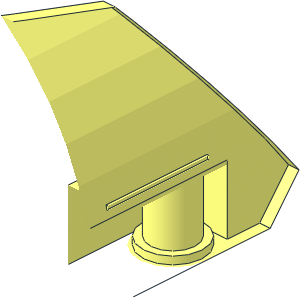

0 ~Technic Panel Fairing Smooth #1 (Short) without Side Face
0 Name: s\87080s05.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-10-20 [jb70] subfiled from 87080.dat by [Philo]
0 !HISTORY 2024-10-20 [jb70] flattened primitives
Show contents
2 24 6.075 -8 31 6.075 -8 69
4 16 6.075 -8.558 31 6.075 -8.558 69 6.075 -7 69 6.075 -7 31
4 16 6.075 0 69 6.075 0 86 6.075 10 78 6.075 10 69
4 16 -9 -8 40 -9 -8 60 -9 10 60 -9 10 40
4 16 6.075 10 69 0 10 69 0 -8 69 6.075 -8 69
4 16 6 -8 46 6 -8 54 -6 -8 54 -6 -8 46
4 16 6.075 -8 66 6.075 -8 69 0 -8 69 0 -8 66
4 16 -6 -8 40 -6 -8 60 -9 -8 60 -9 -8 40
2 24 -9 10 60 -9 10 40
2 24 0 10 69 6.075 10 69
2 24 0 -8 69 6.075 -8 69
2 24 6.075 10 69 6.075 -8 69
2 24 6.075 10 78 6.075 10 69
2 24 6.075 10 78 6.075 0 86
2 24 6.075 10 78 9 10 78
2 24 6.075 0 86 9 0 86
2 24 9 10 78 9 0 86
2 24 9 10 78 9 10 40
2 24 -9 -8 60 -9 -8 40
4 16 9 0 86 9 10 78 6.075 10 78 6.075 0 86
4 16 6.075 10 69 6.075 10 78 9 10 78 9 10 69
1 16 0 10 60 -1 0 0 0 -1 0 0 0 1 peghole.dat
1 16 0 10 60 -1 0 0 0 -1 0 0 0 1 4-4ring8.dat
0 BFC INVERTNEXT
1 16 0 8 60 -6 0 0 0 -16 0 0 0 6 4-4cyli.dat
1 16 0 10 60 -9 0 0 0 -18 0 0 0 9 1-4cyli.dat
1 16 0 -8 60 -9 0 0 0 1 0 0 0 9 1-4edge.dat
1 16 0 10 60 -9 0 0 0 1 0 0 0 9 1-4edge.dat
1 16 0 -8 60 -3 0 0 0 1 0 0 0 3 1-4ring2.dat
1 16 0 -8 60 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -8 60 -6 0 0 0 1 0 0 0 -6 3-4ndis.dat
1 16 0 10 60 9 0 0 0 -1 0 0 0 9 1-4ndis.dat
1 16 6 -10.5 50 0 -2 0 0.5 0 0 0 0 14 box5-4a.dat
2 24 5.428 -11 64 5.693 -10 64
2 24 5.428 -11 36 5.428 -11 64
2 24 5.428 -11 36 5.693 -10 36
2 24 5.693 -10 36 5.693 -10 64
5 24 6.075 -8.558 30 6.075 -8.558 79.476 3.848 -16.971 30 7 0 30
5 24 3.848 -16.971 30 3.848 -16.971 73.062 0.355 -25.096 30 6.075 -8.558 30
5 24 0.355 -25.096 30 0.355 -25.096 66.868 -4.353 -32.789 30 3.848 -16.971 30
5 24 -4.353 -32.789 30 -4.353 -32.789 61.004 -10.179 -39.923 30 0.355 -25.096 30
5 24 -10.179 -39.923 30 -10.179 -39.923 55.564 -17.043 -46.37 30 -4.353 -32.789 30
5 24 -17.043 -46.37 30 -17.043 -46.37 32.82 -24.811 -52.029 30 -10.179 -39.923 30
5 24 9 0 30 9 0 86 8.336 -8.558 30 9 65.577 30
5 24 8.336 -8.558 30 8.336 -8.558 79.476 6.365 -16.971 30 9 0 30
5 24 6.365 -16.971 30 6.365 -16.971 73.062 3.121 -25.096 30 8.336 -8.558 30
5 24 3.121 -25.096 30 3.121 -25.096 66.868 -1.353 -32.789 30 6.365 -16.971 30
5 24 -1.353 -32.789 30 -1.353 -32.789 61.004 -6.962 -39.923 30 3.121 -25.096 30
5 24 -6.962 -39.923 30 -6.962 -39.923 55.564 -13.629 -46.37 30 -1.353 -32.789 30
5 24 -13.629 -46.37 30 -13.629 -46.37 32.82 -21.224 -52.029 30 -6.962 -39.923 30
4 16 6.075 -8.558 30 3.848 -16.971 30 3.848 -16.971 73.062 6.075 -8.558 79.476
4 16 3.848 -16.971 30 0.355 -25.096 30 0.355 -25.096 66.868 3.848 -16.971 73.062
4 16 0.355 -25.096 30 -4.353 -32.789 30 -4.353 -32.789 61.004 0.355 -25.096 66.868
4 16 -10.179 -39.923 30 -10.179 -39.923 55.564 -4.353 -32.789 61.004 -4.353 -32.789 30
4 16 -10.179 -39.923 30 -17.043 -46.37 30 -17.043 -46.37 32.82 -12.923 -42.5 53.6
3 16 -12.923 -42.5 53.6 -10.179 -39.923 55.564 -10.179 -39.923 30
4 16 6.075 0 69 6.075 -8.558 69 6.075 -8.558 79.476 6.075 0 86
3 16 -17.043 -46.37 30 -17.688 -46.895 30 -17.043 -46.37 32.82
2 24 3.848 -16.971 73.062 6.075 -8.558 79.476
2 24 0.355 -25.096 66.868 3.848 -16.971 73.062
2 24 -4.353 -32.789 61.004 0.355 -25.096 66.868
2 24 -10.179 -39.923 55.564 -4.353 -32.789 61.004
2 24 -17.043 -46.37 32.82 -12.923 -42.5 53.6
2 24 -12.923 -42.5 53.6 -10.179 -39.923 55.564
2 24 6.075 -8.558 79.476 6.075 0 86
2 24 -17.688 -46.895 30 -17.043 -46.37 32.82
2 24 8.336 -8.558 79.476 9 0 86
2 24 6.365 -16.971 73.062 8.336 -8.558 79.476
2 24 3.121 -25.096 66.868 6.365 -16.971 73.062
2 24 -1.353 -32.789 61.004 3.121 -25.096 66.868
2 24 -6.962 -39.923 55.564 -1.353 -32.789 61.004
2 24 -13.629 -46.37 32.82 -9.627 -42.5 53.6
2 24 -9.627 -42.5 53.6 -6.962 -39.923 55.564
2 24 -14.273 -46.895 30 -13.629 -46.37 32.82
4 16 9 0 86 6.075 0 86 6.075 -8.558 79.476 8.336 -8.558 79.476
4 16 8.336 -8.558 79.476 6.075 -8.558 79.476 3.848 -16.971 73.062 6.365 -16.971 73.062
4 16 6.365 -16.971 73.062 3.848 -16.971 73.062 0.355 -25.096 66.868 3.121 -25.096 66.868
4 16 3.121 -25.096 66.868 0.355 -25.096 66.868 -4.353 -32.789 61.004 -1.353 -32.789 61.004
4 16 -1.353 -32.789 61.004 -4.353 -32.789 61.004 -10.179 -39.923 55.564 -6.962 -39.923 55.564
4 16 -6.962 -39.923 55.564 -10.179 -39.923 55.564 -12.923 -42.5 53.6 -9.627 -42.5 53.6
4 16 -9.627 -42.5 53.6 -12.923 -42.5 53.6 -17.043 -46.37 32.82 -13.629 -46.37 32.82
4 16 -13.629 -46.37 32.82 -17.043 -46.37 32.82 -17.688 -46.895 30 -14.273 -46.895 30
2 24 -12.923 -42.5 53.6 -9.627 -42.5 53.6
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
| Blechtaler | Certify |
Official parents and subparts
Part Events:
2024-10-20 23:22:57
the topmost face should get deleted, it overlaps in the main part
Moved 1 quad from sub part to main parts
still there, should get deleted because its duplicated
(its the topmost one at the rim, without edgelines)
(its the topmost one at the rim, without edgelines)
2024-10-21 21:04:43
If you copy the bad triangle, change colour on it, and paste it here, it's easier to find.
2024-10-21 21:26:03
its line 13:
4 16 -14.274 -46.895 30 -17.688 -46.895 30 -19.043 -48 24 -15.629 -48 24
4 16 -14.274 -46.895 30 -17.688 -46.895 30 -19.043 -48 24 -15.629 -48 24
Now I got it! Well spotted, Rene. This bug has been in this official part since 2011.
yes that one
2024-10-22 21:57:16
