File Detail parts/30186p02.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/30186p02.dat

Part Attributes: Base Part: 30186.dat

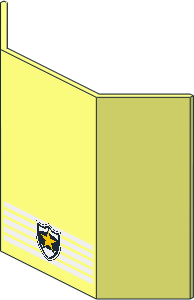

Glass for Window Bay 3 x 8 x 6 with Lines & Police Yellow Star Badge Pattern

File Header:

0 Glass for Window Bay  3 x  8 x  6 with Lines & Police Yellow Star Badge Pattern
0 Name: 30186p02.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS city center, police, Set 2234, set 6332, set 6636, town, Town Junior

0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30186s01.dat

0 BFC NOCLIP
0 // Pattern
0 // Badge
1 16 0 102.417 -6 1.0941 0 0 0 0 -1.0941 0 1 0 s\3039p08s03.dat
1 16 0 102 -6 1.042 0 0 0 0 -1.042 0 1 0 s\2513p02s02.dat
1 16 0 102.417 -6 -1.0941 0 0 0 0 -1.0941 0 1 0 s\3039p08s03.dat
1 16 0 102 -6 -1.042 0 0 0 0 -1.042 0 1 0 s\2513p02s02.dat

0 // Colour 15 White
4 15 -36 127.5 -6 0 127.5 -6 0 127.008 -6 -2.502571 125.669343 -6
4 15 -36 127.5 -6 -2.502571 125.669343 -6 -4.728 124 -6 -36 124 -6
4 15 -36 122 -6 -6.537 122 -6 -7.288373 121.164985 -6 -36 118.5 -6
3 15 -36 118.5 -6 -7.288373 121.164985 -6 -8.696011 118.912806 -6
3 15 -8.851 118.5 -6 -36 118.5 -6 -8.696011 118.912806 -6
4 15 -10.103649 114.408553 -6 -10.221 113 -6 -36 113 -6 -36 116.5 -6
3 15 -10.103649 114.408553 -6 -36 116.5 -6 -9.581 116.5 -6
4 15 -8.466354 104.116302 -6 -5.571678 104.733791 -6 -3.295221 104.32241 -6 -1.10327 102.857983 -6
4 15 -8.466354 104.116302 -6 -1.10327 102.857983 -6 0 102 -6 -10.103649 103.786196 -6
4 15 -10.103649 103.786196 -6 0 102 -6 -36 102 -6 -36 105.5 -6
3 15 -10.103649 103.786196 -6 -36 105.5 -6 -10.228 105.5 -6
4 15 -10.385093 107.652016 -6 -10.374 107.5 -6 -36 107.5 -6 -36 111 -6
3 15 -10.385093 107.652016 -6 -36 111 -6 -10.385 111 -6
4 15 0 127.008 -6 0 127.5 -6 36 127.5 -6 2.502571 125.669343 -6
4 15 4.728 124 -6 2.502571 125.669343 -6 36 127.5 -6 36 124 -6
4 15 7.288373 121.164985 -6 6.537 122 -6 36 122 -6 36 118.5 -6
3 15 36 118.5 -6 8.696011 118.912806 -6 7.288373 121.164985 -6
3 15 36 118.5 -6 8.851 118.5 -6 8.696011 118.912806 -6
4 15 36 113 -6 10.221 113 -6 10.103649 114.408553 -6 36 116.5 -6
3 15 10.103649 114.408553 -6 9.581 116.5 -6 36 116.5 -6
4 15 3.295221 104.32241 -6 5.571678 104.733791 -6 8.466354 104.116302 -6 1.10327 102.857983 -6
4 15 0 102 -6 1.10327 102.857983 -6 8.466354 104.116302 -6 10.103649 103.786196 -6
4 15 36 102 -6 0 102 -6 10.103649 103.786196 -6 36 105.5 -6
3 15 10.103649 103.786196 -6 10.228 105.5 -6 36 105.5 -6
4 15 36 107.5 -6 10.374 107.5 -6 10.385093 107.652016 -6 36 111 -6
3 15 10.385093 107.652016 -6 10.385 111 -6 36 111 -6

0 BFC CLIP
0 // Colour 16 Main Colour
4 16 -10.374 107.5 -6 -10.228 105.5 -6 -36 105.5 -6 -36 107.5 -6
4 16 -10.385093 111.030285 -6 -10.385 111 -6 -36 111 -6 -36 113 -6
3 16 -10.385093 111.030285 -6 -36 113 -6 -10.221 113 -6
4 16 -9.540552 116.660732 -6 -9.581 116.5 -6 -36 116.5 -6 -36 118.5 -6
3 16 -9.540552 116.660732 -6 -36 118.5 -6 -8.851 118.5 -6
4 16 -36 124 -6 -4.728 124 -6 -4.75475 123.980261 -6 -36 122 -6
3 16 -6.537 122 -6 -36 122 -6 -4.75475 123.980261 -6
4 16 0 127.5 -6 -36 127.5 -6 -38.4 136 -6 38.4 136 -6
4 16 -38.4 4 -6 -36 102 -6 0 102 -6 38.4 4 -6
3 16 -36 124 -6 -38.4 136 -6 -36 127.5 -6
3 16 -36 122 -6 -38.4 136 -6 -36 124 -6
3 16 -36 118.5 -6 -38.4 136 -6 -36 122 -6
3 16 -36 116.5 -6 -38.4 136 -6 -36 118.5 -6
3 16 -36 113 -6 -38.4 136 -6 -36 116.5 -6
3 16 -36 111 -6 -38.4 136 -6 -36 113 -6
3 16 -36 107.5 -6 -38.4 136 -6 -36 111 -6
3 16 -36 105.5 -6 -38.4 136 -6 -36 107.5 -6
4 16 -38.4 136 -6 -36 105.5 -6 -36 102 -6 -38.4 4 -6
4 16 36 105.5 -6 10.228 105.5 -6 10.374 107.5 -6 36 107.5 -6
4 16 36 111 -6 10.385 111 -6 10.385093 111.030285 -6 36 113 -6
3 16 10.385093 111.030285 -6 10.221 113 -6 36 113 -6
4 16 36 116.5 -6 9.581 116.5 -6 9.540552 116.660732 -6 36 118.5 -6
3 16 9.540552 116.660732 -6 8.851 118.5 -6 36 118.5 -6
4 16 4.75475 123.980261 -6 4.728 124 -6 36 124 -6 36 122 -6
3 16 36 122 -6 6.537 122 -6 4.75475 123.980261 -6
3 16 36 127.5 -6 0 127.5 -6 38.4 136 -6
3 16 38.4 4 -6 0 102 -6 36 102 -6
3 16 36 124 -6 36 127.5 -6 38.4 136 -6
3 16 36 122 -6 36 124 -6 38.4 136 -6
3 16 36 118.5 -6 36 122 -6 38.4 136 -6
3 16 36 116.5 -6 36 118.5 -6 38.4 136 -6
3 16 36 113 -6 36 116.5 -6 38.4 136 -6
3 16 36 111 -6 36 113 -6 38.4 136 -6
3 16 36 107.5 -6 36 111 -6 38.4 136 -6
3 16 36 105.5 -6 36 107.5 -6 38.4 136 -6
4 16 36 102 -6 36 105.5 -6 38.4 136 -6 38.4 4 -6

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2024-10-23 12:14:19

*There are a few issues regarding rounding and stretched triangles/quads due to the badge sub-file. Would it be preferable to just in-line the badge?
*Should this be mirrored?
*Should I add a shortcut for the assembly version of this (and 30186p01.dat as well)?
*Bricklink & co actually don't list this part, only the assembly this is part of. Should the reference numbers stay in the Keywords?

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2024-10-23 12:51:28

the unprinted background should be excluded from the NOCLIP (only the printed area should be there)
the badge could stay subfiled
shortcut would be nice (put the BL keyword there)

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-10-23 14:56:01

*clipping fixed
*removed keywords

Rene Rechthaler [Blechtaler]

made the following comment.

2024-10-23 14:59:17

much better :)

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2024-10-23 15:02:25

https://library.ldraw.org/official/4134
use this as template for the shortcut
