File Detail parts/s/3873s01.dat

Official File parts/s/3873s01.dat

File Header:

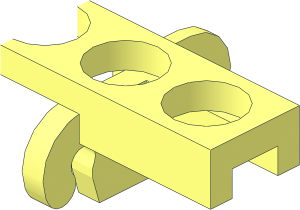

0 ~Technic Chain Tread 2.5 Wide - Half
0 Name: s\3873s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06

Show contents

0 // Clip
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3711s02.dat

0 // Clip Inside
4 16 5.5 5 16 7 5 16 7 5 10.5 5.512 5 8.241
4 16 5.512 5 8.241 7 5 10.5 9.75 5 10.5 7.1716 5 7.8284
4 16 7.1716 5 7.8284 9.75 5 10.5 9.75 5 7.75 7.1716 5 5.526
2 24 7 5 10.5 9.75 5 10.5
2 24 9.75 5 7.75 9.75 5 10.5
2 24 5.5 5 16 5.512 5 8.241
2 24 5.512 5 8.241 7.1716 5 7.8284

4 16 7 -5 10.5 9.75 -2 10.5 9.75 5 10.5 7 5 10.5
1 16 7 0 13.25 0 -1 0 -5 0 0 0 0 -2.75 rect3.dat
2 24 9.75 -2 10.5 9.75 5 10.5

4 16 5.512 5 8.241 5 3.75 8.407 5 3.75 16 5.5 5 16
4 16 5 -5 10.5 5 -3.75 10.5 5 3.75 8.407 5 -5 8.407
4 16 5 -3.75 16 5 3.75 16 5 3.75 8.407 5 -3.75 10.5
4 16 5 -3.75 10.5 5.5 -5 10.5 5.5 -5 16 5 -3.75 16
3 16 5 -5 10.5 5.5 -5 10.5 5 -3.75 10.5
4 16 5.5 -5 16 5.5 -5 10.5 7 -5 10.5 7 -5 16
2 24 5 3.75 8.407 5.512 5 8.241
2 24 5 3.75 8.407 5 3.75 16
2 24 5 3.75 8.407 5 -5 8.407
2 24 5 -5 10.5 5 -5 8.407
2 24 5 -5 10.5 5 -3.75 10.5
2 24 5 -3.75 10.5 5 -3.75 16
2 24 5 -3.75 10.5 5.5 -5 10.5
2 24 5.5 -5 10.5 5.5 -5 16
2 24 5.5 -5 10.5 7 -5 10.5
2 24 5 -5 10.5 5.5 -5 10.5

3 16 5 3.75 8.407 5.512 5 8.241 7.1716 5 7.8284
4 16 7.1716 -5 7.8284 5 -5 8.407 5 3.75 8.407 7.1716 5 7.8284
2 24 5 -5 8.407 7.1716 -5 7.8284
1 16 7.1716 0 6.6772 0 1 0 -5 0 0 0 0 1.1512 rect3.dat

0 // Clip Outside
4 16 9.75 -2 7.8284 9.75 -2 2.1716 9.75 -1.5 1.5 9.75 5 7.75
4 16 9.75 -2 7.8284 9.75 5 7.75 9.75 5 10.5 9.75 -2 10.5
4 16 9.75 -2 -.5 9.75 -1.5 0 9.75 -1.5 1.5 9.75 -2 2.1716

0 // Wide Tread
1 16 0 0 5 1 0 0 0 1 0 0 0 1 s\3873s02.dat
1 16 0 0 5 1 0 0 0 1 0 0 0 -1 s\3873s02.dat

4 16 26 -8 -.5 26 -5 2.1716 26 -5 7.8284 26 -8 10.5
3 16 26 -5 2.1716 24 -5 5 26 -5 7.8284
3 16 24 -8 5 26 -8 -.5 26 -8 10.5
2 24 26 -8 -.5 26 -8 10.5
2 24 26 -5 2.1716 26 -5 7.8284

4 16 9.75 -2 2.1716 9.75 -2 7.8284 9.75 -5 7.8284 9.75 -5 2.1716
3 16 7.1716 -5 7.8284 7.1716 -5 5.526 9.75 -5 7.8284
3 16 9.75 -5 7.8284 7.1716 -5 5.526 9.75 -5 2.1716
3 16 9.75 -5 2.1716 7.1716 -5 5.526 7.1716 -5 2.1716
2 24 9.75 -5 2.1716 9.75 -5 7.8284

4 16 4 -5 5 5 -5 8.407 6 -5 7.8284 6 -5 5
3 16 4 -5 9 5 -5 8.407 4 -5 5
4 16 4 -5 5 6 -5 5 6 -5 2.1716 4 -5 1
3 16 4 -5 1 7.1716 -5 2.1716 7.1716 -5 -.5
4 16 0 -5 1 4 -5 1 7.1716 -5 -.5 0 -5 -.5
3 16 5 -5 8.407 4 -5 9 5 -5 10.5
3 16 7.1716 -5 7.8284 6 -5 7.8284 5 -5 8.407
4 16 0 -5 9 0 -5 10.5 5 -5 10.5 4 -5 9
3 16 6 -5 2.1716 7.1716 -5 2.1716 4 -5 1

0 // Tread Sides
4 16 7 -5 10.5 26 -8 10.5 26 -2 10.5 9.75 -2 10.5
3 16 5 -5 10.5 0 -5 10.5 0 -8 10.5
3 16 5.5 -5 10.5 5 -5 10.5 0 -8 10.5
4 16 5.5 -5 10.5 0 -8 10.5 26 -8 10.5 7 -5 10.5
2 24 0 -5 10.5 5 -5 10.5

4 16 26 -2 -.5 26 -8 -.5 9.75 -5 -.5 9.75 -2 -.5
3 16 9.75 -5 -.5 26 -8 -.5 7.1716 -5 -.5
4 16 0 -8 -.5 0 -5 -.5 7.1716 -5 -.5 26 -8 -.5
2 24 9.75 -5 -.5 9.75 -2 -.5
2 24 9.75 -5 -.5 7.1716 -5 -.5
2 24 7.1716 -5 -.5 0 -5 -.5
