Unofficial File parts/15516.dat
Part Attributes:
File Header:

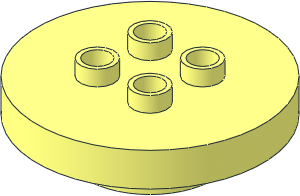

0 Duplo Furniture Table Round 4 x 4 x 1
0 Name: 15516.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Table
Show contents
0 // duplo studs on top
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
0 // table surface
1 16 0 0 0 80 0 0 0 24 0 0 0 80 48\4-4cylc.dat
0 BFC INVERTNEXT
1 16 0 4 0 75 0 0 0 20 0 0 0 75 48\4-4cylc.dat
1 16 0 24 0 5 0 0 0 -1 0 0 0 5 48\4-4ring15.dat
0 // bottom cylinders
0 BFC INVERTNEXT
1 16 0 4 0 40.3 0 0 0 44 0 0 0 40.3 48\4-4cylo.dat
1 16 0 48 0 4.03 0 0 0 -1 0 0 0 4.03 48\4-4ring10.dat
1 16 0 4 0 44.33 0 0 0 44 0 0 0 44.33 48\4-4cylo.dat
1 16 0 4 0 -1 0 0 0 -11 0 0 0 1 stud8.dat
Status:
Needs More Votes (CN)
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
2024-10-29 09:02:27
2024-10-29 11:28:15
2024-10-29 22:43:12
Only one, and it doesn't have any reinforcements that I can see. What does your resources say about 15515 or 98220? At least these 15515 that I have easily on hand have a small triangular reinforcement at the outside base of the smallest cylinder, but this is not modeled in the 15515 LDraw part.
2024-10-30 07:36:12
Glad to see a new Duplo part author... Welcome here!
Indeed, 15515 also has a single reinforcement that I missed when I modeled the part. Not utterly important anyway since it has no functional role and is not even sen in normal use. 98220 has a much more complex bottom structure, with 4 curved reinforcements, and 8 ribs below the dome.
Indeed, 15515 also has a single reinforcement that I missed when I modeled the part. Not utterly important anyway since it has no functional role and is not even sen in normal use. 98220 has a much more complex bottom structure, with 4 curved reinforcements, and 8 ribs below the dome.
2024-10-30 07:37:41
Correction: 98220 has 7 (!!!) ribs below dome
2025-04-02 10:26:00
