Official File parts/18652.dat
Part Attributes:
File Header:

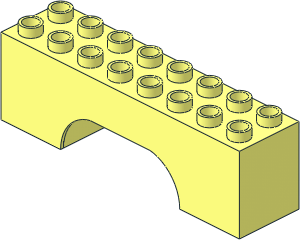

0 Duplo Arch 2 x 8 x 2
0 Name: 18652.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18652s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\18652s01.dat
0 // studs on top
1 16 0 0 20 1 0 0 0 2.75 0 0 0 1 stug7-1x8.dat
1 16 0 0 -20 1 0 0 0 2.75 0 0 0 1 stug7-1x8.dat
0 // top and end surfaces
1 16 0 96 0 0 0 160 0 -96 0 40 0 0 box3u2p.dat
0 // middle inside
0 BFC INVERTNEXT
1 16 0 48 0 36 0 0 0 -44 0 0 0 36 box5.dat
1 16 0 4 0 1 0 0 0 -10 0 0 0 1 stud8.dat
4 16 40 48 40 36 48 36 -36 48 36 -40 48 40
4 16 -40 48 -40 -36 48 -36 36 48 -36 40 48 -40
2 24 -40 48 -40 40 48 -40
2 24 -40 48 40 40 48 40
0 // front surface
1 16 32 96 -40 48 0 0 0 0 -48.8 0 1 0 48\5-24ndis.dat
4 16 -160 96 -40 -80 96 -40 -80 47.2 -40 -160 0 -40
4 16 -160 0 -40 -80 47.2 -40 -44.4224 48.8641 -40 -40 48 -40
1 16 -32 96 -40 -48 0 0 0 0 -48.8 0 1 0 48\5-24ndis.dat
4 16 160 96 -40 160 0 -40 80 47.2 -40 80 96 -40
4 16 160 0 -40 40 48 -40 44.4224 48.8641 -40 80 47.2 -40
4 16 -160 0 -40 -40 48 -40 40 48 -40 160 0 -40
0 // back surface
4 16 160 0 40 40 48 40 -40 48 40 -160 0 40
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Welcme to the Parts Tracker, Peter!
Are 98223/2302 and this part matching in real life?
The part is fine, I am just asking you to create a 18652s01 file without the front face to cater for the one printed version of this part, better do it right now.
Are 98223/2302 and this part matching in real life?
The part is fine, I am just asking you to create a 18652s01 file without the front face to cater for the one printed version of this part, better do it right now.
Submitting subparted versions. Hope this works!
2024-10-29 21:32:05
Thanks for welcoming me. Yes, in real life parts 98223 and 2302 match the arch perfectly both in curvature and the center studs. Too bad the digital pieces do not.
Thanks for the advice to create the subpart. Still learning how to do it properly.
Thanks for the advice to create the subpart. Still learning how to do it properly.
Trying to fix the subpart referencing issue.
Last try today.
Bottom curve needs to be changed. See discussion here:
https://library.ldraw.org/tracker/41619
https://library.ldraw.org/tracker/41619
Curvature now follows that of parts 98223 and 2302 and also the upper half of 4198.
Curvature does not match the bottom half of 4198. The bottom half of 4198 is wrong - should be mirror of its upper half.
Curvature does not match the bottom half of 4198. The bottom half of 4198 is wrong - should be mirror of its upper half.
Reduced file size by halving subfile.
Orientation should be updated (pending final decision of thread https://forums.ldraw.org/thread-28741-post-56949.html#pid56949)
2025-03-31 15:42:05
i think this one counts a "Arch" and should stay in this orientation (like the other arches)
Most likely going to be counted as an arch and therefore will not require changes in orientation.
* line 29 : The flat subfile is scaled in Y direction.
line 32 : The flat subfile is scaled in Y direction.
line 32 : The flat subfile is scaled in Y direction.
Removed scaling from flat primitives as suggested. Removed superfluous BFC INVERTNEXT command as suggested.
Removed a few T-junctions in subfile as suggested.
Removed a few T-junctions in subfile as suggested.
2025-04-29 08:34:43
2025-08-26 11:37:21
2025-08-26 16:45:10
2025-08-31 02:18:39
Release 2025-08
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
This part matches perfectly with 98252, 98224, and one half of 4198.
This part doesn't match with 2302 and 98223 because they use a slightly too large cylo and make up for the discrepancy with a quad.
