File Detail parts/s/49570s01.dat

Unofficial File parts/s/49570s01.dat

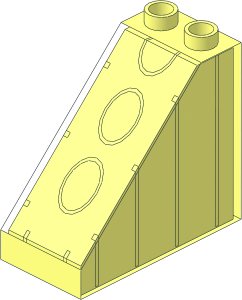

~Duplo Slope 2 x 4 x 3 without Slope and Side Faces

File Header:

0 ~Duplo Slope  2 x  4 x  3 without Slope and Side Faces
0 Name: s\49570s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-1x2.dat

0 // outer top and back
1 16 0 72 0 40 0 0 0 0 -72 0 20 0 box2-5.dat

0 // front surface
1 16 0 132 -140 40 0 0 0 0 12 0 1 0 rect.dat

0 // bottom hem with long edge lines
4 16 40 144 20 36 144 16 -36 144 16 -40 144 20
4 16 -40 144 20 -36 144 16 -36 144 -136 -40 144 -140
4 16 -40 144 -140 -36 144 -136 36 144 -136 40 144 -140
4 16 40 144 -140 36 144 -136 36 144 16 40 144 20
2 24 -36 144 -136 -36 144 16
2 24 36 144 -136 36 144 16
2 24 -40 144 -140 -40 144 20
2 24 40 144 -140 40 144 20

0 // inner top, back, and front
0 BFC INVERTNEXT
1 16 0 74 -2 36 0 0 0 0 -70 0 18 0 box2-5.dat
1 16 0 132 -136 36 0 0 0 0 12 0 -1 0 rect.dat

0 // sloped surface with side edges
2 24 40 120 -140 40 0 -20
2 24 -40 120 -140 -40 0 -20
4 16 36 120 -136 -36 120 -136 -36 4 -20 36 4 -20
2 24 36 120 -136 36 4 -20
2 24 -36 120 -136 -36 4 -20

0 // first bottom stud
0 BFC INVERTNEXT
1 16 0 98 -100 0 0 14 0 -14 0 -14 0 0 4-4cylse.dat
0 BFC INVERTNEXT
1 16 0 100 -100 0 0 14 0 -2 0 -14 0 0 4-4cyli.dat
1 16 0 100 -100 0 0 16 0 -16 0 -16 0 0 4-4cylse.dat
1 16 0 100 -100 1 0 0 0 -10 0 0 0 -1 stud8a.dat

0 // middle bottom stud
0 BFC INVERTNEXT
1 16 0 58 -60 0 0 14 0 -14 0 -14 0 0 4-4cylse.dat
0 BFC INVERTNEXT
1 16 0 60 -60 0 0 14 0 -2 0 -14 0 0 4-4cyli.dat
1 16 0 60 -60 0 0 16 0 -16 0 -16 0 0 4-4cylse.dat
1 16 0 60 -60 1 0 0 0 -20 0 0 0 -1 stud8a.dat

0 // third bottom stud
0 BFC INVERTNEXT
1 16 0 18 -20 0 0 -14 0 -14 0 -14 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 18 -20 0 0 14 0 -14 0 -14 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 4 -20 14 0 0 0 14 0 0 0 14 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 20 -20 0 0 14 0 -2 0 -14 0 0 4-4cyli.dat
1 16 0 20 -20 0 0 -16 0 -16 0 -16 0 0 1-4cyls.dat
1 16 0 4 -20 16 0 0 0 16 0 0 0 16 2-4cyli.dat
1 16 0 20 -20 0 0 16 0 -16 0 -16 0 0 1-4cyls.dat
1 16 0 20 -20 1 0 0 0 -30 0 0 0 1 stud8a.dat
1 16 0 4 -20 -16 0 0 0 1 16 0 0 -16 2-4edge.dat
1 16 0 4 -20 -14 0 0 0 1 14 0 0 -14 2-4edge.dat
1 16 0 4 -20 16 0 0 0 1 0 0 0 16 2-4edge.dat
1 16 0 4 -20 14 0 0 0 1 0 0 0 14 2-4edge.dat

0 // inner sides
4 16 -36 144 -136 -36 144 16 -36 4 -20 -36 120 -136
4 16 36 144 -136 36 120 -136 36 4 -20 36 144 16
3 16 36 144 16 36 4 -20 36 4 16
3 16 -36 144 16 -36 4 16 -36 4 -20

0 // inner notches
1 16 20 4 14 1.5 0 0 0 139 0 0 0 -2 box4-1.dat
1 16 -20 4 14 1.5 0 0 0 139 0 0 0 -2 box4-1.dat
1 16 -34 4 0 0 0 2 0 139 0 -1.5 0 0 box4-1.dat
1 16 34 4 0 0 0 -2 0 139 0 1.5 0 0 box4-1.dat

0 // longest sloped notches
1 16 -34 143 -40 0 0 2 0 -1 0 1.5 0 0 rect.dat
2 24 -32 22.5 -38.5 -32 25.5 -41.5
1 16 -34 82.75 -38.5 -2 0 0 0 0 -60.25 0 -1 0 rect3.dat
4 16 -32 143 -38.5 -32 22.5 -38.5 -32 25.5 -41.5 -32 143 -41.5
1 16 -34 84.25 -41.5 2 0 0 0 0 -58.75 0 1 0 rect3.dat

1 16 34 143 -40 0 0 -2 0 -1 0 1.5 0 0 rect.dat
2 24 32 25.5 -41.5 32 22.5 -38.5
1 16 34 82.75 -38.5 2 0 0 0 0 -60.25 0 -1 0 rect3.dat
4 16 32 25.5 -41.5 32 22.5 -38.5 32 143 -38.5 32 143 -41.5
1 16 34 84.25 -41.5 -2 0 0 0 0 -58.75 0 1 0 rect3.dat

0 // middle sloped notches
1 16 -34 143 -80 0 0 2 0 -1 0 1.5 0 0 rect.dat
2 24 -32 65.5 -81.5 -32 62.5 -78.5
1 16 -34 104.25 -81.5 2 0 0 0 0 -38.75 0 1 0 rect3.dat
4 16 -32 62.5 -78.5 -32 65.5 -81.5 -32 143 -81.5 -32 143 -78.5
1 16 -34 102.75 -78.5 -2 0 0 0 0 -40.25 0 -1 0 rect3.dat

1 16 34 143 -80 0 0 -2 0 -1 0 1.5 0 0 rect.dat
2 24 32 62.5 -78.5 32 65.5 -81.5
1 16 34 104.25 -81.5 -2 0 0 0 0 -38.75 0 1 0 rect3.dat
4 16 32 143 -81.5 32 65.5 -81.5 32 62.5 -78.5 32 143 -78.5
1 16 34 102.75 -78.5 2 0 0 0 0 -40.25 0 -1 0 rect3.dat

0 // shortest sloped notches
1 16 -34 143 -120 0 0 2 0 -1 0 1.5 0 0 rect.dat
2 24 -32 105.5 -121.5 -32 102.5 -118.5
1 16 -34 124.25 -121.5 2 0 0 0 0 -18.75 0 1 0 rect3.dat
4 16 -32 105.5 -121.5 -32 143 -121.5 -32 143 -118.5 -32 102.5 -118.5
1 16 -34 122.75 -118.5 -2 0 0 0 0 -20.25 0 -1 0 rect3.dat

1 16 34 143 -120 0 0 -2 0 -1 0 1.5 0 0 rect.dat
2 24 32 102.5 -118.5 32 105.5 -121.5
1 16 34 124.25 -121.5 -2 0 0 0 0 -18.75 0 1 0 rect3.dat
4 16 32 143 -118.5 32 143 -121.5 32 105.5 -121.5 32 102.5 -118.5
1 16 34 122.75 -118.5 2 0 0 0 0 -20.25 0 -1 0 rect3.dat

0 // small end notches
1 16 -20 129.5 -134 -1.5 0 0 0 13.5 0 0 0 2 box2-5.dat
4 16 -18.5 116 -132 -18.5 120 -136 -18.5 143 -136 -18.5 143 -132
4 16 -21.5 116 -132 -21.5 143 -132 -21.5 143 -136 -21.5 120 -136
2 24 -21.5 120 -136 -21.5 143 -136
2 24 -18.5 120 -136 -18.5 143 -136
2 24 -21.5 116 -132 -21.5 120 -136
2 24 -18.5 116 -132 -18.5 120 -136

1 16 20 129.5 -134 1.5 0 0 0 13.5 0 0 0 2 box2-5.dat
4 16 18.5 143 -136 18.5 120 -136 18.5 116 -132 18.5 143 -132
4 16 21.5 143 -136 21.5 143 -132 21.5 116 -132 21.5 120 -136
2 24 21.5 143 -136 21.5 120 -136
2 24 18.5 143 -136 18.5 120 -136
2 24 21.5 120 -136 21.5 116 -132
2 24 18.5 120 -136 18.5 116 -132

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
Holly-Wood	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2024-10-29 21:26:44

Submitting subparted versions. Hope this works!

Magnus Forsberg [MagFors]

renamed the part.

2024-10-29 21:30:37

"parts/49570s01.dat" to "parts/s/49570s01.dat"

Magnus Forsberg [MagFors]

made the following comment.

2024-10-29 21:35:27

They ended up in the wrong folder. There was probably something wrong in your header.
It must be like this:
0 Name: s\49570s01.dat
0 !LDRAW_ORG Unofficial_Subpart

Peter Blomberg [WUIt]

made the following comment.

2024-10-29 22:52:26

Thanks for the help! I did try that first, but the PT submitter complained that one mustn't have paths in the name. Removing the s\ allowed the file to be uploaded. Is it so that one needs to upload the subfile first and only then the main file?

Orion Pobursky [OrionP]

made the following comment.

2024-10-29 23:21:46

Pay attention to the slashes. You want "\" not "/".

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-12-04 00:22:28

Learning to check for BFC errors. Corrected two side surfaces of underside notched in the low end of the part.

Philippe Hurbain [Philo]

posted a vote of Certify.

2025-03-26 13:18:01

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-04-03 10:51:12

* Using prims for the sake is never a good idea:

2 68 -32 143 -41.5 -32 142.9 -41.5
2 68 -32 143 -81.5 -32 142.9 -81.5
2 68 -32 142.9 -121.5 -32 143 -121.5
2 68 -36 121.656 -136 -36 121.657 -136

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-06 15:03:02

Remade sloped notches from scratch using icecalc and rectifier.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-07 10:14:29

* QED:

2 4 -36 121.657 -136 -36 144 -136
2 4 36 144 -136 36 121.657 -136
2 4 36 121.657 -136 -36 121.657 -136
2 4 18.5 117.656 -132 21.5 117.656 -132
2 4 -18.5 143 -132 -18.5 117.675 -132
2 4 18.5 117.675 -132 18.5 143 -132
2 4 -21.5 117.656 -132 -18.5 117.656 -132
2 4 21.5 143 -132 21.5 117.675 -132
2 4 -21.5 117.675 -132 -21.5 143 -132

Peter Blomberg [WUIt]

posted a vote of Hold.

2025-04-07 22:31:24

The part is full of microgaps. Need to remake. Will remake.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-08 02:30:57

Remade this subfile to remove microgaps.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-08 09:57:18
