File Detail parts/u9594.dat

Unofficial File parts/u9594.dat

Part Attributes:

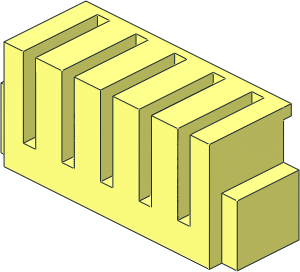

~Electric Powered Up Hub with 3 Integrated Motors and 6 Lights Battery Connector Socket

File Header:

0 ~Electric Powered Up Hub with  3 Integrated Motors and  6 Lights Battery Connector Socket
0 Name: u9594.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 -.5 0 1 0 0 0 1 0 0 0 1 s\u9594s02.dat
1 16 -5 -.5 0 1 0 0 0 1 0 0 0 1 s\u9594s02.dat
1 16 5 -.5 0 1 0 0 0 1 0 0 0 1 s\u9594s02.dat
1 16 -10 -.5 0 1 0 0 0 1 0 0 0 1 s\u9594s02.dat
1 16 0 -12.55 5.2 13.3 0 0 0 0 -.65 0 1 0 box5-4a.dat
1 82 10 -.5 0 1 0 0 0 1 0 0 0 1 s\u9594s01.dat
0 BFC INVERTNEXT
1 16 11.25 -7.7 1.2 0 .45 0 -4.2 0 0 0 0 -4 box3-5a.dat
2 24 11.7 -11.9 5.2 11.7 -3.5 5.2
2 24 10.8 -13.2 -4.4 10.8 -3.5 -4.4
4 16 10.8 -3.5 -4.4 10.8 -13.2 -4.4 10.8 -11.9 -2.8 10.8 -3.5 -2.8
4 16 10.8 -11.9 -2.8 10.8 -13.2 -4.4 10.8 -13.2 5.2 10.8 -11.9 5.2
2 24 13.3 0 -4.4 13.3 -13.2 -4.4
4 16 13.3 -7.4 -2.8 13.3 -13.2 -4.4 13.3 0 -4.4 13.3 0 -2.8
4 16 13.3 -13.2 5.2 13.3 -13.2 -4.4 13.3 -7.4 -2.8 13.3 -7.4 5.2
2 24 13.3 -13.2 5.2 13.3 -13.2 -4.4
2 24 10.8 -13.2 -4.4 10.8 -13.2 5.2
4 16 13.3 -13.2 -4.4 13.3 -13.2 5.2 10.8 -13.2 5.2 10.8 -13.2 -4.4
4 16 10.8 -3.5 -4.4 13.3 0 -4.4 13.3 -13.2 -4.4 10.8 -13.2 -4.4
2 24 13.3 -13.2 -4.4 10.8 -13.2 -4.4
1 16 14.3 -3.7 1.2 0 1 0 -3.7 0 0 0 0 -4 box3-3.dat
1 16 10 -3.5 -3.6 -.8 0 0 0 1 0 0 0 -.8 rect3.dat
1 16 10 -3.5 1.2 0 0 -1.7 0 1 0 4 0 0 rect1.dat
1 16 10 -12.55 5.2 -.8 0 0 0 0 .65 0 1 0 rect.dat
1 16 5 -3.5 -3.6 -.8 0 0 0 1 0 0 0 -.8 rect3.dat
1 16 5 -3.5 1.2 0 0 -1.7 0 1 0 4 0 0 rect1.dat
1 16 5 -12.55 5.2 -.8 0 0 0 0 .65 0 1 0 rect.dat
1 16 0 -3.5 -3.6 -.8 0 0 0 1 0 0 0 -.8 rect3.dat
1 16 0 -3.5 1.2 0 0 -1.7 0 1 0 4 0 0 rect1.dat
1 16 0 -12.55 5.2 -.8 0 0 0 0 .65 0 1 0 rect.dat
1 16 -5 -3.5 -3.6 -.8 0 0 0 1 0 0 0 -.8 rect3.dat
1 16 -5 -3.5 1.2 0 0 -1.7 0 1 0 4 0 0 rect1.dat
1 16 -5 -12.55 5.2 -.8 0 0 0 0 .65 0 1 0 rect.dat
1 16 -10 -3.5 -3.6 -.8 0 0 0 1 0 0 0 -.8 rect3.dat
1 16 -10 -3.5 1.2 0 0 -1.7 0 1 0 4 0 0 rect1.dat
1 16 -10 -12.55 5.2 -.8 0 0 0 0 .65 0 1 0 rect.dat
1 82 -10 -.5 0 -1 0 0 0 1 0 0 0 1 s\u9594s01.dat
0 BFC INVERTNEXT
1 16 -11.25 -7.7 1.2 0 -.45 0 -4.2 0 0 0 0 -4 box3-5a.dat
2 24 -11.7 -3.5 5.2 -11.7 -11.9 5.2
2 24 -10.8 -3.5 -4.4 -10.8 -13.2 -4.4
4 16 -10.8 -11.9 -2.8 -10.8 -13.2 -4.4 -10.8 -3.5 -4.4 -10.8 -3.5 -2.8
4 16 -10.8 -13.2 5.2 -10.8 -13.2 -4.4 -10.8 -11.9 -2.8 -10.8 -11.9 5.2
2 24 -13.3 -13.2 -4.4 -13.3 0 -4.4
4 16 -13.3 0 -4.4 -13.3 -13.2 -4.4 -13.3 -7.4 -2.8 -13.3 0 -2.8
4 16 -13.3 -7.4 -2.8 -13.3 -13.2 -4.4 -13.3 -13.2 5.2 -13.3 -7.4 5.2
2 24 -13.3 -13.2 -4.4 -13.3 -13.2 5.2
2 24 -10.8 -13.2 5.2 -10.8 -13.2 -4.4
4 16 -10.8 -13.2 5.2 -13.3 -13.2 5.2 -13.3 -13.2 -4.4 -10.8 -13.2 -4.4
4 16 -13.3 -13.2 -4.4 -13.3 0 -4.4 -10.8 -3.5 -4.4 -10.8 -13.2 -4.4
2 24 -10.8 -13.2 -4.4 -13.3 -13.2 -4.4
1 16 -14.3 -3.7 1.2 0 -1 0 -3.7 0 0 0 0 -4 box3-3.dat
4 16 -10.8 -3.5 -4.4 -13.3 0 -4.4 13.3 0 -4.4 10.8 -3.5 -4.4
1 16 0 0 -3.6 13.3 0 0 0 -1 0 0 0 -.8 rect3.dat
1 16 0 0 1.2 0 0 15.3 0 -1 0 4 0 0 rect1.dat
1 16 7.5 -7.7 5.2 0 0 .8 -4.2 0 0 0 -1 0 rect1.dat
1 16 2.5 -7.7 5.2 0 0 .8 -4.2 0 0 0 -1 0 rect1.dat
1 16 -2.5 -7.7 5.2 0 0 .8 -4.2 0 0 0 -1 0 rect1.dat
1 16 -7.5 -7.7 5.2 0 0 .8 -4.2 0 0 0 -1 0 rect1.dat
2 24 13.3 -11.9 5.2 11.7 -11.9 5.2
2 24 13.3 -7.4 5.2 13.3 -11.9 5.2
4 16 13.3 -7.4 5.2 11.7 -3.5 5.2 11.7 -11.9 5.2 13.3 -11.9 5.2
4 16 13.3 -7.4 5.2 15.3 -7.4 5.2 15.3 0 5.2 11.7 -3.5 5.2
2 24 -11.7 -11.9 5.2 -13.3 -11.9 5.2
2 24 -13.3 -11.9 5.2 -13.3 -7.4 5.2
4 16 -11.7 -11.9 5.2 -11.7 -3.5 5.2 -13.3 -7.4 5.2 -13.3 -11.9 5.2
4 16 -15.3 0 5.2 -15.3 -7.4 5.2 -13.3 -7.4 5.2 -11.7 -3.5 5.2
4 16 -11.7 -3.5 5.2 11.7 -3.5 5.2 15.3 0 5.2 -15.3 0 5.2

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u9594s02.dat (Needs More Votes)
parts/s/u9594s01.dat (Needs More Votes)
parts/s/u9594s01.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2024-10-30 12:59:08
