File Detail parts/u9593.dat

Unofficial File parts/u9593.dat

Part Attributes:

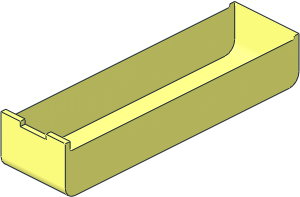

~Electric Powered Up Hub with 3 Integrated Motors and 6 Lights Battery Case Bottom (Needs Work)

File Header:

0 ~Electric Powered Up Hub with  3 Integrated Motors and  6 Lights Battery Case Bottom (Needs Work)
0 Name: u9593.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-08 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-10-17 [Philo] File preparation for LDraw Parts Tracker

Show contents

0 // Needs Work: Internal skin/details not modeled

1 16 30 0 100 0 -60 0 9 0 0 0 0 9 1-4cylo.dat
1 16 30 0 -100 0 -60 0 9 0 0 0 0 -9 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 -34 -106.75 0 0 12 0 4 0 2.25 0 0 box3u2p.dat
2 24 -30 -29 109 30 -29 109
1 16 30 -28 103 0 -1 0 1.5 0 0 0 0 1.5 1-4edge.dat
1 16 30 -28 103 0 -1 0 1.5 0 0 0 0 1.5 1-4ndis.dat
1 16 30 0 100 0 -1 0 9 0 0 0 0 9 1-4chrd.dat
2 24 30 -29 104.5 30 -28 104.5
2 24 30 -29 104.5 30 -29 109
2 24 30 -29 109 30 0 109
4 16 30 -29 109 30 -29 104.5 30 -26.5 104.5 30 0 109
4 16 30 9 100 30 0 109 30 -26.5 104.5 30 -26.5 103
1 16 30 -28 -103 0 -1 0 1.5 0 0 0 0 -1.5 1-4edge.dat
1 16 30 -28 -103 0 -1 0 1.5 0 0 0 0 -1.5 1-4ndis.dat
1 16 30 0 -100 0 -1 0 9 0 0 0 0 -9 1-4chrd.dat
2 24 30 -28 -104.5 30 -34 -104.5
2 24 30 -34 -109 30 -34 -104.5
2 24 30 0 -109 30 -34 -109
4 16 30 -26.5 -104.5 30 -34 -104.5 30 -34 -109 30 0 -109
4 16 30 -26.5 -104.5 30 0 -109 30 9 -100 30 -26.5 -103
2 24 30 -26.5 -103 30 -26.5 103
2 24 30 9 100 30 9 -100
4 16 30 -26.5 103 30 -26.5 -103 30 9 -100 30 9 100
4 16 30 -34 -104.5 12 -34 -104.5 12 -34 -109 30 -34 -109
2 24 12 -34 -109 30 -34 -109
2 24 12 -34 -104.5 30 -34 -104.5
4 16 16 -21 -104.5 12 -30 -104.5 12 -34 -104.5 30 -34 -104.5
4 16 30 -34 -109 12 -34 -109 12 -30 -109 30 0 -109
1 16 -30 -28 103 0 1 0 1.5 0 0 0 0 1.5 1-4edge.dat
1 16 -30 -28 103 0 1 0 1.5 0 0 0 0 1.5 1-4ndis.dat
1 16 -30 0 100 0 1 0 9 0 0 0 0 9 1-4chrd.dat
2 24 -30 -28 104.5 -30 -29 104.5
2 24 -30 -29 109 -30 -29 104.5
2 24 -30 0 109 -30 -29 109
4 16 -30 -26.5 104.5 -30 -29 104.5 -30 -29 109 -30 0 109
4 16 -30 -26.5 104.5 -30 0 109 -30 9 100 -30 -26.5 103
1 16 -30 -28 -103 0 1 0 1.5 0 0 0 0 -1.5 1-4edge.dat
1 16 -30 -28 -103 0 1 0 1.5 0 0 0 0 -1.5 1-4ndis.dat
1 16 -30 0 -100 0 1 0 9 0 0 0 0 -9 1-4chrd.dat
2 24 -30 -34 -104.5 -30 -28 -104.5
2 24 -30 -34 -104.5 -30 -34 -109
2 24 -30 -34 -109 -30 0 -109
4 16 -30 -34 -109 -30 -34 -104.5 -30 -26.5 -104.5 -30 0 -109
4 16 -30 9 -100 -30 0 -109 -30 -26.5 -104.5 -30 -26.5 -103
2 24 -30 -26.5 103 -30 -26.5 -103
2 24 -30 9 -100 -30 9 100
4 16 -30 9 -100 -30 -26.5 -103 -30 -26.5 103 -30 9 100
4 16 -12 -34 -109 -12 -34 -104.5 -30 -34 -104.5 -30 -34 -109
2 24 -30 -34 -109 -12 -34 -109
2 24 -30 -34 -104.5 -12 -34 -104.5
4 16 -12 -34 -104.5 -12 -30 -104.5 -16 -21 -104.5 -30 -34 -104.5
4 16 -12 -30 -109 -12 -34 -109 -30 -34 -109 -30 0 -109
4 16 -16 -21 -104.5 -12 -30 -104.5 12 -30 -104.5 16 -21 -104.5
4 16 30 0 -109 12 -30 -109 -12 -30 -109 -30 0 -109
4 16 30 9 -100 -30 9 -100 -30 9 100 30 9 100
4 16 30 -29 109 30 0 109 -30 0 109 -30 -29 109

Status:

Needs More Votes (N)

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2024-10-30 12:59:08
