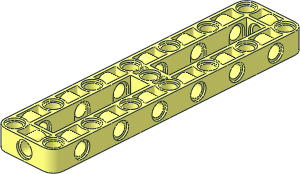

0 Technic Beam 13 x 3 with Two Open Areas 5 x 1
0 Name: 4526.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-07-27 [notmaster] modified from 67491.dat
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
0 !HISTORY 2024-11-01 [Blechtaler] fixed the small offset
Show contents
1 16 20 0 120 1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 -20 0 120 -1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 0 0 130 1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 0 0 110 1 0 0 0 0 -1 0 1 0 peghole5.dat
0 BFC INVERTNEXT
1 16 0 0 128 6 0 0 0 0 6 0 -16 0 4-4cyli.dat
1 16 20 0 80 1 0 0 0 1 0 0 0 1 s\39790s01.dat
1 16 20 0 40 1 0 0 0 1 0 0 0 -1 s\39790s01.dat
1 16 -20 0 40 -1 0 0 0 1 0 0 0 -1 s\39790s01.dat
1 16 -20 0 80 -1 0 0 0 1 0 0 0 1 s\39790s01.dat
1 16 30 0 60 0 -1 0 1 0 0 0 0 1 peghole.dat
1 16 10 0 60 0 1 0 0 0 -1 1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 28 0 60 0 -16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 -30 0 60 0 1 0 1 0 0 0 0 1 peghole.dat
1 16 -10 0 60 0 -1 0 0 0 -1 1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 -28 0 60 0 16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 s\67491s01.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 -1 s\67491s01.dat
1 16 20 0 0 -1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -20 0 0 -1 0 0 0 1 0 0 0 1 s\67491s01.dat
1 16 -20 0 0 -1 0 0 0 1 0 0 0 -1 s\67491s01.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 20 0 -40 1 0 0 0 1 0 0 0 1 s\39790s01.dat
1 16 20 0 -80 1 0 0 0 1 0 0 0 -1 s\39790s01.dat
1 16 -20 0 -80 -1 0 0 0 1 0 0 0 -1 s\39790s01.dat
1 16 -20 0 -40 -1 0 0 0 1 0 0 0 1 s\39790s01.dat
1 16 30 0 -60 0 -1 0 -1 0 0 0 0 1 peghole.dat
1 16 10 0 -60 0 1 0 0 0 -1 1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 28 0 -60 0 -16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 -30 0 -60 0 1 0 -1 0 0 0 0 -1 peghole.dat
1 16 -10 0 -60 0 -1 0 0 0 -1 1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 -28 0 -60 0 16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 20 0 -120 1 0 0 0 1 0 0 0 -1 s\39790s02.dat
1 16 -20 0 -120 -1 0 0 0 1 0 0 0 -1 s\39790s02.dat
1 16 0 0 -130 0 0 -1 -1 0 0 0 1 0 peghole.dat
1 16 0 0 -110 -1 0 0 0 0 -1 0 -1 0 peghole5.dat
0 BFC INVERTNEXT
1 16 0 0 -128 6 0 0 0 0 6 0 16 0 4-4cyli.dat
Status:
Certified (ACCF)
Current Votes:
| User | Vote |
|---|---|
| OrionP | Admin Review |
| Philo | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
fixed the small offset
2024-11-01 13:10:06
cool
how me do vote
how me do vote
2024-11-01 13:10:56
you cant vote yet (and technically its still your part)
2024-11-01 13:22:18
oh but i can hold vote wanna see it
2024-11-01 14:43:50
What was the "small offset"
2024-11-01 15:19:29
about .34 LDU (now everything aligns with the grid)
2024-11-01 15:27:15
For the whole part? If so, we need to "moved to" this.
2024-11-01 15:33:27
hm, was in the last update, its quite recent
(why didnt we notice that earlier?)
Stephan den Ridder found it:
https://forums.ldraw.org/thread-28481.html
(why didnt we notice that earlier?)
Stephan den Ridder found it:
https://forums.ldraw.org/thread-28481.html
2024-11-01 16:23:50
Official parts require a "Moved to" to adjust the origin
2024-11-01 16:30:12
2024-11-01 16:31:05
Make sure I didn't screw up the adjustment
i think just an offset for the whole part isnt enough, the offset is different for some things...
1 16 20 0 120.34 1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 -20 0 120.34 -1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 20 0 -119.4 1 0 0 0 1 0 0 0 -1 s\39790s02.dat
1 16 -20 0 -119.4 -1 0 0 0 1 0 0 0 -1 s\39790s02.dat
we have to fix the whole part
(all z values have to be whole numbers, everything on grid)
1 16 20 0 120.34 1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 -20 0 120.34 -1 0 0 0 1 0 0 0 1 s\39790s02.dat
1 16 20 0 -119.4 1 0 0 0 1 0 0 0 -1 s\39790s02.dat
1 16 -20 0 -119.4 -1 0 0 0 1 0 0 0 -1 s\39790s02.dat
we have to fix the whole part
(all z values have to be whole numbers, everything on grid)
2025-01-12 12:47:15
should I reupoad my fixed one?
We can not fix this file. The fix has to be placed in a new file.
Question is, Should this be obsoleted instead, due to bad geometry?
The Move to will only handle ~75% of the incorrect pin holes.
Question is, Should this be obsoleted instead, due to bad geometry?
The Move to will only handle ~75% of the incorrect pin holes.
2025-01-12 14:39:27
then this one should get obsoleted, the fixed a version is in grid.
2025-02-03 22:53:24
if obsoleted due to bad geometry, should it be empty then? or the original code back? or the link to the fix?
2025-02-03 23:03:12
The original code, including header data, restored in this file. 4526a should get the corrected code and new header data.
like this? with ~ and (Obsolete)
2025-02-03 23:55:35
Yup
Restoring the moved to.
From Magnus:
All of the file was 0.34 ldu off, but part of the designs was further offset by another 0.06 ldu.
Thus making it impossible to fix with a simple Move to. It has to be Obsoleted.
All of the file was 0.34 ldu off, but part of the designs was further offset by another 0.06 ldu.
Thus making it impossible to fix with a simple Move to. It has to be Obsoleted.
2025-02-04 16:52:54
2025-10-11 21:09:22
is this now the old code back? ready to cert even if wrong?
I still think it's a fix of a buggy part, without significant difference between versions. Introducing a B version just adds to the mess.
In the ensuing time since February, I've changed my mind. The change is so small (~.1mm) that it would virtually undetectable, even in models that use it. The only people at that level of pedantry to notice is us.
2025-11-05 17:07:33
who should change that? should I revert it back to my old first time fix?
(should we then also delete the other one?)
(should we then also delete the other one?)
2025-11-05 19:29:05
Current code in 4526b looks fine to me, should be ported here and current 4526b be deleted.
like this? (should now be like my original fix)
the b can then get deleted
the b can then get deleted
2025-11-05 22:31:40
2025-11-06 12:44:11
2025-11-06 16:05:22
