File Detail parts/s/11197s01.dat

Unofficial File parts/s/11197s01.dat

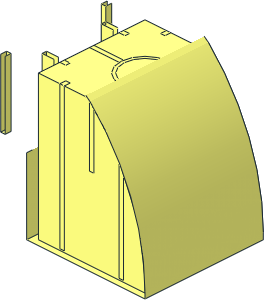

~Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom - Half

File Header:

0 ~Duplo Arch  2 x  6 x  2 Curved Double with  2 x  2 Cutout on Bottom - Half
0 Name: s\11197s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // bottom hem
4 16 120 96 40 120 96 -40 116 96 -36 116 96 36
4 16 120 96 40 116 96 36 44 96 36 40 96 40
4 16 40 96 40 44 96 36 44 96 -36 40 96 -40
4 16 120 96 -40 40 96 -40 44 96 -36 116 96 -36
2 24 116 96 -36 44 96 -36
2 24 44 96 36 116 96 36
2 24 120 96 40 40 96 40
2 24 120 96 -40 40 96 -40

0 // notches
1 16 60 4 -34 1.5 0 0 0 91 0 0 0 2 box4-1.dat
1 16 60 4 34 1.5 0 0 0 91 0 0 0 -2 box4-1.dat
1 16 46 4 20 0 0 2 0 91 0 -1.5 0 0 box4-1.dat
1 16 46 4 -20 0 0 2 0 91 0 -1.5 0 0 box4-1.dat

0 // center notches
2 24 34 47 -18.5 40 47 -18.5
2 24 40 47 -18.5 40 47 -21.5
2 24 40 47 -21.5 34 47 -21.5
2 24 32 4 -21.5 32 4 -18.5
2 24 32 4 -18.5 40 4 -18.5
2 24 40 4 -21.5 32 4 -21.5
2 24 32 4 -21.5 32 44 -21.5
2 24 32 4 -18.5 32 44 -18.5
2 24 40 4 -21.5 40 47 -21.5
2 24 40 4 -18.5 40 47 -18.5
4 16 40 47 -21.5 34 47 -21.5 34 47 -18.5 40 47 -18.5
4 16 32 44 -21.5 32 44 -18.5 34 47 -18.5 34 47 -21.5
4 16 32 4 -21.5 32 4 -18.5 32 44 -18.5 32 44 -21.5
3 16 40 4 -18.5 40 47 -18.5 32 4 -18.5
4 16 32 44 -18.5 32 4 -18.5 40 47 -18.5 34 47 -18.5
3 16 32 4 -21.5 40 47 -21.5 40 4 -21.5
4 16 32 44 -21.5 34 47 -21.5 40 47 -21.5 32 4 -21.5
2 24 34 47 -21.5 34 47 -18.5
2 24 32 44 -21.5 32 44 -18.5
2 24 34 47 -18.5 32 44 -18.5
2 24 34 47 -21.5 32 44 -21.5

2 24 34 47 18.5 40 47 18.5
2 24 40 47 18.5 40 47 21.5
2 24 40 47 21.5 34 47 21.5
2 24 32 4 21.5 32 4 18.5
2 24 32 4 18.5 40 4 18.5
2 24 40 4 21.5 32 4 21.5
2 24 32 4 21.5 32 44 21.5
2 24 32 4 18.5 32 44 18.5
2 24 40 4 21.5 40 47 21.5
2 24 40 4 18.5 40 47 18.5
4 16 40 47 21.5 40 47 18.5 34 47 18.5 34 47 21.5
4 16 32 44 21.5 34 47 21.5 34 47 18.5 32 44 18.5
4 16 32 4 21.5 32 44 21.5 32 44 18.5 32 4 18.5
3 16 32 4 18.5 40 47 18.5 40 4 18.5
4 16 32 44 18.5 34 47 18.5 40 47 18.5 32 4 18.5
3 16 40 4 21.5 40 47 21.5 32 4 21.5
4 16 32 44 21.5 32 4 21.5 40 47 21.5 34 47 21.5
2 24 34 47 21.5 34 47 18.5
2 24 32 44 21.5 32 44 18.5
2 24 34 47 18.5 32 44 18.5
2 24 34 47 21.5 32 44 21.5

1 16 20 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat

0 // inner box
1 16 40 72 0 0 1 0 0 0 24 -40 0 0 rect3.dat
1 16 44 50 0 0 -1 0 46 0 0 0 0 -36 rect.dat
1 16 62 4 0 18 0 0 0 -1 0 0 0 -36 rect2p.dat
2 24 80 4 14 80 4 -14
4 16 116 88 -36 116 96 -36 44 96 -36 112 60 -36
4 16 98.5 30 -36 112 60 -36 44 96 -36 80 4 -36
3 16 80 4 -36 44 96 -36 44 4 -36
4 16 116 88 36 112 60 36 44 96 36 116 96 36
4 16 98.5 30 36 80 4 36 44 96 36 112 60 36
3 16 44 4 36 44 96 36 80 4 36
2 24 40 48 36 40 48 40
2 24 40 48 -36 40 48 -40

0 // right slope inner
1 16 116 92 0 0 1 0 0 0 4 -36 0 0 rect3.dat
2 24 116 88 36 112 60 36
2 24 112 60 36 98.5 30 36
2 24 98.5 30 36 80 4 36
2 24 116 88 -36 112 60 -36
2 24 112 60 -36 98.5 30 -36
2 24 98.5 30 -36 80 4 -36
4 16 112 60 -36 112 60 36 116 88 36 116 88 -36
4 16 98.5 30 -36 98.5 30 36 112 60 36 112 60 -36
4 16 80 4 -36 80 4 36 98.5 30 36 98.5 30 -36
5 24 116 88 36 116 88 -36 116 96 0 112 60 0
5 24 112 60 36 112 60 -36 116 88 0 98.5 30 0
5 24 98.5 30 36 98.5 30 -36 112 60 0 80 4 0
5 24 80 4 36 80 4 -36 98.5 30 0 44 4 0
2 24 81.5 6.1081 16 81.5 6.1081 36
2 24 81.5 6.1081 -16 81.5 6.1081 -36

0 // right slope outer
1 16 -7 92 40 127 0 0 0 0 -127 0 -80 0 48\1-8cylo.dat
1 16 -7 92 -40 127 0 0 0 0 -127 0 -1 0 48\1-8edge.dat
1 16 -7 92 40 127 0 0 0 0 -127 0 -1 0 48\1-8edge.dat
1 16 120 94 0 0 -1 0 0 0 2 -40 0 0 rect3.dat
4 16 82.8017 2.1983 40 80 0 40 80 0 -40 82.8017 2.1983 -40
2 24 80 0 40 82.8017 2.1983 40
2 24 80 0 -40 82.8017 2.1983 -40

0 // right tube
1 16 80 23.176 0 1 0 0 0 -17.206 0 0 0 -1 stud8a.dat
0 BFC INVERTNEXT
1 16 80 23.176 0 0 0 -14 0 -19.176 0 -14 0 0 2-4cyli.dat
1 16 80 23.176 0 0 0 -16 0 -19.176 0 -16 0 0 2-4cyli.dat
1 16 80 23.176 0 16 0 0 0 -19.176 0 0 0 -16 1-4cyls.dat
0 BFC INVERTNEXT
1 16 80 23.176 0 14 0 0 0 -19.176 0 0 0 -14 1-4cyls.dat
0 BFC INVERTNEXT
1 16 80 23.176 0 14 0 0 0 -19.176 0 0 0 14 1-4cyls.dat
1 16 80 23.176 0 16 0 0 0 -19.176 0 0 0 16 1-4cyls.dat
1 16 80 4 0 0 0 -14 0 1 0 -14 0 0 2-4edge.dat
1 16 80 4 0 0 0 -16 0 1 0 -16 0 0 2-4edge.dat
2 24 80 4 -16 86.1232 12.6056 -14.7824
2 24 86.1232 12.6056 14.7824 80 4 16
2 24 86.1232 12.6056 14.7824 91.3136 19.9002 11.3136
2 24 91.3136 19.9002 11.3136 94.7824 24.7753 6.1232
2 24 96 26.4865 0 94.7824 24.7753 6.1232
2 24 96 26.4865 0 94.7824 24.7753 -6.1232
2 24 94.7824 24.7753 -6.1232 91.3136 19.9002 -11.3136
2 24 86.1232 12.6056 -14.7824 91.3136 19.9002 -11.3136
2 24 92.9346 22.1784 -5.3578 89.8994 17.9127 -9.8994
2 24 89.8994 17.9127 -9.8994 85.3578 11.5299 -12.9346
2 24 80 4 -14 85.3578 11.5298 -12.9346
2 24 80 4 14 85.3578 11.5299 12.9346
2 24 85.3578 11.5299 12.9346 89.8994 17.9127 9.8994
2 24 92.9346 22.1784 5.3578 89.8994 17.9127 9.8994
2 24 94 23.6757 0 92.9346 22.1784 5.3578
2 24 94 23.6757 0 92.9346 22.1784 -5.3578

0 // notches on right under slope
1 16 100 62.5 -36 -1.5 0 0 0 0 32.5 0 4 0 box4-4a.dat
1 16 100 62.5 36 -1.5 0 0 0 0 32.5 0 -4 0 box4-4a.dat
2 24 98.5 30 32 101.5 36.6667 32
2 24 101.5 36.6667 32 101.5 36.6667 36
2 24 101.5 36.6667 -32 98.5 30 -32
2 24 101.5 36.6667 -36 101.5 36.6667 -32
2 24 98.5 30 -36 98.5 30 -32
2 24 98.5 30 36 98.5 30 32

1 16 112 77.5 20 0 1 0 0 0 -17.5 1.5 0 0 rect.dat
1 16 114 95 20 0 0 -2 0 -1 0 -1.5 0 0 rect3.dat
4 16 112 60 18.5 112 95 18.5 116 95 18.5 116 88 18.5
4 16 112 95 21.5 112 60 21.5 116 88 21.5 116 95 21.5
2 24 112 60 18.5 116 88 18.5
2 24 112 60 21.5 116 88 21.5
2 24 116 95 21.5 116 95 18.5
2 24 116 95 18.5 116 88 18.5
2 24 116 95 21.5 116 88 21.5

1 16 112 77.5 -20 0 1 0 0 0 -17.5 1.5 0 0 rect.dat
1 16 114 95 -20 0 0 -2 0 -1 0 -1.5 0 0 rect3.dat
4 16 112 60 -21.5 112 95 -21.5 116 95 -21.5 116 88 -21.5
4 16 112 95 -18.5 112 60 -18.5 116 88 -18.5 116 95 -18.5
2 24 112 60 -18.5 116 88 -18.5
2 24 112 60 -21.5 116 88 -21.5
2 24 116 95 -21.5 116 95 -18.5
2 24 116 95 -18.5 116 88 -18.5
2 24 116 95 -21.5 116 88 -21.5

0 // reinforcements
1 16 54 4 0 10 0 0 0 40 0 0 0 1.5 box3u5p.dat
1 16 64 4 0 1.5 0 0 0 40 0 0 0 -1.5 boxjcyl4.dat
1 16 80 4 26 0 0 1.5 0 40 0 -10 0 0 box3u5p.dat
1 16 80 4 16 0 0 1.5 0 40 0 -1.5 0 0 boxjcyl4.dat
1 16 80 4 -26 0 0 1.5 0 40 0 10 0 0 box3u5p.dat
1 16 80 4 -16 0 0 1.5 0 40 0 1.5 0 0 boxjcyl4.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
Holly-Wood	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2024-11-01 17:12:17

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-11-06 16:32:48

Improved reinforcements and inside curve using recently learned tools.

Philippe Hurbain [Philo]

posted a vote of Hold.

2024-11-06 17:39:38

There are many surfaces that are BFC backwards. Looks very good otherwise.

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-11-07 09:59:59

Gaps:
2 24 116 88 -36 112 60 -36
2 24 112 60 -36 98.5 30 -36
2 24 116 88 36 112 60 36
2 24 112 60 36 98.5 30 36

Could be split in quarters

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-11-08 13:31:42

Corrected BFC orientation for 8 surfaces and rounding errors in two corners.

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-11-20 17:42:10

Corrected the color of an edge line on the inside.

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-12-04 00:07:23

Learning to check for BFC errors. Correcting two cyls primitives at the base of the left understud.

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-12-20 04:35:46

Reduced file size by halving subfile.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-03-31 00:51:05

Updated orientation. Move also back face to main file.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-10 09:21:57

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-11 05:46:07

Reverted orientation and updated description. Arch now mentioned in the description.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-11 09:21:21

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:47:28

Header Edits

description:
~Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom (Half)
to
~Duplo Arch 2 x 6 x 2 Curved Double with 2 x 2 Cutout on Bottom - Half

Comment:
Changed parenthesis to dash in description
