File Detail parts/s/5925s01.dat

Unofficial File parts/s/5925s01.dat

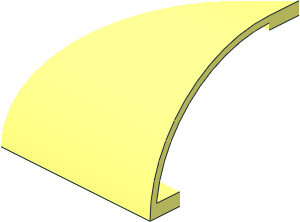

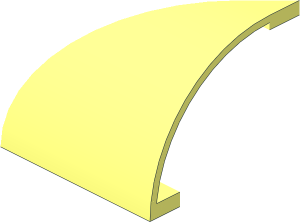

~Panel 5 x 5 x 3.333 Corner with Curved Top - Half

File Header:

0 ~Panel  5 x  5 x  3.333 Corner with Curved Top - Half
0 Name: s\5925s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Bottom
1 16 -40 76 -80 1 0 0 0 -1 0 0 0 1 stug3-1x4.dat
4 16 10 80 -70 6 80 -74 -74 80 -74 -70 80 -70
4 16 10 80 -90 6 80 -86 6 80 -74 10 80 -70
4 16 6 80 -86 10 80 -90 -90 80 -90 -86 80 -86
4 16 -74 76 -74 6 76 -74 6 76 -86 -86 76 -86
1 16 6 78 -80 0 1 0 0 0 2 6 0 0 rect2p.dat
2 24 10 80 -90 -10 80 -90
2 24 -10 80 -90 -90 80 -90

4 16 10 80 -70 10 72 -70 10 72 -85.4728 10 80 -90
4 16 10 72 -85.4728 10 70.082 -85.3464 10 69.56 -89.312 10 80 -90
1 16 10 80 -10 0 -1 0 0 0 -80 -80 0 0 48\1-48chrd.dat
2 24 10 72 -85.4728 10 72 -70
2 24 10 80 -90 10 80 -70
4 16 -85.4728 72 -85.4728 -10 72 -85.4728 10 72 -70 -70 72 -70
3 16 -10 72 -85.4728 10 72 -85.4728 10 72 -70

2 24 10 70.082 -85.3464 10 72 -85.4728
2 24 10 72 -85.4728 -10 72 -85.4728
2 24 -10 72 -85.4728 -85.4728 72 -85.4728
4 16 10 70.082 -85.3464 10 72 -85.4728 -10 72 -85.4728 -10 70.082 -85.3464
4 16 -10 70.082 -85.3464 -10 72 -85.4728 -85.4728 72 -85.4728 -85.3464 70.082 -85.3464
5 24 -10 70.082 -85.3464 10 70.082 -85.3464 10 72 -85.4728 10 60.3312 -83.4084
5 24 -85.3464 70.082 -85.3464 -10 70.082 -85.3464 -10 60.3312 -83.4084 -10 72 -85.4728

0 BFC INVERTNEXT
1 16 -10 80 -10 0 20 0 -76 0 0 0 0 -76 48\11-48cyli.dat
0 BFC INVERTNEXT
1 16 -10 80 -10 0 -76 0 0 0 -76 76 0 0 48\11-48cyls2.dat
1 16 10 80 -10 0 1 0 -76 0 0 0 0 -76 48\11-48edge.dat
1 16 10 80 -10 0 1 0 -80 0 0 0 0 -80 48\1-4edge.dat
1 16 10 80 -10 0 -1 0 -4 0 0 0 0 -4 48\11-48ring19.dat
1 16 -10 80 -10 0 -80 0 0 0 -80 80 0 0 48\1-4cyls2.dat
1 16 -10 80 -10 0 20 0 -80 0 0 0 0 -80 48\1-4cyli.dat

0 // Top
4 16 10 8 -10 -10 8 -10 -6 8 -6 6 8 -6
4 16 10 8 10 10 8 -10 6 8 -6 6 8 6
4 16 10 0 10 10 0 -10 10 4 -10 10 8 10
3 16 10 4 -10 10 8 -10 10 8 10
3 16 10 0 -10 10 0 10 -10 0 -10
2 24 10 0 -10 10 0 10
2 24 10 8 -10 10 8 10

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/48/11-48cyls2.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
Philo	Certify

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-11-02 00:03:17

Philippe Hurbain [Philo]

posted a vote of Certify.

2025-03-26 13:36:28
