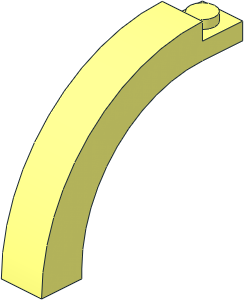

Arch 1 x 5 x 3.333 with Curved Top and Two Studs
File Header:
0 Arch 1 x 5 x 3.333 with Curved Top and Two Studs 0 Name: 5845.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Part UPDATE 2025-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 0 10 1 0 0 0 1 0 0 0 1 s\6060s01.dat 4 16 10 16 -10 6 16 -6 6 16 6 10 16 10 4 16 10 16 10 6 16 6 -6 16 6 -10 16 10 4 16 -10 16 10 -6 16 6 -6 16 -6 -10 16 -10 0 BFC INVERTNEXT 1 16 0 16 0 6 0 0 0 -4 0 0 0 6 box5.dat 1 16 0 16 0 10 0 0 0 -8 0 0 0 10 box4-4a.dat 1 16 0 8 0 1 0 0 0 1 0 0 0 1 stud.dat 4 16 6 12 -14 6 4.2636 -14 -6 4.2636 -14 -6 12 -14 2 24 -6 4.2636 -14 6 4.2636 -14 2 24 6 4.2636 -14 6 12 -14 2 24 -6 4.2636 -14 -6 12 -14 3 16 6 16 -10 6 16 -6 10 16 -10 3 16 -6 16 -10 -10 16 -10 -6 16 -6 4 16 -6 16 -6 6 16 -6 6 16 -10 -6 16 -10 0 BFC INVERTNEXT 1 16 0 14 -12 6 0 0 0 -2 0 0 0 2 box2-5.dat 4 16 6 16 -21.934 6 12 -14 6 12 -10 6 16 -10 4 16 6 12 -14 6 16 -21.934 6 4.6509 -19.625 6 4.2636 -14 4 16 -6 16 -10 -6 12 -10 -6 12 -14 -6 16 -21.934 4 16 -6 16 -21.934 -6 12 -14 -6 4.2636 -14 -6 4.6509 -19.625
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2024-11-03 11:57:20
subfile adapted as the tops uses different geometry
Vincent Messenet [Cheenzo]
Part Header Editor
edited the part header.
2024-11-04 13:25:51
Header Edits

description:
~Arch 1 x 5 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 5 x 3.333 with Curved Top and Two Studs

Comment:
Removed ~ from description
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2024-11-05 20:13:05
Header Edits

keywords:

to

description:
Arch 1 x 5 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 5 x 3.333 with Curved Top and Two Studs

Philippe Hurbain [Philo]
Senior Part Reviewer
edited the part header.
2025-03-26 13:22:06
Header Edits

description:
Arch 1 x 5 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 5 x 3.333 with Curved Top and One Stud

Comment:
...I count only one stud ;)
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2025-03-26 13:32:23
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2025-04-24 21:22:22
Origin?
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Hold.
2025-04-26 06:12:25
Origin isn't consistent with other single stud arch of similar geometry.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2025-04-29 21:47:45
origin now like 6005
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2025-04-29 22:32:21
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2025-04-30 18:18:46
Orion Pobursky [OrionP]
Part Library Admin
edited the part header.
2025-05-21 13:12:11
Header Edits

description:
~Arch 1 x 5 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 5 x 3.333 with Curved Top and Two Studs

Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2025-05-21 13:12:17
Orion Pobursky [OrionP]
Part Library Admin
2025-05-28 03:31:36
Release 2025-05
