Official File parts/18814.dat
Part Attributes:
File Header:

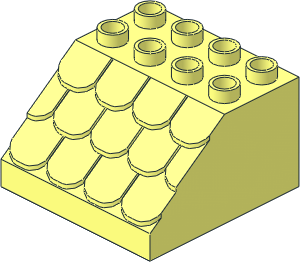

0 Duplo Slope 4 x 4 x 2 Shingled
0 Name: 18814.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
Show contents
0 // top outside
1 16 -40 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 40 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 0 0 80 0 0 0 1 0 0 0 40 rect.dat
0 // top inside
4 16 -76 4 -40 -76 4 40 76 4 40 76 4 -40
1 16 0 4 0 76 0 0 0 1 0 0 0 -40 recte3.dat
0 // slope with shingles
0 // 4 16 -80 0 -40 -80 72 -120 80 72 -120 80 0 -40
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 s\18814s01.dat
1 16 -80 0 -20 -1 0 0 0 1 0 0 0 1 s\18814s02.dat
1 16 40 0 -20 1 0 0 0 1 0 0 0 1 s\18814s01.dat
1 16 80 0 -20 1 0 0 0 1 0 0 0 1 s\18814s02.dat
0 // between columns
0 // first line
4 16 -80 72 -120 80 72 -120 80 63 -108 -80 63 -108
0 // 4 16 -80 72 -120 -80 63 -108 80 63 -108 80 72 -120
5 24 -41 65.1434 -110.8578 -39 65.1434 -110.8578 -40 60 -108 -35.142 68.5496 -115.3994
2 24 -40 60 -108 -40 48 -92
3 16 -41 65.1434 -110.8578 -39 65.1434 -110.8578 -40 60 -108
5 24 -1 65.1434 -110.8578 1 65.1434 -110.8578 0 60 -108 4.858 68.5496 -115.3994
3 16 -1 65.1434 -110.8578 1 65.1434 -110.8578 0 60 -108
5 24 39 65.1434 -110.8578 41 65.1434 -110.8578 40 60 -108 35.142 68.5496 -115.3994
3 16 39 65.1434 -110.8578 41 65.1434 -110.8578 40 60 -108
0 // second line (end of groove just before next shingle)
3 16 -41 47 -92 -40 48 -92 -39 47 -92
3 16 -1 47 -92 0 48 -92 1 47 -92
3 16 39 47 -92 40 48 -92 41 47 -92
0 // third line
0 // 1 16 -40 45 -92 4 0 0 0 0 2 0 1 0 rect.dat
4 16 -45 43 -92 -35 43 -92 -28.654 23.826 -66.4346 -51.346 23.826 -66.4346
4 16 -51.346 23.826 -66.4346 -28.654 23.826 -66.4346 -35.142 21.5496 -63.3994 -44.858 21.5496 -63.3994
4 16 -44.858 21.5496 -63.3994 -35.142 21.5496 -63.3994 -39 18.1434 -58.8578 -41 18.1434 -58.8578
3 16 -41 18.1434 -58.8578 -39 18.1434 -58.8578 -40 13 -56
5 24 -41 18.1434 -58.8578 -39 18.1434 -58.8578 -40 13 -56 -44.858 21.5496 -63.3994
2 24 -40 13 -56 -40 1 -40
0 // 1 16 0 45 -92 4 0 0 0 0 2 0 1 0 rect.dat
4 16 -5 43 -92 5 43 -92 11.346 23.826 -66.4346 -11.346 23.826 -66.4346
4 16 -11.346 23.826 -66.4346 11.346 23.826 -66.4346 4.858 21.5496 -63.3994 -4.858 21.5496 -63.3994
4 16 -4.858 21.5496 -63.3994 4.858 21.5496 -63.3994 1 18.1434 -58.8578 -1 18.1434 -58.8578
3 16 -1 18.1434 -58.8578 1 18.1434 -58.8578 0 13 -56
5 24 -1 18.1434 -58.8578 1 18.1434 -58.8578 0 13 -56 -4.858 21.5496 -63.3994
0 // 1 16 40 45 -92 4 0 0 0 0 2 0 1 0 rect.dat
4 16 35 43 -92 45 43 -92 51.346 23.826 -66.4346 28.654 23.826 -66.4346
4 16 28.654 23.826 -66.4346 51.346 23.826 -66.4346 44.858 21.5496 -63.3994 35.142 21.5496 -63.3994
4 16 35.142 21.5496 -63.3994 44.858 21.5496 -63.3994 41 18.1434 -58.8578 39 18.1434 -58.8578
3 16 39 18.1434 -58.8578 41 18.1434 -58.8578 40 13 -56
5 24 39 18.1434 -58.8578 41 18.1434 -58.8578 40 13 -56 35.142 21.5496 -63.3994
0 // fourth line (end of groove just before top)
3 16 -41 0 -40 -40 1 -40 -39 0 -40
3 16 -1 0 -40 0 1 -40 1 0 -40
3 16 39 0 -40 40 1 -40 41 0 -40
0 // bottom inside
1 16 0 78 -38 76 0 0 0 1 0 0 0 -78 rect3.dat
0 // back
4 16 -80 0 40 80 0 40 76 4 40 -76 4 40
4 16 -80 0 40 -76 4 40 -76 78 40 -80 96 40
4 16 80 0 40 80 96 40 76 78 40 76 4 40
4 16 -80 96 40 -76 78 40 76 78 40 80 96 40
1 16 0 41 40 76 0 0 0 0 37 0 1 0 recte4.dat
1 16 0 48 40 80 0 0 0 0 48 0 1 0 recte3.dat
0 // left outside
3 16 -80 0 -40 -80 0 40 -80 96 40
4 16 -80 96 40 -80 96 -120 -80 72 -120 -80 63 -108
4 16 -80 96 40 -80 63 -108 -80 59 -108 -80 47 -92
4 16 -80 96 40 -80 47 -92 -80 43 -92 -80 16 -56
4 16 -80 96 40 -80 16 -56 -80 12 -56 -80 0 -40
0 // left inside
4 16 -76 4 40 -76 4 -40 -76 78 -116 -76 78 40
2 24 -76 4 -40 -76 78 -116
4 16 -76 4 -40 76 4 -40 76 78 -116 -76 78 -116
0 // right outside
3 16 80 0 -40 80 96 40 80 0 40
4 16 80 96 40 80 63 -108 80 72 -120 80 96 -120
4 16 80 96 40 80 47 -92 80 59 -108 80 63 -108
4 16 80 96 40 80 16 -56 80 43 -92 80 47 -92
4 16 80 96 40 80 0 -40 80 12 -56 80 16 -56
0 // right inside
4 16 76 4 40 76 78 40 76 78 -116 76 4 -40
2 24 76 4 -40 76 78 -116
0 // front outside
1 16 0 84 -120 80 0 0 0 0 12 0 1 0 rect.dat
0 // bottom
1 16 0 96 -40 80 0 0 0 1 0 0 0 -80 recte3.dat
0 // bottom plate modified from part 14721
0 // flattened by 6 LDU and upgraded to use boxjcyl4.dat
0 // bottom cylinders
1 16 40 82 0 1 0 0 0 -3.5 0 0 0 1 stud8.dat
1 16 0 82 -40 1 0 0 0 -3.5 0 0 0 1 stud8.dat
1 16 -40 82 0 1 0 0 0 -3.5 0 0 0 1 stud8.dat
1 16 40 82 -80 1 0 0 0 -3.5 0 0 0 1 stud8.dat
1 16 -40 82 -80 1 0 0 0 -3.5 0 0 0 1 stud8.dat
0 // inside box
0 BFC INVERTNEXT
1 16 0 96 -40 76 0 0 0 -14 0 0 0 76 box5.dat
0 // underside helm
4 16 80 96 40 76 96 36 -76 96 36 -80 96 40
4 16 -80 96 40 -76 96 36 -76 96 -116 -80 96 -120
4 16 -80 96 -120 -76 96 -116 76 96 -116 80 96 -120
4 16 80 96 -120 76 96 -116 76 96 36 80 96 40
0 // notches
1 16 60 82 -114 1.5 0 0 0 13 0 0 0 2 box4-1.dat
1 16 20 82 -114 1.5 0 0 0 13 0 0 0 2 box4-1.dat
1 16 -20 82 -114 1.5 0 0 0 13 0 0 0 2 box4-1.dat
1 16 -60 82 -114 1.5 0 0 0 13 0 0 0 2 box4-1.dat
1 16 60 82 34 1.5 0 0 0 13 0 0 0 -2 box4-1.dat
1 16 20 82 34 1.5 0 0 0 13 0 0 0 -2 box4-1.dat
1 16 -20 82 34 1.5 0 0 0 13 0 0 0 -2 box4-1.dat
1 16 -60 82 34 1.5 0 0 0 13 0 0 0 -2 box4-1.dat
1 16 74 82 -20 0 0 -2 0 13 0 -1.5 0 0 box4-1.dat
1 16 74 82 -60 0 0 -2 0 13 0 -1.5 0 0 box4-1.dat
1 16 -74 82 -20 0 0 2 0 13 0 -1.5 0 0 box4-1.dat
1 16 -74 82 -60 0 0 2 0 13 0 -1.5 0 0 box4-1.dat
1 16 74 82 -100 0 0 -2 0 13 0 -1.5 0 0 box4-1.dat
1 16 -74 82 -100 0 0 2 0 13 0 -1.5 0 0 box4-1.dat
1 16 74 82 20 0 0 -2 0 13 0 -1.5 0 0 box4-1.dat
1 16 -74 82 20 0 0 2 0 13 0 -1.5 0 0 box4-1.dat
0 // reinforcements
1 16 46 82 -40 -30 0 0 0 4 0 0 0 -1.5 box3u5p.dat
1 16 16 82 -40 -1.5 0 0 0 4 0 0 0 1.5 boxjcyl4.dat
1 16 0 82 -86 0 0 -1.5 0 4 0 30 0 0 box3u5p.dat
1 16 0 82 -56 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat
1 16 -46 82 -40 30 0 0 0 4 0 0 0 1.5 box3u5p.dat
1 16 -16 82 -40 1.5 0 0 0 4 0 0 0 1.5 boxjcyl4.dat
1 16 0 82 6 0 0 1.5 0 4 0 -30 0 0 box3u5p.dat
1 16 0 82 -24 0 0 1.5 0 4 0 -1.5 0 0 boxjcyl4.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-11-04 02:42:34
Inlined single-use subfile 4.
2025-03-28 08:49:18
2025-03-29 16:40:43
2025-04-23 18:42:36
2025-04-27 06:57:34
Release 2025-04
