File Detail parts/s/109866s01.dat

Official File parts/s/109866s01.dat

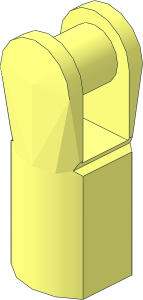

~Figure Hand with Lower Arm with Bar Handle - Arm

File Header:

0 ~Figure Hand with Lower Arm with Bar Handle - Arm
0 Name: s\109866s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-11-06 [Philo] Adapted from Magfors 23443
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

1 16 0 29 -2.1 6.25 0 -6.25 0 -17.45 0 6.33731 0 6.33731 1-4cyli.dat
1 16 0 29 2.1 6.25 0 -6.25 0 -17.45 0 -6.33731 0 -6.33731 1-4cyli.dat
1 16 0 29 -2.1 -6.25 0 6.25 0 -1 0 6.33731 0 6.33731 1-4chrd.dat
1 16 0 29 2.1 -6.25 0 6.25 0 -1 0 -6.33731 0 -6.33731 1-4chrd.dat
1 16 0 29 -2.1 -6.25 0 6.25 0 -1 0 6.33731 0 6.33731 1-4edge.dat
1 16 0 29 2.1 -6.25 0 6.25 0 -1 0 -6.33731 0 -6.33731 1-4edge.dat
4 16 -5.7736 10 -4 5.7736 10 -4 5.7736 10 4 -5.7736 10 4
2 24 6.25 29 -4.2373 6.25 29 4.2373
2 24 6.25 29 4.2373 6.25 11.55 4.2373
2 24 6.25 11.55 -4.2373 6.25 29 -4.2373
2 24 -6.25 29 -4.2373 -6.25 11.55 -4.2373
2 24 -6.25 11.55 4.2373 -6.25 29 4.2373
4 16 6.25 29 4.2373 6.25 11.55 4.2373 6.25 11.55 -4.2373 6.25 29 -4.2373
2 24 -6.25 29 4.2373 -6.25 29 -4.2373

1 16 0 0 -4 -4 0 0 0 0 4 0 8 0 4-4cylo.dat
1 16 0 0 6.337 -6 0 0 0 0 -6 0 -2.337 0 2-4cylo.dat
1 16 0 0 6.337 -6 0 0 0 0 -6 0 0.525 0 2-4con0.dat
1 16 0 0 -6.337 6 0 0 0 0 -6 0 2.337 0 2-4cylo.dat
1 16 0 0 -6.337 6 0 0 0 0 -6 0 -0.525 0 2-4con0.dat
2 24 -5.7736 10 4 -5.7736 10 -4
2 24 -5.22 10.95 4.935 -5.22 10.95 -4.935
2 24 -6.25 11.55 -4.2373 -6.25 11.55 4.2373
2 24 -5.7736 10 4 5.7736 10 4
4 16 -5.7736 10 -4 -5.7736 10 4 -5.22 10.95 4.935 -5.22 10.95 -4.935
4 16 -5.22 10.95 4.935 -6.25 11.55 4.2373 -6.25 11.55 -4.2373 -5.22 10.95 -4.935
4 16 -6 9.6078 4 -5.7736 10 4 5.7736 10 4 6 9.6077 4
2 24 5.7736 10 -4 5.7736 10 4
2 24 5.22 10.95 -4.935 5.22 10.95 4.935
2 24 6.25 11.55 4.2373 6.25 11.55 -4.2373
2 24 5.7736 10 -4 -5.7736 10 -4
4 16 5.7736 10 4 5.7736 10 -4 5.22 10.95 -4.935 5.22 10.95 4.935
4 16 5.22 10.95 -4.935 6.25 11.55 -4.2373 6.25 11.55 4.2373 5.22 10.95 4.935
4 16 6 9.6078 -4 5.7736 10 -4 -5.7736 10 -4 -6 9.6077 -4
2 24 -6 9.6078 4 -6 0 4
2 24 -5.22 10.95 4.935 -6.25 11.55 4.2373
2 24 -6 9.61 4.59 -5.22 10.95 4.935
2 24 -6 9.6078 4 -5.7736 10 4
2 24 -6 9.61 4.59 -6 9.6078 4
4 16 -6 9.6078 4 -6 0 4 -6 0 6.337 -6 9.61 4.59
3 16 0 0 6.862 0 11.55 6.8622 -6 0 6.337
3 16 -3.3825 11.55 6.1803 -6 0 6.337 0 11.55 6.8622
3 16 -5.22 10.95 4.935 -3.3825 11.55 6.1803 -6.25 11.55 4.2373
4 16 -5.22 10.95 4.935 -6 9.61 4.59 -6 0 6.337 -3.3825 11.55 6.1803
4 16 -5.7736 10 4 -6 9.6078 4 -6 9.61 4.59 -5.22 10.95 4.935
2 24 6 9.6077 4 6 0 4
2 24 5.22 10.95 4.935 6.25 11.55 4.2373
2 24 6 9.61 4.59 5.22 10.95 4.935
2 24 6 9.6077 4 5.7736 10 4
2 24 6 9.61 4.59 6 9.6077 4
4 16 6 0 6.337 6 0 4 6 9.6077 4 6 9.61 4.59
3 16 0 0 6.862 6 0 6.337 0 11.55 6.8622
3 16 3.3825 11.55 6.1803 0 11.55 6.8622 6 0 6.337
3 16 5.22 10.95 4.935 6.25 11.55 4.2373 3.3825 11.55 6.1803
4 16 6 0 6.337 6 9.61 4.59 5.22 10.95 4.935 3.3825 11.55 6.1803
4 16 6 9.61 4.59 6 9.6077 4 5.7736 10 4 5.22 10.95 4.935
2 24 6 9.6078 -4 6 0 -4
2 24 5.22 10.95 -4.935 6.25 11.55 -4.2373
2 24 6 9.61 -4.59 5.22 10.95 -4.935
2 24 6 9.6078 -4 5.7736 10 -4
2 24 6 9.61 -4.59 6 9.6078 -4
4 16 6 9.6078 -4 6 0 -4 6 0 -6.337 6 9.61 -4.59
3 16 0 11.55 -6.8622 6 0 -6.337 0 0 -6.862
3 16 6 0 -6.337 0 11.55 -6.8622 3.3825 11.55 -6.1803
3 16 3.3825 11.55 -6.1803 6.25 11.55 -4.2373 5.22 10.95 -4.935
4 16 5.22 10.95 -4.935 6 9.61 -4.59 6 0 -6.337 3.3825 11.55 -6.1803
4 16 5.7736 10 -4 6 9.6078 -4 6 9.61 -4.59 5.22 10.95 -4.935
2 24 -6 9.6077 -4 -6 0 -4
2 24 -5.22 10.95 -4.935 -6.25 11.55 -4.2373
2 24 -6 9.61 -4.59 -5.22 10.95 -4.935
2 24 -6 9.6077 -4 -5.7736 10 -4
2 24 -6 9.61 -4.59 -6 9.6077 -4
4 16 -6 0 -6.337 -6 0 -4 -6 9.6077 -4 -6 9.61 -4.59
3 16 -6 0 -6.337 0 11.55 -6.8622 0 0 -6.862
3 16 0 11.55 -6.8622 -6 0 -6.337 -3.3825 11.55 -6.1803
3 16 -6.25 11.55 -4.2373 -3.3825 11.55 -6.1803 -5.22 10.95 -4.935
4 16 -6 0 -6.337 -6 9.61 -4.59 -5.22 10.95 -4.935 -3.3825 11.55 -6.1803
4 16 -6 9.61 -4.59 -6 9.6077 -4 -5.7736 10 -4 -5.22 10.95 -4.935
5 24 -5.7736 10 4 -5.22 10.95 4.935 -5.7736 10 -4 -6 9.6078 4
5 24 5.7736 10 -4 5.22 10.95 -4.935 5.7736 10 4 6 9.6078 -4
5 24 6 9.61 4.59 6 0 6.337 6 9.6077 4 5.22 10.95 4.935
5 24 6 0 6.337 0 11.55 6.8622 0 0 6.862 3.3825 11.55 6.1803
5 24 6 0 6.337 3.3825 11.55 6.1803 0 11.55 6.8622 5.22 10.95 4.935
5 24 3.3825 11.55 6.1803 5.22 10.95 4.935 6.25 11.55 4.2373 6 0 6.337
5 24 6 0 -6.337 6 9.61 -4.59 6 9.6078 -4 5.22 10.95 -4.935
5 24 0 0 -6.862 0 11.55 -6.8622 6 0 -6.337 -6 0 -6.337
5 24 0 11.55 -6.8622 6 0 -6.337 0 0 -6.862 3.3825 11.55 -6.1803
5 24 3.3825 11.55 -6.1803 6 0 -6.337 0 11.55 -6.8622 5.22 10.95 -4.935
5 24 5.22 10.95 -4.935 3.3825 11.55 -6.1803 6.25 11.55 -4.2373 6 0 -6.337
5 24 -6 9.61 -4.59 -6 0 -6.337 -6 9.6077 -4 -5.22 10.95 -4.935
5 24 -6 0 -6.337 0 11.55 -6.8622 0 0 -6.862 -3.3825 11.55 -6.1803
5 24 -6 0 -6.337 -3.3825 11.55 -6.1803 0 11.55 -6.8622 -5.22 10.95 -4.935
5 24 -3.3825 11.55 -6.1803 -5.22 10.95 -4.935 -6.25 11.55 -4.2373 -6 0 -6.337
5 24 -6 0 6.337 -6 9.61 4.59 -6 9.6078 4 -5.22 10.95 4.935
5 24 0 0 6.862 0 11.55 6.8622 -6 0 6.337 6 0 6.337
5 24 0 11.55 6.8622 -6 0 6.337 0 0 6.862 -3.3825 11.55 6.1803
5 24 -3.3825 11.55 6.1803 -6 0 6.337 0 11.55 6.8622 -5.22 10.95 4.935
5 24 -5.22 10.95 4.935 -3.3825 11.55 6.1803 -6.25 11.55 4.2373 -6 0 6.337
5 24 0 11.55 6.8622 -3.3825 11.55 6.1803 -6 0 6.337 -3.3825 30 6.1803
5 24 3.3825 11.55 6.1803 0 11.55 6.8622 6 0 6.337 0 30 6.8622
5 24 0 11.55 -6.8622 3.3825 11.55 -6.1803 6 0 -6.337 0 30 -6.8622
5 24 -3.3825 11.55 -6.1803 0 11.55 -6.8622 -6 0 -6.337 -3.3825 30 -6.1803
4 16 -6.25 11.55 -4.2373 -6.25 11.55 4.2373 -6.25 29 4.2373 -6.25 29 -4.2373
1 16 0 0 -4 6 0 0 0 0 -6 0 -1 0 2-4chrd.dat
4 16 6 9.6078 -4 -6 9.6077 -4 -6 0 -4 6 0 -4
1 16 0 0 4 6 0 0 0 0 -6 0 1 0 2-4chrd.dat
4 16 -6 0 4 -6 9.6077 4 6 9.6078 4 6 0 4
4 16 6.25 29 -4.2373 -6.25 29 -4.2373 -6.25 29 4.2373 6.25 29 4.2373

Status:

Official

This part has the following warnings

Decimal precision exceeds library recommendation

Line 12: 1 16 0 29 -2.1 6.25 0 -6.25 0 -17.45 0 6.33731 0 6.33731 1-4cyli.dat

Line 13: 1 16 0 29 2.1 6.25 0 -6.25 0 -17.45 0 -6.33731 0 -6.33731 1-4cyli.dat

Line 14: 1 16 0 29 -2.1 -6.25 0 6.25 0 -1 0 6.33731 0 6.33731 1-4chrd.dat

Line 15: 1 16 0 29 2.1 -6.25 0 6.25 0 -1 0 -6.33731 0 -6.33731 1-4chrd.dat

Line 16: 1 16 0 29 -2.1 -6.25 0 6.25 0 -1 0 6.33731 0 6.33731 1-4edge.dat

Line 17: 1 16 0 29 2.1 -6.25 0 6.25 0 -1 0 -6.33731 0 -6.33731 1-4edge.dat

Unofficial parents

Part Events:

Archived Part Events:
