Unofficial File p/stud8s2.dat
File Header:

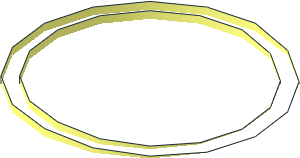

0 Stud Duplo Tube Open 0.500 Sloped
0 Name: stud8s2.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP For use between a stud8a and a half-sloped surface.
0 BFC CERTIFY CCW
Show contents
0 // Inner cylinder
0 BFC INVERTNEXT
1 16 0 -1 0 0 0 -14 0 0.875 0 14 0 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -0.125 0 14 0 0 0 -0.875 0 0 0 14 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 -0.125 0 14 0 0 0 -0.875 0 0 0 -14 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -14 0 -0.125 0 14 0 0 4-4cyli.dat
1 16 0 -1 0 0 0 -14 0 1 0 14 0 0 2-4edge.dat
1 16 0 -1 0 0 0 14 0 1 0.875 -14 0 0 2-4edge.dat
0 // Outer cylinder
1 16 0 -1 0 0 0 -16 0 1 0 16 0 0 2-4cyli.dat
1 16 0 0 0 16 0 0 0 -1 0 0 0 -16 1-4cyls.dat
1 16 0 0 0 16 0 0 0 -1 0 0 0 16 1-4cyls.dat
1 16 0 -1 0 0 0 -16 0 1 0 16 0 0 2-4edge.dat
1 16 0 -1 0 0 0 16 0 1 1 -16 0 0 2-4edge.dat
Status:
Awaiting Admin Review (CCN)
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
| MagFors | Certify |
Official parents and subparts
Part Events:
* line 20 : The flat subfile is scaled in Y direction.
line 27 : The flat subfile is scaled in Y direction.
line 27 : The flat subfile is scaled in Y direction.
Corrected scaling matrix on two flat prims as suggested.
2025-04-16 13:16:35
2025-04-16 20:42:18
2025-09-22 18:27:56
bump
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
This primitive is 1 LDU high. Existing primitive stud4s2 was used as guidance.
