Official File parts/41850.dat
Part Attributes:
File Header:

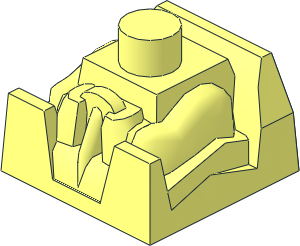

0 Minifig Brick 2 x 2 with Steering Wheel
0 Name: 41850.dat
0 Author: Jasper Speelman [JappaWakka]
0 !LDRAW_ORG Part UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink x351, Driver, Racers
0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\41850s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\41850s01.dat
1 16 0 -28 0 0 0 1 0 1 0 -1 0 0 studa.dat
1 16 0 -28 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
1 16 0 -24 0 6 0 0 0 -1 0 0 0 6 4-4edge.dat
1 16 0 -24 0 6 0 0 0 1 0 0 0 -6 4-4ndis.dat
1 16 0 -17 1 -3 0 0 0 -1 0 0 0 -3 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -21 1 3 0 0 0 4 0 0 0 3 4-4cylc.dat
1 16 0 -24 17.248 0 0 -14 0 1 0 1.326 0 0 rect.dat
2 24 16 0 16 16 -4.44 16
2 24 12.472 -7.96 15.969 16 -4.44 16
2 24 6.425 -3.524 -19.35 6.385 -3.524 -19.762
2 24 10.905 -10.645 15.969 10.552 -11.913 13.57
2 24 10.905 -10.645 15.969 12.472 -7.96 15.969
2 24 10.552 -11.913 13.57 8.757 -16.731 12.32
2 24 19.249 -12.776 19.208 20 0 20
2 24 14 -24 18.574 19.249 -12.776 19.208
2 24 9.845 -19.602 12.953 9.884 -24 11.039
2 24 -16 0 16 -16 -4.44 16
2 24 -12.472 -7.96 15.969 -16 -4.44 16
2 24 -6.425 -3.524 -19.35 -6.385 -3.524 -19.762
2 24 -10.905 -10.645 15.969 -10.838 -11.913 13.57
2 24 -10.905 -10.645 15.969 -12.472 -7.96 15.969
2 24 -10.838 -11.913 13.57 -8.757 -16.731 12.32
2 24 -19.249 -12.776 19.208 -20 0 20
2 24 -14 -24 18.574 -19.249 -12.776 19.208
2 24 -9.845 -19.602 12.953 -9.884 -24 11.039
2 24 3.322 -19.903 -8.89 -3.322 -19.903 -8.89
2 24 -9.884 -24 11.039 9.884 -24 11.039
2 24 9.845 -19.602 12.953 -9.845 -19.602 12.953
2 24 -6.385 -3.524 -19.762 6.385 -3.524 -19.762
2 24 -20 0 -20 20 0 -20
2 24 16 0 -16 -16 0 -16
2 24 -6.425 -3.524 -19.35 6.425 -3.524 -19.35
2 24 16 0 16 -16 0 16
2 24 20 0 20 -20 0 20
2 24 -10.905 -10.645 15.969 10.905 -10.645 15.969
2 24 -9.884 -24 -8.073 9.884 -24 -8.073
2 24 -8.757 -16.731 12.32 8.757 -16.731 12.32
3 16 -3.322 -19.903 -8.89 0 -20.345 -11.174 3.322 -19.903 -8.89
3 16 9.884 -24 11.039 -9.884 -24 11.039 0 -24 6
3 16 -6.233 -17 7.104 6.233 -17 7.104 0 -17 4
3 16 -16 0 -16 0 -4.44 -16 16 0 -16
3 16 6.425 -3.524 -19.35 0 -4.171 -19.35 -6.425 -3.524 -19.35
3 16 9.884 -24 -8.073 0 -24 -6 -9.884 -24 -8.073
4 16 -16 -4.44 16 -16 0 16 16 0 16 -12.472 -7.96 15.969
4 16 16 -4.44 16 12.472 -7.96 15.969 -12.472 -7.96 15.969 16 0 16
4 16 3.322 -19.903 -8.89 9.884 -24 -8.073 -9.884 -24 -8.073 -3.322 -19.903 -8.89
4 16 -10.838 -11.913 13.57 -10.905 -10.645 15.969 10.905 -10.645 15.969 10.552 -11.913 13.57
4 16 6.233 -17 7.104 -6.233 -17 7.104 -8.757 -16.731 12.32 8.757 -16.731 12.32
4 16 -9.884 -24 11.039 9.884 -24 11.039 9.845 -19.602 12.953 -9.845 -19.602 12.953
4 16 -8.757 -16.731 12.32 -10.838 -11.913 13.57 10.552 -11.913 13.57 8.757 -16.731 12.32
4 16 -20 0 -20 -16 0 -16 16 0 -16 20 0 -20
4 16 6.425 -3.524 -19.35 -6.425 -3.524 -19.35 -6.385 -3.524 -19.762 6.385 -3.524 -19.762
4 16 -14 -24 15.922 -9.845 -19.602 12.953 9.845 -19.602 12.953 14 -24 15.922
4 16 20 0 20 16 0 16 -16 0 16 -20 0 20
4 16 14 -24 18.574 19.249 -12.776 19.208 -19.249 -12.776 19.208 -14 -24 18.574
4 16 20 0 20 -20 0 20 -19.249 -12.776 19.208 19.249 -12.776 19.208
4 16 10.905 -10.645 15.969 -10.905 -10.645 15.969 -12.472 -7.96 15.969 12.472 -7.96 15.969
4 16 6.385 -3.524 -19.762 -6.385 -3.524 -19.762 -20 0 -20 20 0 -20
5 24 -3.322 -19.903 -8.89 0 -20.345 -11.174 3.322 -19.903 -8.89 -4.654 -20.133 -11.067
5 24 19.249 -12.776 19.208 -19.249 -12.776 19.208 20 0 20 -14 -24 18.574
5 24 6.425 -3.524 -19.35 0 -4.171 -19.35 -6.425 -3.524 -19.35 7.603 -8.747 -18.591
5 24 -12.472 -7.96 15.969 12.472 -7.96 15.969 16 0 16 10.905 -10.645 15.969
5 24 0 -4.44 -16 0 -5.139 -13.244 6.696 -5.139 -13.716 -6.696 -5.139 -13.716
5 24 0 -6.013 -11.565 0 -8.215 -11.073 -6.696 -6.239 -11.977 6.696 -6.239 -11.977
5 24 0 -19.714 -14.138 0 -17.648 -15.511 1.069 -19.148 -14.138 -1.069 -19.148 -14.138
5 24 0 -13.004 -6.514 0 -15.211 -5.3 -6.696 -11.912 -4.561 6.696 -11.912 -4.561
5 24 -6.385 -3.524 -19.762 -20 0 -20 20 0 -20 -19 -17 -19
5 24 20 0 -20 6.385 -3.524 -19.762 -6.385 -3.524 -19.762 19 -17 -19
5 24 -6.233 -17 7.104 -8.757 -16.731 12.32 8.757 -16.731 12.32 -8.834 -16.731 7.104
5 24 9.884 -24 -8.073 3.322 -19.903 -8.89 6.633 -19.947 -8.863 -9.884 -24 -8.073
5 24 0 -20.345 -11.174 3.322 -19.903 -8.89 4.654 -20.133 -11.067 -3.322 -19.903 -8.89
5 24 16 0 16 -12.472 -7.96 15.969 -16 -4.44 16 16 -4.44 16
5 24 0 -17.648 -15.511 0 -11.071 -18.439 1.061 -10.892 -18.038 -1.061 -10.892 -18.038
5 24 8.757 -16.731 12.32 6.233 -17 7.104 -6.233 -17 7.104 8.834 -16.731 7.104
5 24 0 -20.345 -11.174 0 -22.483 -11.067 -1.799 -22.213 -11.067 1.799 -22.213 -11.067
5 24 0 -15.211 -5.3 0 -17 -4.212 -6.696 -14.665 -3.464 6.696 -14.665 -3.464
5 24 0 -10.52 -10.334 0 -12.948 -8.847 6.696 -10.52 -8.447 -6.696 -10.52 -8.447
5 24 0 -4.171 -19.35 -6.425 -3.524 -19.35 -7.603 -8.747 -18.591 6.425 -3.524 -19.35
5 24 0 -22.483 -11.067 0 -22.483 -14.138 1.799 -22.212 -14.138 -1.799 -22.212 -14.138
5 24 -9.884 -24 -8.073 -3.322 -19.903 -8.89 -6.633 -19.947 -8.863 3.322 -19.903 -8.89
5 24 10.552 -11.913 13.57 -10.838 -11.913 13.57 -10.905 -10.645 15.969 8.757 -16.731 12.32
5 24 -6.233 -17 7.104 6.233 -17 7.104 0 -17 4 -8.757 -16.731 12.32
5 24 0 -5.139 -13.244 0 -6.013 -11.565 6.696 -5.139 -13.716 -6.696 -5.139 -13.716
5 24 0 -11.071 -18.439 0 -4.171 -19.35 1.061 -8.696 -18.333 -1.061 -8.696 -18.333
5 24 0 -8.215 -11.073 0 -10.52 -10.334 6.696 -7.29 -9.697 -6.696 -7.29 -9.697
5 24 0 -12.948 -8.847 0 -13.004 -6.514 -6.696 -11.295 -6.914 6.696 -11.295 -6.914
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-11-11 14:45:23
2024-11-11 14:49:53
On bricklink, this part is named x351, but when I uploaded a file called x351 the other day, the model was rejected. Not sure how to make sure that this part also shows up as that number.
2024-11-11 15:09:17
add a 4-4edge under the stud
Added 4-4edge to the bottom of the neck stud.
2024-11-11 18:07:13
Regarding the BL number, you could add:
0 !KEYWORDS Bricklink x351
0 !KEYWORDS Bricklink x351
2024-11-11 18:21:31
Header Edits
keywords:
to
Bricklink x351
2024-11-11 18:22:26
Description needs some discussion which I'll leave to the regular reviewers.
Missing all condlines, that need to be added between the halves.
The top surface is hiding the edge around the stud base. The top surface, in the subfile, need to be at y=24. Now it's at 24.072
Is it correct that the backside in concave?
The top surface is hiding the edge around the stud base. The top surface, in the subfile, need to be at y=24. Now it's at 24.072
Is it correct that the backside in concave?
2024-11-12 05:29:37
How do you add condlines I tried to click between two vertices but there's no key that confirms the condlines. Escape only cancels.
Attempted to fix some things like:
- Rounding the vertices (turned out to be a wrong export setting causing that)
- Merging a certain vertex at the bottom.
- Auto-adding some condlines and lines in the main part file.
- Replacing the hole at the bottom side with a cylinder and a disc.
- Rounding the vertices (turned out to be a wrong export setting causing that)
- Merging a certain vertex at the bottom.
- Auto-adding some condlines and lines in the main part file.
- Replacing the hole at the bottom side with a cylinder and a disc.
2024-11-12 14:41:53
replace this
1 16 0 -21 1 3 0 0 0 4 0 0 0 3 4-4cyli.dat
1 16 0 -21 1 3 0 0 0 1 0 0 0 3 4-4disc.dat
with this
0 BFC INVERTNEXT
1 16 0 -21 1 3 0 0 0 4 0 0 0 3 4-4cylc.dat
also replace the 1 16 0 -28 0 1 0 0 0 1 0 0 0 1 studa.dat
with this 1 16 0 -28 0 0 0 1 0 1 0 -1 0 0 studa.dat
1 16 0 -21 1 3 0 0 0 4 0 0 0 3 4-4cyli.dat
1 16 0 -21 1 3 0 0 0 1 0 0 0 3 4-4disc.dat
with this
0 BFC INVERTNEXT
1 16 0 -21 1 3 0 0 0 4 0 0 0 3 4-4cylc.dat
also replace the 1 16 0 -28 0 1 0 0 0 1 0 0 0 1 studa.dat
with this 1 16 0 -28 0 0 0 1 0 1 0 -1 0 0 studa.dat
Fixed the backside in the subpart and replaced the latest requested lines in the main part.
Hopefully merged all vertices that needed to be merged. Also added a 4-4ndis around the neck.
2024-11-13 10:39:47
wait a minute why is it invisible?
Maybe it was upside down, lemme check.
2024-11-13 10:43:14
Yes, it was upside down lol
Added a 4-4ndis on the bottom cylinder.
Added two lines to the back of the seat
Merged some vertices near the "feet"
I'm not sure how to add faces in LDPE. If it goes as well as manually adding (cond)lines (in other words, not possible for some reason) then I'm not sure if that would work out.
Added two lines to the back of the seat
Merged some vertices near the "feet"
I'm not sure how to add faces in LDPE. If it goes as well as manually adding (cond)lines (in other words, not possible for some reason) then I'm not sure if that would work out.
2024-11-13 18:26:31
The two 4-4ndis are inverted.
I recomend to delete the 4-4edge and studa and change the cyli to: 1 16 0 -32 0 6 0 0 0 8 0 0 0 6 4-4cylc.dat
I recomend to delete the 4-4edge and studa and change the cyli to: 1 16 0 -32 0 6 0 0 0 8 0 0 0 6 4-4cylc.dat
2024-11-13 18:48:47
How do I uninvert them?
2024-11-13 19:07:01
In LDPE, press F5 (this select the primitive/subfile selector); then click on the ndis and finaly press J on the keyboard. This also works with the common surfaces.
2024-11-13 19:51:19
How can you tell they're inverted by the way? I can't tell the difference in LDPE
2024-11-13 20:06:32
there is a BFC mode (also availiable here in the PT Preview) which turns the "backside" of faces red, then you can find it easier
2024-11-13 20:08:35
In LDPE, you can see a column with cubes at the left (first one).
If you go to the bottom of that column (and from bottom to top), you find a button with a yellow cube and a red face. Choose that.
If you go to the bottom of that column (and from bottom to top), you find a button with a yellow cube and a red face. Choose that.
2024-11-13 21:50:39
Javier wrote:
"I recomend to delete the 4-4edge and studa and change the cyli ...."
IMO this is wrong and the design with a cyli + a studa is the correct way to design a long stud.
A stud primitive should be used, and it is wrong to scale it in y.
"I recomend to delete the 4-4edge and studa and change the cyli ...."
IMO this is wrong and the design with a cyli + a studa is the correct way to design a long stud.
A stud primitive should be used, and it is wrong to scale it in y.
Did the backface thing, now they're not red anymore.
2024-11-14 17:42:59
Thank you by the way, Javier for the explanations :D
Tried to turn some triangles into quads. Managed to get the subpart dat file from 852 lines of text to 780 lines, so that probably means I did something different!
Improved the steering shaft and replaced part of it with a 8\2-4cyli.dat.
Improve the steering shaft even more (it wasn't long/tall enough).
Reworked the arms, hands, feet and seat. Also tweaked the steering shaft again.
Forgot to make a couple of edges sharp
Fixed some issues with lines (I added too many) and tweaked the model a little.
2024-11-18 13:37:50
Oh dangit! I keep seeing errors!!!
Fixed some more issues
2024-11-18 13:44:48
No, the shoulders/arms could be better
Hopefully the shoulder/arm looks good now
2024-11-18 16:03:58
the fingers shouldnt be separated from the wheel
Attached the fingers to the wheel
Small tweak
2024-11-18 18:01:29
you dont have to reupload the main file every time you only tweak the subfile...
2024-11-19 08:14:08
yes I do, the edges keep changing
Added seat side bend, tried to fix the gap between the wrist and the foot, and other small tweaks
2024-11-19 10:17:48
also in this image looks like the bottom of the steering shaft could use a 1-4cyls prim
https://img.bricklink.com/ItemImage/PN/4/x351.png
https://img.bricklink.com/ItemImage/PN/4/x351.png
Closed the gap between the hand and the foot, added the side line
Tried to make it more accurate, added two 1-4cyls primitives to the bottom of the steering shaft, made the outer parts more slope-y and replaced all the cond/edgelines generated by ExportLDraw (the blender plugin I use) with cond/edgelines by Edger2.
Joined some quads and moved them to the main file (making part of the model not symmetrical for optimization purposes), also fixed the feet to the coordinates Rene mentioned in the forum thread. Uploaded from my phone btw, hope that doesn't mess something up.
Optimized the model some more based on the latest suggestions in the forum post.
Based on the reference photos I decided on aligning each of the four outer sides as well as I could to a 86,65 degrees slope (90 degrees or upright minus 3,35 degrees). I also applied the steering shaft suggestion of Javier Orquera in a way I thought looked good
2024-11-24 16:47:42
How do we describe this thing?
I suggest, an can do the change: "Minifig Torso Brick 2 x 2 Driver".
I suggest, an can do the change: "Minifig Torso Brick 2 x 2 Driver".
2024-11-24 16:54:21
Minifig Brick 2 x 2 with Steering Wheel is how i would title it
2024-11-24 16:59:51
If it's not in the title, I would suggest putting "Racers" at least in the keywords.
I managed to get the missing condlines around the steering shaft to show up and fixed some vertices not aligning with the other vertices. Even though everything should align now, the vertices are not merged automatically somehow, so if the model needs adjusting later, I must remember to merge the vertices around the 8\2-4cyli.dat.
I also renamed the part's description to "Minifig Brick 2 x 2 with Steering Wheel" (I remembered reading that the numbers in 2 x 2 need a space in front of them if they're less than 2 digits each)
I added Racers to the keywords, but also driver as it's part of the bricklink part's description and people might be searching for that. Feel free to correct me on that.
I also renamed the part's description to "Minifig Brick 2 x 2 with Steering Wheel" (I remembered reading that the numbers in 2 x 2 need a space in front of them if they're less than 2 digits each)
I added Racers to the keywords, but also driver as it's part of the bricklink part's description and people might be searching for that. Feel free to correct me on that.
Forgot that you needed to separate keywords with a comma.
2024-11-26 16:02:01
The part have unmatched vertices in the same area (the shaft).
2024-11-27 02:47:19
I'm gonna go insane... Where? How can everyone see unmatched vertices and I can't?
I found a tool in ldpe called the Unificator that apparently can merge unmatched vertices that are close to each other. It seemed to have done something. Let me know if it was enough or if I need to increase the merge margin
2024-11-30 08:51:23
Is the part good enough now?
2024-11-30 09:57:04
should the "steering axle" get released? do lo-res cylis get upscaled?
2024-11-30 13:11:44
I don't understand what you mean
2024-11-30 13:16:44
I do know that in Bricklink Studio, there's a problem with the software where the high res primitives are loaded instead of the low res primitives....
2024-11-30 13:18:28
so that might be a problem?
2024-11-30 13:36:45
Personally I think releasing them into regular faces (if I understand the term correctly) would be a good idea to avoid cases like that. Shouldn't be too hard to do for me either.
Released the low-res primitives into regular faces (put them into the subpart as they were symmetrical anyway). I've made a back-up in case there is a change of mind, but I think it's a good idea because Bricklink Studio automatically replaces the low-res primitives with high-res ones.
Replaced the lines on the inside with condlines and added a bit of space between the outside and inside near the back. Also fixed the wrist a little.
Header Edits
keywords:
Bricklink x351, Driver, Racers
to
Bricklink x351, Driver, Racers, Rebrickable 41850, Brickowl 244912
Added keywords
