Official File parts/30219.dat
Part Attributes:
File Header:

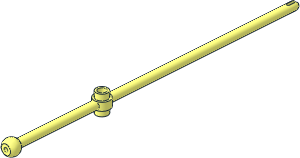

0 Bar 16L with Hollow Studs, Towball and Slit
0 Name: 30219.dat
0 Author: Andy Westrate [westrate]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS mast, sailboard
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2017-07-08 [MagFors] bfc'd, made a truncated ball
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show contents
0 // based on 476.dat
0 // studs
1 16 0 6 0 1 0 0 0 -1 0 0 0 1 stud2a.dat
1 16 0 -6 0 1 0 0 0 1 0 0 0 1 stud2a.dat
0 BFC INVERTNEXT
1 16 0 -6 0 4 0 0 0 12 0 0 0 4 4-4cyli.dat
1 16 0 -6 0 6 0 0 0 2 0 0 0 6 4-4cyli.dat
1 16 0 -4 0 2 0 0 0 1 0 0 0 2 4-4ring3.dat
1 16 0 -4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 6 0 6 0 0 0 -2 0 0 0 6 4-4cyli.dat
1 16 0 4 0 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
1 16 0 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -4 0 8 0 0 0 8 0 0 0 8 4-4cylo.dat
0 // towball end
1 16 0 0 -8 1 0 0 0 0 1 0 -1 0 cylj4x8.dat
1 16 0 0 -8 4 0 0 0 0 4 0 -84 0 4-4cyli.dat
1 16 0 0 -92 4 0 0 0 0 4 0 1 0 4-4edge.dat
1 16 0 0 -92 1 0 0 0 0 1 0 -1 0 4-4ring4.dat
1 16 0 0 -92 5 0 0 0 0 5 0 1 0 4-4edge.dat
1 16 0 0 -98 8 0 0 0 0 8 0 8 0 s\30219s01.dat
1 16 0 0 -98 8 0 0 0 0 8 0 -8 0 s\30219s01.dat
1 16 0 0 -98 0 0 8 -8 0 0 0 8 0 s\30219s01.dat
1 16 0 0 -98 0 0 8 -8 0 0 0 -8 0 s\30219s01.dat
1 16 0 0 -98 -8 0 0 0 0 -8 0 8 0 s\30219s01.dat
1 16 0 0 -98 -8 0 0 0 0 -8 0 -8 0 s\30219s01.dat
1 16 0 0 -98 0 0 -8 8 0 0 0 8 0 s\30219s01.dat
1 16 0 0 -98 0 0 -8 8 0 0 0 -8 0 s\30219s01.dat
1 16 0 0 -104 5 0 0 0 0 5 0 1 0 4-4edge.dat
1 16 0 0 -104 1 0 0 0 0 1 0 1 0 4-4ring4.dat
0 // inside of towball
1 16 0 0 -104 2 0 0 0 0 2 0 1 0 4-4edge.dat
1 16 0 0 -104 2 0 0 0 0 2 0 1 0 4-4ring1.dat
0 BFC INVERTNEXT
1 16 0 0 -104 2 0 0 0 0 2 0 4 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -100 2 0 0 0 0 2 0 2 0 4-8sphe.dat
0 // slit end
1 16 0 0 8 1 0 0 0 0 1 0 1 0 cylj4x8.dat
1 16 0 0 8 4 0 0 0 0 4 0 192 0 4-4cyli.dat
1 16 0 0 200 -1.53073 0 -3.69552 3.69552 0 -1.53073 0 8 0 3-8cyli.dat
1 16 0 0 200 1.53073 0 3.69552 -3.69552 0 1.53073 0 8 0 3-8cyli.dat
1 16 0 0 208 0 4 0 -4 0 0 0 0 4 s\30219s02.dat
1 16 0 0 208 0 4 0 4 0 0 0 0 4 s\30219s02.dat
1 16 0 0 208 0 -4 0 4 0 0 0 0 4 s\30219s02.dat
1 16 0 0 208 0 -4 0 -4 0 0 0 0 4 s\30219s02.dat
3 16 -1.5307 -3.6955 200 0 -4 200 -1.5307 -3.6955 201
3 16 0 -4 200 1.5307 -3.6955 200 1.5307 -3.6955 201
3 16 0 4 200 -1.5307 3.6955 200 -1.5307 3.6955 201
3 16 1.5307 3.6955 200 0 4 200 1.5307 3.6955 201
4 16 -1.5307 3.6955 201 -1.5307 -3.6955 201 0 -4 200 0 4 200
4 16 0 -4 200 1.5307 -3.6955 201 1.5307 3.6955 201 0 4 200
4 16 -1.5307 3.6955 208 -1.5307 -3.6955 208 -1.5307 -3.6955 201 -1.5307 3.6955 201
4 16 1.5307 -3.6955 208 1.5307 3.6955 208 1.5307 3.6955 201 1.5307 -3.6955 201
5 24 1.5307 -3.6955 200 1.5307 -3.6955 201 0 -4 200 2.8284 -2.8284 200
5 24 -1.5307 -3.6955 200 -1.5307 -3.6955 201 0 -4 200 -2.8284 -2.8284 200
5 24 1.5307 3.6955 200 1.5307 3.6955 201 0 4 200 2.8284 2.8284 200
5 24 -1.5307 3.6955 200 -1.5307 3.6955 201 0 4 200 -2.8284 2.8284 200
5 24 0 -4 200 0 4 200 -1.5307 -3.6955 201 1.5307 -3.6955 201
5 24 -1.5307 -3.6955 201 -1.5307 3.6955 201 0 -4 200 -1.5307 -3.6955 208
5 24 1.5307 -3.6955 201 1.5307 3.6955 201 0 -4 200 1.5307 -3.6955 208
2 24 0 -4 200 -1.5307 -3.6955 201
2 24 0 -4 200 1.5307 -3.6955 201
2 24 0 4 200 -1.5307 3.6955 201
2 24 0 4 200 1.5307 3.6955 201
2 24 -1.5307 -3.6955 201 -1.5307 -3.6955 208
2 24 1.5307 -3.6955 201 1.5307 -3.6955 208
2 24 -1.5307 3.6955 201 -1.5307 3.6955 208
2 24 1.5307 3.6955 201 1.5307 3.6955 208
2 24 -1.5307 -3.6955 208 -1.5307 -3.2068 209.728
2 24 1.5307 -3.6955 208 1.5307 -3.2068 209.728
2 24 -1.5307 3.6955 208 -1.5307 3.2068 209.728
2 24 1.5307 3.6955 208 1.5307 3.2068 209.728
2 24 -1.5307 -3.2068 209.728 -1.5307 -1.728 211.2068
2 24 -1.5307 3.2068 209.728 -1.5307 1.728 211.2068
2 24 1.5307 -3.2068 209.728 1.5307 -1.728 211.2068
2 24 1.5307 3.2068 209.728 1.5307 1.728 211.2068
2 24 -1.5307 -1.728 211.2068 -1.5307 0 211.6955
2 24 1.5307 -1.728 211.2068 1.5307 0 211.6955
2 24 -1.5307 1.728 211.2068 -1.5307 0 211.6955
2 24 1.5307 1.728 211.2068 1.5307 0 211.6955
4 16 -1.5307 3.2068 209.728 -1.5307 -3.2068 209.728 -1.5307 -3.6955 208 -1.5307 3.6955 208
4 16 1.5307 -3.6955 208 1.5307 -3.2068 209.728 1.5307 3.2068 209.728 1.5307 3.6955 208
4 16 -1.5307 -3.2068 209.728 -1.5307 3.2068 209.728 -1.5307 1.728 211.2068 -1.5307 -1.728 211.2068
4 16 1.5307 -1.728 211.2068 1.5307 1.728 211.2068 1.5307 3.2068 209.728 1.5307 -3.2068 209.728
3 16 -1.5307 -1.728 211.2068 -1.5307 1.728 211.2068 -1.5307 0 211.6955
3 16 1.5307 -1.728 211.2068 1.5307 0 211.6955 1.5307 1.728 211.2068
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Andy Westrate
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Magnus Forsberg,
3D View
