Unofficial File parts/6009177a.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on BrickOwl

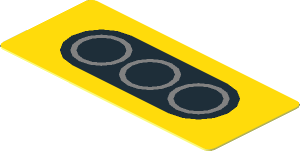

Sticker 0.8 x 1.8 with Three Metallic Silver Circles on Black Oval and Yellow Background
File Header:
0 Sticker 0.8 x 1.8 with Three Metallic Silver Circles on Black Oval and Yellow Background 0 Name: 6009177a.dat 0 Author: Gabriel Läufer [Dr.Bricktacular] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS BrickLink 30194stk01, Brickowl 43887, Rebrickable 10977
Show contents
0 // 0 !KEYWORDS Bricklink 30194stk01, Brickowl 43887, Rebrickable 10977 0 // 0 !KEYWORDS 458 Italia Polybag, Set 30194, Racers 0 // Sticker-Bottom 1 16 17.0 0 -7.0 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat 1 16 17.0 0 7.0 1 0 0 0 -1 0 0 0 1 1-4chrd.dat 1 16 -17.0 0 -7.0 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat 1 16 -17.0 0 7.0 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat 4 16 18.0 0 7.0 18.0 0 -7.0 17.0 0 -8.0 17.0 0 8.0 4 16 -18.0 0 7.0 -17.0 0 8.0 -17.0 0 -8.0 -18.0 0 -7.0 4 16 17.0 0 8.0 17.0 0 -8.0 -17.0 0 -8.0 -17.0 0 8.0 0 // Sticker-Side 1 16 17.0 -0.25 -7.0 1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat 1 16 17.0 -0.25 7.0 1 0 0 0 0.25 0 0 0 1 1-4cyli.dat 1 16 -17.0 -0.25 -7.0 -1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat 1 16 -17.0 -0.25 7.0 -1 0 0 0 0.25 0 0 0 1 1-4cyli.dat 4 16 18 0 7 18 -.25 7 18 -.25 -7 18 0 -7 4 16 -18 0 7 -18 0 -7 -18 -.25 -7 -18 -.25 7 4 16 -17 0 8 -17 -.25 8 17 -.25 8 17 0 8 4 16 -17 0 -8 17 0 -8 17 -.25 -8 -17 -.25 -8 0 // Sticker-Front 1 0 -8.25 -.25 0 3 0 0 0 1 0 0 0 3 4-4disc.dat 1 0 8.25 -.25 0 3 0 0 0 1 0 0 0 3 4-4disc.dat 1 0 0 -.25 0 3 0 0 0 1 0 0 0 3 4-4disc.dat 1 0 8.25 -.25 0 0 0 -3.75 0 1 0 3.75 0 0 2-4ndis.dat 1 0 0 -.25 0 3.75 0 0 0 1 0 0 0 3.75 4-4ndis.dat 1 0 -8.25 -.25 0 0 0 -1.25 0 1 0 1.25 0 0 2-4ring3.dat 1 0 8.25 -.25 0 0 0 1.25 0 1 0 -1.25 0 0 2-4ring3.dat 1 0 -8.25 -.25 0 0 0 3.75 0 1 0 -3.75 0 0 2-4ndis.dat 1 14 -8.25 -.25 0 0 0 -5 0 1 0 5 0 0 2-4ndis.dat 1 14 8.25 -.25 0 0 0 5 0 1 0 -5 0 0 2-4ndis.dat 1 14 17 -.25 7 1 0 0 0 1 0 0 0 1 1-4chrd.dat 1 14 17 -.25 -7 1 0 0 0 1 0 0 0 -1 1-4chrd.dat 1 14 -17 -.25 -7 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat 1 14 -17 -.25 7 -1 0 0 0 1 0 0 0 1 1-4chrd.dat 1 80 -8.25 -.25 0 .75 0 0 0 1 0 0 0 .75 4-4ring4.dat 1 80 0 -.25 0 .75 0 0 0 1 0 0 0 .75 4-4ring4.dat 1 80 8.25 -.25 0 .75 0 0 0 1 0 0 0 .75 4-4ring4.dat 4 0 -3.75 -.25 3.75 -4.5 -.25 3.75 -4.5 -.25 0 -3.75 -.25 0 4 0 4.5 -.25 3.75 3.75 -.25 3.75 3.75 -.25 0 4.5 -.25 0 4 0 4.5 -.25 0 3.75 -.25 0 3.75 -.25 -3.75 4.5 -.25 -3.75 4 0 8.25 -.25 5 -8.25 -.25 5 0 -.25 3.75 3.75 -.25 3.75 3 0 8.25 -.25 5 3.75 -.25 3.75 4.5 -.25 3.75 3 0 8.25 -.25 5 4.5 -.25 3.75 8.25 -.25 3.75 3 0 -8.25 -.25 5 -8.25 -.25 3.75 -4.5 -.25 3.75 3 0 -8.25 -.25 5 -4.5 -.25 3.75 -3.75 -.25 3.75 3 0 -8.25 -.25 5 -3.75 -.25 3.75 0 -.25 3.75 4 0 0 -.25 -3.75 -8.25 -.25 -5 8.25 -.25 -5 3.75 -.25 -3.75 3 0 4.5 -.25 -3.75 3.75 -.25 -3.75 8.25 -.25 -5 3 0 8.25 -.25 -3.75 4.5 -.25 -3.75 8.25 -.25 -5 3 0 0 -.25 -3.75 -3.75 -.25 -3.75 -8.25 -.25 -5 3 0 -3.75 -.25 -3.75 -4.5 -.25 -3.75 -8.25 -.25 -5 3 0 -8.25 -.25 -3.75 -8.25 -.25 -5 -4.5 -.25 -3.75 4 0 -3.75 -.25 0 -4.5 -.25 0 -4.5 -.25 -3.75 -3.75 -.25 -3.75 4 14 13.25 -.25 -5 17 -.25 -8 18 -.25 -7 18 -.25 7 3 14 -18 -.25 7 -18 -.25 -7 -13.25 -.25 -5 3 14 13.25 -.25 0 13.25 -.25 -5 18 -.25 7 4 14 18 -.25 7 17 -.25 8 13.25 -.25 5 13.25 -.25 0 3 14 -13.25 -.25 -5 -13.25 -.25 0 -18 -.25 7 4 14 -13.25 -.25 0 -13.25 -.25 5 -17 -.25 8 -18 -.25 7 4 14 -13.25 -.25 -5 -18 -.25 -7 -17 -.25 -8 -8.25 -.25 -5 4 14 8.25 -.25 -5 -8.25 -.25 -5 -17 -.25 -8 17 -.25 -8 3 14 13.25 -.25 -5 8.25 -.25 -5 17 -.25 -8 4 14 -17 -.25 8 -8.25 -.25 5 8.25 -.25 5 17 -.25 8 3 14 8.25 -.25 5 13.25 -.25 5 17 -.25 8 3 14 -17 -.25 8 -13.25 -.25 5 -8.25 -.25 5
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
This part has the following errors
  • Numbers cannot have trailing zeros
    Line text: 1 16 17.0 0 -7.0 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 17.0 0 7.0 1 0 0 0 -1 0 0 0 1 1-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 -17.0 0 -7.0 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 -17.0 0 7.0 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 4 16 18.0 0 7.0 18.0 0 -7.0 17.0 0 -8.0 17.0 0 8.0
  • Numbers cannot have trailing zeros
    Line text: 4 16 -18.0 0 7.0 -17.0 0 8.0 -17.0 0 -8.0 -18.0 0 -7.0
  • Numbers cannot have trailing zeros
    Line text: 4 16 17.0 0 8.0 17.0 0 -8.0 -17.0 0 -8.0 -17.0 0 8.0
  • Numbers cannot have trailing zeros
    Line text: 1 16 17.0 -0.25 -7.0 1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 17.0 -0.25 7.0 1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 -17.0 -0.25 -7.0 -1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 -17.0 -0.25 7.0 -1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
Current Votes:

None

Official parents and subparts
Part Events:
Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
initially submitted the part.
2024-11-13 19:29:23
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2024-11-13 20:04:08
all outer rim faces are inverted
mirror silver (383)? what should be used here?
if you are using prims for the inside and outside of the round things, consider the "rings and cones" finder in LDPE, (finds something like that:
1 80 0 -.25 0 .6 0 0 0 1 0 0 0 .6 4-4ring5.dat
1 80 0 -.25 0 .2 0 0 0 1 0 0 0 .2 4-4ring18.dat
1 0 8.25 -.25 0 0 0 .95 0 1 0 .95 0 0 2-4ring4.dat
1 0 8.25 -.25 0 0 0 .25 0 1 0 .25 0 0 2-4ring19.dat
or change the inner ring size from 3.8 to 3.75 or 4, then its even easier with ring prims)
Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
submitted a new version of the part.
2024-11-13 20:46:34
Corrected outer rims. Changed color from 383 to 80. Have used ring-and-cones for sticker sheet 6083353 before but decied against to use it here for no specific reason. Will use it in the future. But can also change it here if necessary.
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2024-11-13 21:21:47
Header Edits

keywords:

to

description:
Sticker 0.8 x 1.8 with three Metallic Silver Circles on Black Oval and Yellow Background
to
Sticker 0.8 x 1.8 with Three Metallic Silver Circles on Black Oval and Yellow Background

Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-11-13 21:56:55
mixing that will create gaps/overlaps on prim substitution...
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2024-11-13 22:04:36
Yes, mixing curved primitives and quads like this is not good.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-11-13 22:09:35
reducing the outer dimension of the ring from 3.8 to 3.75 would allow to use a .75 ring4 (silver) and a 1.25 ring3 (black)
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
made the following comment.
2024-12-26 09:59:15
I agree with Rene and Magnus's comments.
Or, ering and tang prims will work if you don't like to change the dimensions.
I'm not sure if this meets "hold" criteria.
Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
submitted a new version of the part.
2024-12-29 20:39:47
Used more prims. Hopefully better now.
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2024-12-29 21:12:33
much better.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2024-12-30 17:58:27
Please don't use the obsoleted rin-primitives.

This would remove a few vertices:
1 12 8.25 -.25 0 0 0 3.8 0 1 0 -3.8 0 0 1-8tndis.dat
1 12 8.25 -.25 0 0 0 5 0 1 0 -5 0 0 1-8chrd.dat
3 12 8.25 -.25 -5 11.7855 -.25 -3.5355 10.93698 -.25 -3.8
3 12 8.25 -.25 -5 10.93698 -.25 -3.8 8.25 -.25 -3.8
3 12 10.93698 -.25 -3.8 11.7855 -.25 -3.5355 10.93698 -.25 -2.68698

1 11 8.25 -.25 0 0 0 3 0 1 0 -3 0 0 1-8tang.dat
1 11 8.25 -.25 0 0 0 3.8 0 1 0 -3.8 0 0 1-8chrd.dat
3 11 8.25 -.25 -3 8.25 -.25 -3.8 8.8467 -.25 -3
3 11 8.8467 -.25 -3 8.25 -.25 -3.8 9.3981 -.25 -2.7717
3 11 9.3981 -.25 -2.7717 8.25 -.25 -3.8 10.93698 -.25 -2.68698
3 11 9.3981 -.25 -2.7717 10.93698 -.25 -2.68698 9.9495 -.25 -2.5434
3 11 9.9495 -.25 -2.5434 10.93698 -.25 -2.68698 10.3713 -.25 -2.1213

... but I think Rene's idea of reducing the ring to 3.75 is better.
Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
submitted a new version of the part.
2024-12-30 22:14:29
Changed to .75 ring4 (silver) and a 1.25 ring3 (black).
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-12-30 22:19:35
has some t-junk now (but that is not critical)
Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
submitted a new version of the part.
2024-12-30 22:36:12
Number of t-junctions reduced.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2026-01-18 11:37:12
stickerback? https://library.ldraw.org/parts/46836
7.0 and 17.0 cause errors (but all of them are in stickerback section)
