Unofficial File parts/s/52024s02.dat
File Header:

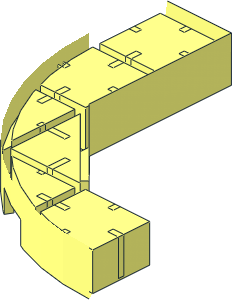

0 ~Duplo Building Wall 4 x 6 x 6 Curved Turret - Castle - Half of Bottom
0 Name: s\52024s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // made to fit both 52024 and 52025
4 16 -118.968 0 24.34 -120 0 40 -120 24 40 -118.968 24 24.34
4 16 -115.908 0 8.944 -118.968 0 24.34 -118.968 24 24.34 -115.908 24 8.944
4 16 -103.92 0 -20 -103.92 12 -20 -95.208 12 -33.056 -95.208 0 -33.056
4 16 -95.208 0 -33.056 -95.208 12 -33.056 -92.8597 12 -35.7308 -84.852 0 -44.852
4 16 -31.056 0 -75.908 -45.924 0 -70.868 -45.924 24 -70.868 -31.056 24 -75.908
4 16 -15.66 0 -78.968 -31.056 0 -75.908 -31.056 24 -75.908 -15.66 24 -78.968
5 24 -120 24 40 -120 0 40 -120 24 55.804 -118.968 24 24.34
5 24 -118.968 24 24.34 -118.968 0 24.34 -120 24 40 -115.908 24 8.944
5 24 -95.208 0 -33.056 -95.208 12 -33.056 -103.92 24 -20 -84.852 24 -44.852
5 24 -31.056 24 -75.908 -31.056 0 -75.908 -45.924 24 -70.868 -15.66 24 -78.968
0 // helm outline
4 16 -84 24 42 -84 24 38 -116 24 38 -116 24 42
4 16 -107.1724 24 -4.3932 -108.2018 24 -11.3254 -110.868 24 -5.924 -107.9837 24 -2
3 16 -104.8548 24 -9.0885 -108.2018 24 -11.3254 -107.1724 24 -4.3932
3 16 -116 24 38 -120 24 40 -116 24 42
4 16 -116 24 76 -116 24 42 -120 24 40 -120 24 80
4 16 -116 24 76 -120 24 80 -80 24 80 -84 24 76
3 16 -84 24 76 -80 24 80 -84 24 42
4 16 -84 24 38 -84 24 42 -80 24 80 -80 24 0
4 16 -70.4882 24 -14.5118 -82 24 -3 -80 24 0 -70.4882 24 -9.5118
4 16 -54.0148 24 -30.9852 -51.5148 24 -28.4852 -40 24 -40 -43 24 -42
3 16 -49.0885 24 -69.306 -49.0885 24 -64.8548 -44.3932 24 -67.1724
4 16 -45.924 24 -70.868 -49.0885 24 -69.306 -44.3932 24 -67.1724 -42 24 -67.9837
3 16 -92.8597 24 -29.384 -92.0344 24 -30.6208 -92.8597 24 -35.7308
4 16 -84.852 24 -44.852 -92.8597 24 -35.7308 -92.0344 24 -30.6208 -86 24 -37.494282
4 16 -71.2824 24 -56.3915 -73.056 24 -55.208 -70.6208 24 -52.0344 -69.384 24 -52.8597
4 16 -84.852 24 -44.852 -77.494282 24 -46 -70.6208 24 -52.0344 -73.056 24 -55.208
3 16 -82 24 -42 -84.852 24 -44.852 -86 24 -37.494282
3 16 -84.852 24 -44.852 -82 24 -42 -77.494282 24 -46
0 // bottom outside
4 16 -80 24 0 -80 0 0 -70.4882 12 -9.5118 -70.4882 24 -9.5118
4 16 -80 0 0 -40 0 -40 -51.5148 12 -28.4852 -70.4882 12 -9.5118
4 16 -51.5148 12 -28.4852 -40 0 -40 -40 24 -40 -51.5148 24 -28.4852
1 16 -80 12 40 0 -1 0 -12 0 0 0 0 -40 rect.dat
2 24 -80 24 80 -120 24 80
2 24 -120 24 40 -120 24 80
2 24 -80 0 80 -116 0 80
4 16 -120 24 80 -116 0 80 -80 0 80 -80 24 80
2 24 -120 24 40 -118.968 24 24.34
2 24 -118.968 24 24.34 -115.908 24 8.944
2 24 -115.908 24 8.944 -110.868 24 -5.924
2 24 -110.868 24 -5.924 -108.2018 24 -11.3254
2 24 -92.8597 24 -35.7308 -84.852 24 -44.852
2 24 -84.852 24 -44.852 -73.056 24 -55.208
2 24 -73.056 24 -55.208 -71.2824 24 -56.3915
2 24 -49.0885 24 -69.306 -45.924 24 -70.868
2 24 -45.924 24 -70.868 -31.056 24 -75.908
2 24 -31.056 24 -75.908 -15.66 24 -78.968
2 24 -15.66 24 -78.968 0 24 -80
4 16 -115.908 0 8.944 -115.908 24 8.944 -110.868 24 -5.924 -110.868 0 -5.924
4 16 -110.868 24 -5.924 -108.2018 24 -11.3254 -108.2018 12 -11.3254 -110.868 0 -5.924
4 16 -110.868 0 -5.924 -108.2018 12 -11.3254 -103.92 12 -20 -103.92 0 -20
4 16 -92.8597 12 -35.7308 -92.8597 24 -35.7308 -84.852 24 -44.852 -84.852 0 -44.852
4 16 -84.852 0 -44.852 -84.852 24 -44.852 -73.056 24 -55.208 -73.056 0 -55.208
4 16 -73.056 0 -55.208 -73.056 24 -55.208 -71.2824 24 -56.3915 -71.2824 12 -56.3915
4 16 -73.056 0 -55.208 -71.2824 12 -56.3915 -60 12 -63.92 -60 0 -63.92
4 16 -60 0 -63.92 -60 12 -63.92 -49.0885 12 -69.306 -45.924 0 -70.868
4 16 -49.0885 12 -69.306 -49.0885 24 -69.306 -45.924 24 -70.868 -45.924 0 -70.868
4 16 -15.66 0 -78.968 -15.66 24 -78.968 0 24 -80 0 0 -80
0 // conditional lines
5 24 -115.908 0 8.944 -115.908 24 8.944 -118.968 0 24.34 -110.868 0 -5.924
5 24 -110.868 0 -5.924 -110.868 24 -5.924 -115.908 0 8.944 -103.92 0 -20
5 24 -103.92 0 -20 -103.92 12 -20 -110.868 0 -5.924 -95.208 0 -33.056
5 24 -84.852 0 -44.852 -84.852 24 -44.852 -95.208 0 -33.056 -73.056 0 -55.208
5 24 -73.056 0 -55.208 -73.056 24 -55.208 -84.852 0 -44.852 -60 0 -63.92
5 24 -60 0 -63.92 -60 12 -63.92 -73.056 0 -55.208 -45.924 0 -70.868
5 24 -45.924 0 -70.868 -45.924 24 -70.868 -60 0 -63.92 -31.056 0 -75.908
5 24 -15.66 0 -78.968 -15.66 24 -78.968 -31.056 0 -75.908 0 0 -80
5 24 0 0 -80 0 24 -80 -15.66 0 -78.968 15.804 0 -80
0 // stud opening on outside front right
2 24 -49.0885 12 -64.8548 -49.0885 24 -64.8548
2 24 -69.384 12 -52.8597 -69.384 24 -52.8597
2 24 -71.2824 12 -56.3915 -71.2824 24 -56.3915
2 24 -71.2824 12 -56.3915 -60 12 -63.92
2 24 -60 12 -63.92 -49.0885 12 -69.306
2 24 -58 12 -60.456 -49.0885 12 -64.8548
2 24 -49.0885 12 -64.8548 -49.0885 12 -69.306
2 24 -49.0885 24 -69.306 -49.0885 12 -69.306
2 24 -49.0885 24 -64.8548 -49.0885 24 -69.306
2 24 -58 12 -60.456 -69.384 12 -52.8597
2 24 -69.384 12 -52.8597 -71.2824 12 -56.3915
2 24 -69.384 24 -52.8597 -71.2824 24 -56.3915
4 16 -49.0885 12 -69.306 -49.0885 12 -64.8548 -49.0885 24 -64.8548 -49.0885 24 -69.306
4 16 -71.2824 24 -56.3915 -69.384 24 -52.8597 -69.384 12 -52.8597 -71.2824 12 -56.3915
4 16 -60 12 -63.92 -58 12 -60.456 -49.0885 12 -64.8548 -49.0885 12 -69.306
4 16 -69.384 12 -52.8597 -58 12 -60.456 -60 12 -63.92 -71.2824 12 -56.3915
0 // stud opening on right side
2 24 -108.2018 12 -11.3254 -108.2018 24 -11.3254
2 24 -92.8597 12 -35.7308 -92.8597 24 -35.7308
2 24 -103.92 12 -20 -108.2017 12 -11.3257
2 24 -92.8597 12 -35.7308 -95.208 12 -33.056
2 24 -92.8597 12 -35.7308 -92.8597 12 -29.384
2 24 -92.8597 24 -35.7308 -92.8597 24 -29.384
2 24 -95.208 12 -33.056 -103.92 12 -20
2 24 -104.8548 12 -9.0885 -108.2018 12 -11.3254
2 24 -104.8548 24 -9.0885 -108.2018 24 -11.3254
4 16 -104.8548 24 -9.0885 -104.8548 12 -9.0885 -108.2018 12 -11.3254 -108.2018 24 -11.3254
4 16 -103.92 12 -20 -108.2018 12 -11.3254 -104.8548 12 -9.0885 -100.456 12 -18
4 16 -95.208 12 -33.056 -103.92 12 -20 -100.456 12 -18 -92.8597 12 -29.384
3 16 -95.208 12 -33.056 -92.8597 12 -29.384 -92.8597 12 -35.7308
4 16 -92.8597 24 -29.384 -92.8597 24 -35.7308 -92.8597 12 -35.7308 -92.8597 12 -29.384
0 // first box on right
0 BFC INVERTNEXT
1 16 -100 24 59 -16 0 0 0 -20 0 0 0 -17 box5.dat
1 16 -86 4 60 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -114 4 60 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -100 4 74 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -100 4 45 -1.5 0 0 0 19 0 0 0 3 box4-1.dat
0 // helm
4 16 -84 24 2 -86 24 -2 -107.9837 24 -2 -109.3396 24 2
4 16 -86 24 -2 -82 24 -3 -82 24 -42 -86 24 -37.4943
4 16 -82 24 -3 -86 24 -2 -84 24 2 -80 24 0
3 16 -80 24 0 -84 24 2 -84 24 38
4 16 -118.968 24 24.34 -120 24 40 -116 24 38 -115.0024 24 24.862
3 16 -118.968 24 24.34 -115.0024 24 24.862 -112.0444 24 9.9792
4 16 -115.908 24 8.944 -118.968 24 24.34 -112.0444 24 9.9792 -109.3396 24 2
4 16 -115.908 24 8.944 -109.3396 24 2 -107.9837 24 -2 -110.868 24 -5.924
0 // stud opening
2 24 -92.8597 12 -29.384 -92.8597 24 -29.384
2 24 -104.8548 12 -9.0885 -104.8548 24 -9.0885
2 24 -100.456 12 -18 -104.8548 12 -9.0885
2 24 -92.8597 12 -29.384 -100.456 12 -18
0 // larger box
2 24 -109.3396 4 2 -84 4 2
2 24 -84 4 2 -84 4 38
2 24 -84 4 38 -116 4 38
2 24 -116 4 38 -115.0024 4 24.862
2 24 -109.3396 24 2 -84 24 2
2 24 -84 24 2 -84 24 38
2 24 -84 24 38 -116 24 38
2 24 -116 24 38 -115.0024 24 24.862
2 24 -109.3396 24 2 -109.3396 4 2
2 24 -84 24 2 -84 4 2
2 24 -116 24 38 -116 4 38
2 24 -84 24 38 -84 4 38
2 24 -112.0444 4 9.9792 -115.0024 4 24.862
2 24 -109.3396 4 2 -112.0444 4 9.9792
2 24 -112.0444 24 9.9792 -115.0024 24 24.862
2 24 -109.3396 24 2 -112.0444 24 9.9792
4 16 -112.0444 4 9.9792 -84 4 38 -84 4 2 -109.3396 4 2
4 16 -112.0444 4 9.9792 -115.0024 4 24.862 -116 4 38 -84 4 38
4 16 -109.3396 24 2 -109.3396 4 2 -84 4 2 -84 24 2
4 16 -84 24 2 -84 4 2 -84 4 38 -84 24 38
4 16 -84 24 38 -84 4 38 -116 4 38 -116 24 38
4 16 -116 24 38 -116 4 38 -115.0024 4 24.862 -115.0024 24 24.862
4 16 -115.0024 4 24.862 -112.0444 4 9.9792 -112.0444 24 9.9792 -115.0024 24 24.862
4 16 -112.0444 4 9.9792 -109.3396 4 2 -109.3396 24 2 -112.0444 24 9.9792
1 16 -86 4 20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -114 4 20 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -100 4 35 1.5 0 0 0 19 0 0 0 -3 box4-1.dat
1 16 -100 4 5 -1.5 0 0 0 19 0 0 0 3 box4-1.dat
0 // smaller box
4 16 -107.9837 4 -2 -107.9837 24 -2 -86 24 -2 -86 4 -2
4 16 -107.1724 4 -4.3932 -107.1724 24 -4.3932 -107.9837 24 -2 -107.9837 4 -2
4 16 -104.8548 12 -9.0885 -104.8548 24 -9.0885 -107.1724 24 -4.3932 -107.1724 4 -4.3932
4 16 -104.8548 12 -9.0885 -107.1724 4 -4.3932 -100.456 4 -18 -100.456 12 -18
4 16 -100.456 12 -18 -100.456 4 -18 -92.0344 4 -30.6208 -92.8597 12 -29.384
4 16 -92.0344 4 -30.6208 -92.0344 24 -30.6208 -92.8597 24 -29.384 -92.8597 12 -29.384
4 16 -92.0344 24 -30.6208 -92.0344 4 -30.6208 -86 4 -37.4943 -86 24 -37.4943
4 16 -86 24 -2 -86 24 -37.4943 -86 4 -37.4943 -86 4 -2
2 24 -86 24 -2 -86 4 -2
2 24 -86 24 -2 -107.9837 24 -2
2 24 -107.9837 24 -2 -107.9837 4 -2
2 24 -107.9837 24 -2 -107.1724 24 -4.3932
2 24 -107.1724 24 -4.3932 -104.8548 24 -9.0885
2 24 -92.8597 24 -29.384 -92.0344 24 -30.6208
2 24 -92.0344 24 -30.6208 -86 24 -37.4943
2 24 -86 24 -37.4943 -86 4 -37.4943
2 24 -86 24 -37.4943 -86 24 -2
2 24 -86 4 -2 -107.9837 4 -2
2 24 -107.9837 4 -2 -107.1724 4 -4.3932
2 24 -107.1724 4 -4.3932 -100.456 4 -18
2 24 -100.456 4 -18 -92.0344 4 -30.6208
2 24 -92.0344 4 -30.6208 -86 4 -37.4943
2 24 -86 4 -37.4943 -86 4 -2
4 16 -107.1724 4 -4.3932 -107.9837 4 -2 -86 4 -2 -100.456 4 -18
4 16 -92.0344 4 -30.6208 -100.456 4 -18 -86 4 -2 -86 4 -37.4943
1 16 -87 4 -20 0 0 -1 0 19 0 -1.5 0 0 box4-1.dat
1 16 -100 4 -5 1.5 0 0 0 19 0 0 0 -3 box4-1.dat
0 // neighboring box
2 24 -82 4 -3 -82 24 -3
4 16 -82 24 -3 -82 4 -3 -82 4 -42 -82 24 -42
1 16 -77 4 -20 0 0 5 0 19 0 -1.5 0 0 box4-1.dat
0 // helm
4 16 -42 24 -67.9837 -42 24 -46 -38 24 -44 -38 24 -69.3396
4 16 -82 24 -42 -43 24 -42 -42 24 -46 -77.4943 24 -46
4 16 -38 24 -44 -42 24 -46 -43 24 -42 -40 24 -40
3 16 -38 24 -44 -40 24 -40 -2 24 -44
4 16 -2 24 -76 0 24 -80 -15.66 24 -78.968 -15.138 24 -75.0024
3 16 -15.138 24 -75.0024 -15.66 24 -78.968 -30.0208 24 -72.0444
4 16 -30.0208 24 -72.0444 -15.66 24 -78.968 -31.056 24 -75.908 -38 24 -69.3396
4 16 -42 24 -67.9837 -38 24 -69.3396 -31.056 24 -75.908 -45.924 24 -70.868
0 // larger box
2 24 -38 4 -69.3396 -38 4 -44
2 24 -38 4 -44 -2 4 -44
2 24 -2 4 -44 -2 4 -76
2 24 -2 4 -76 -15.138 4 -75.0024
2 24 -38 24 -69.3396 -38 24 -44
2 24 -38 24 -44 -2 24 -44
2 24 -2 24 -44 -2 24 -76
2 24 -2 24 -76 -15.138 24 -75.0024
2 24 -38 24 -69.3396 -38 4 -69.3396
2 24 -38 24 -44 -38 4 -44
2 24 -2 24 -76 -2 4 -76
2 24 -2 24 -44 -2 4 -44
2 24 -30.0208 4 -72.0444 -15.138 4 -75.0024
2 24 -38 4 -69.3396 -30.0208 4 -72.0444
2 24 -30.0208 24 -72.0444 -15.138 24 -75.0024
2 24 -38 24 -69.3396 -30.0208 24 -72.0444
4 16 -38 4 -44 -2 4 -44 -30.0208 4 -72.0444 -38 4 -69.3396
4 16 -2 4 -76 -15.138 4 -75.0024 -30.0208 4 -72.0444 -2 4 -44
4 16 -38 4 -44 -38 4 -69.3396 -38 24 -69.3396 -38 24 -44
4 16 -2 4 -44 -38 4 -44 -38 24 -44 -2 24 -44
4 16 -2 4 -76 -2 4 -44 -2 24 -44 -2 24 -76
4 16 -15.138 4 -75.0024 -2 4 -76 -2 24 -76 -15.138 24 -75.0024
4 16 -30.0208 24 -72.0444 -30.0208 4 -72.0444 -15.138 4 -75.0024 -15.138 24 -75.0024
4 16 -38 24 -69.3396 -38 4 -69.3396 -30.0208 4 -72.0444 -30.0208 24 -72.0444
1 16 -20 4 -46 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -20 4 -74 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 -5 4 -60 0 0 -3 0 19 0 1.5 0 0 box4-1.dat
1 16 -35 4 -60 0 0 3 0 19 0 -1.5 0 0 box4-1.dat
0 // smaller box
4 16 -42 24 -46 -42 24 -67.9837 -42 4 -67.9837 -42 4 -46
4 16 -42 24 -67.9837 -44.3932 24 -67.1724 -44.3932 4 -67.1724 -42 4 -67.9837
4 16 -44.3932 24 -67.1724 -49.0885 24 -64.8548 -49.0885 12 -64.8548 -44.3932 4 -67.1724
4 16 -58 4 -60.456 -44.3932 4 -67.1724 -49.0885 12 -64.8548 -58 12 -60.456
4 16 -70.6208 4 -52.0344 -58 4 -60.456 -58 12 -60.456 -69.384 12 -52.8597
4 16 -69.384 24 -52.8597 -70.6208 24 -52.0344 -70.6208 4 -52.0344 -69.384 12 -52.8597
4 16 -77.4943 4 -46 -70.6208 4 -52.0344 -70.6208 24 -52.0344 -77.4943 24 -46
4 16 -77.4943 4 -46 -77.4943 24 -46 -42 24 -46 -42 4 -46
2 24 -42 24 -46 -42 4 -46
2 24 -42 24 -46 -42 24 -67.9837
2 24 -42 24 -67.9837 -42 4 -67.9837
2 24 -42 24 -67.9837 -44.3932 24 -67.1724
2 24 -44.3932 24 -67.1724 -49.0885 24 -64.8548
2 24 -69.384 24 -52.8597 -70.6208 24 -52.0344
2 24 -70.6208 24 -52.0344 -77.4943 24 -46
2 24 -77.4943 24 -46 -77.4943 4 -46
2 24 -77.4943 24 -46 -42 24 -46
2 24 -42 4 -46 -42 4 -67.9837
2 24 -42 4 -67.9837 -44.3932 4 -67.1724
2 24 -44.3932 4 -67.1724 -58 4 -60.456
2 24 -58 4 -60.456 -70.6208 4 -52.0344
2 24 -70.6208 4 -52.0344 -77.4943 4 -46
2 24 -77.4943 4 -46 -42 4 -46
4 16 -42 4 -46 -42 4 -67.9837 -44.3932 4 -67.1724 -58 4 -60.456
4 16 -42 4 -46 -58 4 -60.456 -70.6208 4 -52.0344 -77.4943 4 -46
1 16 -60 4 -47 -1.5 0 0 0 19 0 0 0 -1 box4-1.dat
1 16 -45 4 -60 0 0 -3 0 19 0 1.5 0 0 box4-1.dat
0 // neighboring box
2 24 -43 4 -42 -43 24 -42
4 16 -82 4 -42 -43 4 -42 -43 24 -42 -82 24 -42
1 16 -60 4 -37 -1.5 0 0 0 19 0 0 0 5 box4-1.dat
0 // trianglular box
2 24 -82 4 -42 -82 24 -42
2 24 -82 24 -3 -82 24 -42
2 24 -82 24 -42 -43 24 -42
2 24 -82 24 -3 -70.4882 24 -14.5118
2 24 -80 24 0 -70.4882 24 -9.5118
2 24 -70.4882 24 -9.5118 -70.4882 24 -14.5118
2 24 -43 24 -42 -54.0148 24 -30.9852
2 24 -40 24 -40 -51.5148 24 -28.4852
2 24 -54.0148 24 -30.9852 -51.5148 24 -28.4852
4 16 -70.4882 12 -14.5118 -82 4 -3 -82 24 -3 -70.4882 24 -14.5118
4 16 -54.0148 12 -30.9852 -43 4 -42 -82 4 -3 -70.4882 12 -14.5118
4 16 -43 24 -42 -43 4 -42 -54.0148 12 -30.9852 -54.0148 24 -30.9852
3 16 -82 4 -3 -43 4 -42 -82 4 -42
2 24 -82 4 -3 -82 4 -42
2 24 -82 4 -42 -43 4 -42
2 24 -43 4 -42 -82 4 -3
2 24 -80 0 0 -40 0 -40
0 // stud opening on inside
2 24 -70.4882 12 -9.5118 -70.4882 24 -9.5118
2 24 -54.0148 12 -30.9852 -54.0148 24 -30.9852
2 24 -51.5148 12 -28.4852 -51.5148 24 -28.4852
2 24 -70.4882 12 -14.5118 -70.4882 24 -14.5118
4 16 -54.0148 12 -30.9852 -70.4882 12 -14.5118 -70.4882 12 -9.5118 -51.5148 12 -28.4852
4 16 -70.4882 24 -14.5118 -70.4882 24 -9.5118 -70.4882 12 -9.5118 -70.4882 12 -14.5118
4 16 -51.5148 24 -28.4852 -54.0148 24 -30.9852 -54.0148 12 -30.9852 -51.5148 12 -28.4852
2 24 -70.4882 12 -9.5118 -70.4882 12 -14.5118
2 24 -51.5148 12 -28.4852 -54.0148 12 -30.9852
2 24 -70.4882 12 -9.5118 -51.5148 12 -28.4852
2 24 -70.4882 12 -14.5118 -54.0148 12 -30.9852
5 24 -115.0024 4 24.862 -115.0024 24 24.862 -112.0444 24 9.9792 -116 24 38
5 24 -107.1724 4 -4.3932 -107.1724 24 -4.3932 -107.9837 24 -2 -104.8548 24 -9.0885
5 24 -15.138 24 -75.0024 -15.138 4 -75.0024 -30.0208 4 -72.0444 -2 4 -76
5 24 -30.0208 24 -72.0444 -30.0208 4 -72.0444 -38 4 -69.3396 -15.138 4 -75.0024
5 24 -44.3932 24 -67.1724 -44.3932 4 -67.1724 -42 4 -67.9837 -49.0885 12 -64.8548
5 24 -112.0444 24 9.9792 -112.0444 4 9.9792 -109.3396 4 2 -115.0024 4 24.862
5 24 -100.456 12 -18 -100.456 4 -18 -107.1724 4 -4.3932 -92.0344 4 -30.6208
5 24 -58 12 -60.456 -58 4 -60.456 -44.3932 4 -67.1724 -70.6208 4 -52.0344
5 24 -70.6208 24 -52.0344 -70.6208 4 -52.0344 -69.384 12 -52.8597 -77.4943 4 -46
5 24 -92.0344 24 -30.6208 -92.0344 4 -30.6208 -100.456 4 -18 -86 4 -37.4943
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2024-11-16 11:03:59
Missing surfaces in the triangular corner.
Added missing quads and inlined subpart
Rotated subpart to match parent. Added cond lines on the curved inside.
2024-11-20 20:04:48
should be rotated again to be correct (now its upside down)
Flipped subpart s02 as suggested. Corrected some BFC errors (may be more). Corrected height of triangular box inside surfaces (recent addition).
Finished rotating s01 and parent part. Added inside cond lines to s01.
Finished rotating s01 and parent part. Added inside cond lines to s01.
Corrected BFC of two quads on inside of the small corner box.
Minor update needed for 52025.
Header Edits
description:
~Duplo Wall 4 x 6 x 6 Curved Turret - Castle (Half of Bottom)
to
~Duplo Wall 4 x 6 x 6 Curved Turret - Castle - Half of Bottom
Changed parenthesis to dash in description
2025-08-15 09:23:16
Header Edits
description:
~Duplo Wall 4 x 6 x 6 Curved Turret - Castle - Half of Bottom
to
~Duplo Building Wall 4 x 6 x 6 Curved Turret - Castle - Half of Bottom
2025-08-15 09:29:43
* Missing edges:
2 24 -21.5 23 -73.737934 -18.5 23 -74.334193
2 24 -21.5 23 -73.737934 -21.5 4 -73.737934
2 24 -18.5 4 -74.334193 -18.5 23 -74.334193
2 24 -113.737934 23 18.5 -114.334193 23 21.5
2 24 -114.334193 23 21.5 -114.334193 4 21.5
2 24 -113.737934 23 18.5 -113.737934 4 18.5
*
2 24 -21.5 23 -73.737934 -18.5 23 -74.334193
2 24 -21.5 23 -73.737934 -21.5 4 -73.737934
2 24 -18.5 4 -74.334193 -18.5 23 -74.334193
2 24 -113.737934 23 18.5 -114.334193 23 21.5
2 24 -114.334193 23 21.5 -114.334193 4 21.5
2 24 -113.737934 23 18.5 -113.737934 4 18.5
*
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
