File Detail parts/s/6511s01.dat

Unofficial File parts/s/6511s01.dat

File Header:

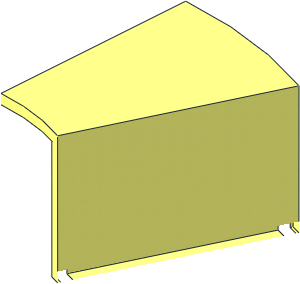

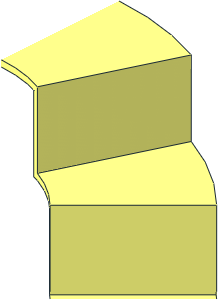

0 ~Duplo Stairs with Drawer Slots - Step
0 Name: s\6511s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // first step
1 16 0 0 0 0 0 80 0 1 0 80 0 0 48\1-16ring1.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 80 0 4 0 80 0 0 48\1-24cylo.dat
1 16 0 4 0 0 0 80 0 -1 0 80 0 0 48\1-24ring1.dat
1 16 0 0 0 0 0 160 0 4 0 160 0 0 48\1-24cylo.dat
4 16 30.615 48 73.912 61.229 48 147.823 61.232 0 147.824 30.616 0 73.912
4 16 57.434 4 149.112 57.434 52 149.112 26.818 52 75.199 26.818 4 75.199
4 16 61.229 52 147.823 30.615 52 73.912 26.818 52 75.199 57.434 52 149.112
4 16 26.818 4 75.199 20.704 4 77.272 41.408 4 154.544 57.434 4 149.112
2 24 30.616 0 73.912 61.232 0 147.824
2 24 61.229 48 147.823 30.615 48 73.912
2 24 57.434 4 149.112 26.818 4 75.199
2 24 57.434 52 149.112 26.818 52 75.199

0 // second step
4 16 113.136 48 113.136 97.399 48 126.927 48.699 48 63.464 56.568 48 56.568
4 16 97.399 48 126.927 79.998 48 138.558 39.999 48 69.279 48.699 48 63.464
4 16 79.998 48 138.558 61.229 48 147.823 30.615 48 73.912 39.999 48 69.279
4 16 56.568 48 56.568 56.568 96 56.568 113.136 96 113.136 113.136 48 113.136
4 16 97.399 52 126.927 48.699 52 63.464 39.999 52 69.279 79.998 52 138.558
4 16 79.998 52 138.558 39.999 52 69.279 30.615 52 73.912 61.229 52 147.823
4 16 97.399 52 126.927 110.121 52 115.778 53.553 52 59.21 48.699 52 63.464
4 16 53.553 52 59.21 110.121 52 115.778 110.121 100 115.778 53.553 100 59.21
4 16 53.553 100 59.21 110.121 100 115.778 113.136 100 113.136 56.568 100 56.568
2 24 56.568 48 56.568 113.136 48 113.136
2 24 110.121 52 115.778 53.553 52 59.21
2 24 53.553 100 59.21 110.121 100 115.778

0 // inside segments 3 to 6
4 16 48.699 52 63.464 48.699 48 63.464 39.999 48 69.279 39.999 52 69.279
4 16 39.999 52 69.279 39.999 48 69.279 30.615 48 73.912 30.615 52 73.912
4 16 20.704 0 77.272 20.704 4 77.272 26.818 4 75.199 30.616 0 73.912
4 16 30.615 48 73.912 30.616 0 73.912 26.818 4 75.199 26.818 52 75.199
3 16 30.615 48 73.912 26.818 52 75.199 30.615 52 73.912
4 16 48.699 48 63.464 48.699 52 63.464 53.553 52 59.21 56.568 48 56.568
4 16 56.568 96 56.568 56.568 48 56.568 53.553 52 59.21 53.553 100 59.21
3 16 56.568 100 56.568 56.568 96 56.568 53.553 100 59.21
2 24 39.999 48 69.279 30.615 48 73.912
2 24 56.568 48 56.568 48.699 48 63.464
2 24 48.699 48 63.464 39.999 48 69.279
2 24 48.699 52 63.464 39.999 52 69.279
2 24 39.999 52 69.279 30.615 52 73.912
2 24 53.553 52 59.21 53.553 100 59.21
2 24 26.818 4 75.199 26.818 52 75.199
2 24 48.699 52 63.464 53.553 52 59.21
2 24 20.704 0 77.272 30.616 0 73.912
2 24 30.616 0 73.912 30.615 48 73.912
2 24 30.615 52 73.912 26.818 52 75.199
2 24 26.818 4 75.199 20.704 4 77.272
2 24 56.568 48 56.568 56.568 96 56.568
2 24 53.553 100 59.21 56.568 100 56.568
5 24 20.704 4 77.272 20.704 0 77.272 10.44 0 79.312 26.818 4 75.199
5 24 30.615 52 73.912 30.615 48 73.912 26.818 52 75.199 39.999 52 69.279
5 24 48.699 52 63.464 48.699 48 63.464 39.999 48 69.279 53.553 52 59.21
5 24 39.999 48 69.279 39.999 52 69.279 48.699 52 63.464 30.615 48 73.912

0 // outside segments 3 to 6
4 16 79.998 48 138.558 97.399 48 126.927 97.399 52 126.927 79.998 52 138.558
4 16 61.229 48 147.823 79.998 48 138.558 79.998 52 138.558 61.229 52 147.823
3 16 113.136 96 113.136 113.136 100 113.136 110.121 100 115.778
4 16 113.136 96 113.136 110.121 100 115.778 110.121 52 115.778 113.136 48 113.136
4 16 113.136 48 113.136 110.121 52 115.778 97.399 52 126.927 97.399 48 126.927
3 16 61.229 48 147.823 61.229 52 147.823 57.434 52 149.112
4 16 61.229 48 147.823 57.434 52 149.112 57.434 4 149.112 61.232 0 147.824
4 16 61.232 0 147.824 57.434 4 149.112 41.408 4 154.544 41.408 0 154.544
2 24 113.136 48 113.136 97.399 48 126.927
2 24 97.399 48 126.927 79.998 48 138.558
2 24 79.998 48 138.558 61.229 48 147.823
2 24 97.399 52 126.927 79.998 52 138.558
2 24 79.998 52 138.558 61.229 52 147.823
2 24 110.121 100 115.778 110.121 52 115.778
2 24 57.434 52 149.112 57.434 4 149.112
2 24 97.399 52 126.927 110.121 52 115.778
2 24 61.229 52 147.823 57.434 52 149.112
2 24 61.232 0 147.824 61.229 48 147.823
2 24 113.136 48 113.136 113.136 96 113.136
2 24 110.121 100 115.778 113.136 100 113.136
2 24 57.434 4 149.112 41.408 4 154.544
2 24 61.232 0 147.824 41.408 0 154.544
5 24 41.408 4 154.544 41.408 0 154.544 20.88 0 158.624 57.434 4 149.112
5 24 61.229 48 147.823 61.229 52 147.823 79.998 48 138.558 57.434 52 149.112
5 24 97.399 48 126.927 97.399 52 126.927 113.136 48 113.136 79.998 52 138.558
5 24 79.998 48 138.558 79.998 52 138.558 61.229 52 147.823 97.399 48 126.927

Status:

Awaiting Admin Review (CCN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder
Has uncertified subfiles

p/48/1-16ring1.dat (Awaiting Admin Review)

Current Votes:

User	Vote
Holly-Wood	Certify
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2024-11-23 23:51:17

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:50:19

Header Edits

description:
~Duplo Stairs with Drawer Slots (Step)
to
~Duplo Stairs with Drawer Slots - Step

Comment:
Changed parenthesis to dash in description

Willy Tschager [Holly-Wood]

made the following comment.

2025-09-02 08:54:52

* I do not think that a combination of 48er and simple quads is a good idea:

4 16 0 0 80 0 4 80 10.44 4 79.312 10.44 0 79.312
4 16 10.44 0 79.312 10.44 4 79.312 20.704 4 77.272 20.704 0 77.272
4 16 20.704 0 77.272 20.704 4 77.272 26.8282 4 75.196 30.6147 0 73.9104

Did you try a 48er cylinder on this, risking a T-junk at the corner?

* All your 48\1-24edge.dat open gaps in LDView with prim substitution on. I guess you used them as guide during design, which is a very good move, but I would keep them in the final design.

Willy Tschager [Holly-Wood]

made the following comment.

2025-09-02 09:03:29

* Overlap:

2 27 61.2293 0 147.8207 61.232 0 147.824

Peter Blomberg [WUIt]

posted a vote of Hold.

2025-09-03 15:15:35

overlap detected

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-09-05 10:08:11

Removed overlap.

Willy Tschager [Holly-Wood]

made the following comment.

2025-09-06 10:38:58

* There is still a rounding issue:

2 11 30.6147 0 73.9104 30.616 0 73.912
2 11 61.232 0 147.824 61.2293 0 147.8207

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-09-07 05:50:04

Fixed three rounding issues

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-09-21 10:38:41

Many microgaps fixed, Edger now satified.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-09-22 11:06:44

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-09-22 15:04:25
