Unofficial File parts/s/561s02.dat
File Header:

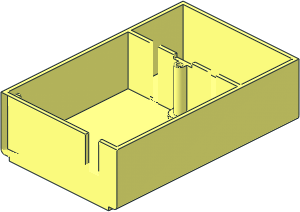

0 ~Electric 4.5V Battery Box 7 x 11 x 3 Type 1 Base Common
0 Name: s\561s02.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-05 [Blechtaler] subfiled the contact gap
Show contents
0 // Bottom
1 16 0 64 0 60 0 0 0 -4 0 0 0 110 box4o4a.dat
0 BFC INVERTNEXT
1 16 0 64 0 56 0 0 0 -4 0 0 0 106 box4.dat
4 16 60 64 110 56 64 106 -56 64 106 -60 64 110
4 16 -60 64 -110 -56 64 -106 56 64 -106 60 64 -110
4 16 60 64 -110 56 64 -106 56 64 106 60 64 110
4 16 -60 64 110 -56 64 106 -56 64 -106 -60 64 -110
1 16 0 60 36 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 54 36 6 0 0 0 6 0 0 0 6 4-4cylo.dat
1 16 0 54 36 3 0 0 0 -1 0 0 0 3 4-4ring1.dat
4 16 -10 60 -100 -10 60 -80 10 60 -80 10 60 -100
3 16 -56 60 -106 -30 60 -100 -10 60 -100
4 16 -56 60 -106 -10 60 -100 10 60 -100 56 60 -106
3 16 56 60 -106 10 60 -100 30 60 -100
4 16 30 60 -100 30 60 -80 56 60 106 56 60 -106
4 16 30 60 -80 10 60 -80 6 60 30 56 60 106
3 16 6 60 30 6 60 36 56 60 106
3 16 56 60 106 6 60 36 6 60 42
4 16 6 60 42 0 60 42 -56 60 106 56 60 106
3 16 -56 60 106 0 60 42 -6 60 42
4 16 -30 60 -80 -6 60 30 0 60 30 -10 60 -80
4 16 0 60 30 6 60 30 10 60 -80 -10 60 -80
4 16 -30 60 -80 -30 60 -100 -56 60 -106 -56 60 106
4 16 -6 60 36 -6 60 30 -30 60 -80 -56 60 106
3 16 -6 60 42 -6 60 36 -56 60 106
1 16 40 60 0 0 0 1 0 -1 0 1 0 0 stug4-1x10.dat
1 16 20 60 10 0 0 1 0 -1 0 1 0 0 stug4-1x9.dat
1 16 0 60 -90 0 0 1 0 -1 0 1 0 0 stud4.dat
1 16 0 60 -20 0 0 1 0 -1 0 1 0 0 stug4-1x4.dat
1 16 0 60 80 0 0 1 0 -1 0 1 0 0 stug4-1x2.dat
1 16 -20 60 10 0 0 1 0 -1 0 1 0 0 stug4-1x9.dat
1 16 -40 60 0 0 0 1 0 -1 0 1 0 0 stug4-1x10.dat
1 16 0 60 -90 1 0 0 0 1 0 0 0 1 s\561s03.dat
1 16 20 60 -98 0 0 1.5 0 1 0 1.5 0 0 boxjcyl4.dat
1 16 20 60 -102 0 0 1.5 0 1 0 4 0 0 box3u5p.dat
1 16 20 60 -82 0 0 1.5 0 1 0 -1.5 0 0 boxjcyl4.dat
1 16 20 60 -80 0 0 1.5 0 1 0 2 0 0 box3u8p.dat
1 16 20 60 -78 0 0 1.5 0 1 0 1.5 0 0 boxjcyl4.dat
1 16 -20 60 -98 0 0 1.5 0 1 0 1.5 0 0 boxjcyl4.dat
1 16 -20 60 -102 0 0 1.5 0 1 0 4 0 0 box3u5p.dat
1 16 -20 60 -82 0 0 1.5 0 1 0 -1.5 0 0 boxjcyl4.dat
1 16 -20 60 -80 0 0 1.5 0 1 0 2 0 0 box3u8p.dat
1 16 -20 60 -78 0 0 1.5 0 1 0 1.5 0 0 boxjcyl4.dat
0 // Sides
1 16 63 60 0 0 0 -3 0 -1 0 110 0 0 rect3.dat
1 16 -63 60 0 0 0 3 0 -1 0 110 0 0 rect3.dat
1 16 66 56 110 0 0 4 4 0 0 0 -220 0 1-4cylo.dat
1 16 66 56 110 0 0 4 4 0 0 0 -1 0 1-4chrd.dat
1 16 66 56 -110 0 0 4 4 0 0 0 1 0 1-4chrd.dat
1 16 -66 56 -110 0 0 -4 4 0 0 0 220 0 1-4cylo.dat
1 16 -66 56 110 0 0 -4 4 0 0 0 -1 0 1-4chrd.dat
1 16 -66 56 -110 0 0 -4 4 0 0 0 1 0 1-4chrd.dat
1 16 70 28 0 0 -1 0 0 0 -28 110 0 0 rect3.dat
1 16 -70 28 0 0 1 0 0 0 -28 110 0 0 rect3.dat
1 16 0 28 110 0 0 70 -28 0 0 0 -1 0 rect1.dat
3 16 70 56 110 66 60 110 60 60 110
4 16 70 56 110 60 60 110 -60 60 110 -70 56 110
3 16 -70 56 110 -60 60 110 -66 60 110
0 // Top
4 16 -66 0 -106 -70 0 -110 32 0 -110 32 0 -106
4 16 -66 0 -106 -66 0 39.5 -70 0 110 -70 0 -110
3 16 -66 0 39.5 -66 0 43.5 -70 0 110
3 16 -70 0 110 -66 0 43.5 -66 0 106
4 16 -70 0 110 -66 0 106 66 0 106 70 0 110
3 16 70 0 110 66 0 106 66 0 43.5
3 16 66 0 43.5 66 0 39.5 70 0 110
4 16 70 0 110 66 0 39.5 66 0 -106 70 0 -110
4 16 48 0 -106 48 0 -110 70 0 -110 66 0 -106
2 24 -70 0 -110 32 0 -110
2 24 32 0 -106 -66 0 -106
2 24 70 0 -110 48 0 -110
2 24 48 0 -106 66 0 -106
0 // Cutout
1 16 48 15 -108 0 1 0 0 0 -15 -2 0 0 rect3.dat
1 16 32 15 -108 0 -1 0 0 0 -15 2 0 0 rect3.dat
0 // Inside
1 16 66 28 -33.25 0 1 0 28 0 0 0 0 72.75 rect3.dat
1 16 -66 28 -33.25 0 -1 0 28 0 0 0 0 72.75 rect3.dat
1 16 0 28 -106 66 0 0 0 0 28 0 1 0 recte3.dat
1 16 64 56 -89 0 0 -2 0 -36 0 -1 0 0 box4-1.dat
1 16 64 56 -95 0 0 -2 0 -50 0 -1 0 0 box4-1.dat
1 16 -64 56 -95 0 0 2 0 -50 0 1 0 0 box4-1.dat
1 16 -64 56 -89 0 0 2 0 -36 0 1 0 0 box4-1.dat
0 BFC INVERTNEXT
1 16 0 28 43.5 0 0 66 28 0 0 0 62.5 0 box3u2p.dat
4 16 32 0 -106 32 30 -106 -66 56 -106 -66 0 -106
3 16 -66 56 -106 32 30 -106 32 38 -106
4 16 -66 56 -106 32 38 -106 40 38 -106 66 56 -106
3 16 66 56 -106 40 38 -106 48 38 -106
3 16 66 56 -106 48 38 -106 48 30 -106
4 16 48 0 -106 66 0 -106 66 56 -106 48 30 -106
0 // Divider
1 16 53 56 41.5 13 0 0 0 -56 0 0 0 2 box3u8p.dat
1 16 -53 56 41.5 13 0 0 0 -56 0 0 0 2 box3u8p.dat
1 16 20.5 2 41.5 0 0 -9.5 0 -2 0 2 0 0 box2-7.dat
1 16 -20.5 2 41.5 0 0 9.5 0 -2 0 2 0 0 box2-7.dat
1 16 0 56 36 10 0 0 0 1 0 0 0 -10 2-4ndis.dat
1 16 0 52 36 10 0 0 0 4 0 0 0 -10 2-4cylo.dat
1 16 0 52 36 5 0 0 0 1 0 0 0 -5 2-4ring1.dat
1 16 10 54 37.75 0 -1 0 2 0 0 0 0 1.75 rect2a.dat
1 16 7.5 52 37.75 2.5 0 0 0 1 0 0 0 1.75 rect2a.dat
1 16 -10 54 37.75 0 1 0 2 0 0 0 0 1.75 rect2a.dat
1 16 -7.5 52 37.75 -2.5 0 0 0 1 0 0 0 1.75 rect2a.dat
1 16 0 56 36 0 0 10 0 1 0 10 0 0 1-8tndis.dat
1 16 0 52 36 0 0 10 0 4 0 10 0 0 1-8cylo.dat
1 16 0 52 36 0 0 10 0 1 0 10 0 0 1-8chrd.dat
1 16 0 56 36 0 0 -10 0 1 0 10 0 0 1-8tndis.dat
1 16 0 52 36 0 0 -10 0 4 0 10 0 0 1-8cylo.dat
1 16 0 52 36 0 0 -10 0 1 0 10 0 0 1-8chrd.dat
3 16 7.071 52 43.071 0 52 46 -7.071 52 43.071
0 BFC INVERTNEXT
1 16 0 4 36 3 0 0 0 50 0 0 0 3 4-4cylo.dat
1 16 0 4 36 5 0 0 0 48 0 0 0 -5 2-4cylo.dat
1 16 -5 28 37.75 0 1 0 24 0 0 0 0 1.75 rect3.dat
1 16 5 28 37.75 0 -1 0 24 0 0 0 0 1.75 rect3.dat
1 16 0 4 36 3 0 0 0 1 0 0 0 3 4-4ndis.dat
1 16 0 4 36 5 0 0 0 1 0 0 0 -5 1-8chrd.dat
1 16 0 4 36 -5 0 0 0 1 0 0 0 -5 1-8chrd.dat
1 16 0 4 36 0 0 -5 0 1 0 -5 0 0 1-8chrd.dat
1 16 0 4 36 0 0 5 0 1 0 -5 0 0 1-8chrd.dat
1 16 0 4 41.5 11 0 0 0 1 0 0 0 2 recte3.dat
1 16 0 54 43.5 6.4291 0 0 0 0 -2 0 1 0 recte3.dat
4 16 -11 0 39.5 -30 0 39.5 -30 56 39.5 -11 4 39.5
4 16 30 0 39.5 11 0 39.5 11 4 39.5 30 56 39.5
4 16 11 4 43.5 11 0 43.5 30 0 43.5 30 56 43.5
4 16 -30 0 43.5 -11 0 43.5 -11 4 43.5 -30 56 43.5
2 24 -10 56 39.5 -10 52 39.5
2 24 -5 4 39.5 -11 4 39.5
2 24 -5 52 39.5 -10 52 39.5
2 24 -10 56 39.5 -30 56 39.5
2 24 11 4 39.5 5 4 39.5
2 24 10 56 39.5 30 56 39.5
4 16 -30 56 39.5 -10 56 39.5 -10 52 39.5 -11 4 39.5
4 16 -11 4 39.5 -10 52 39.5 -5 52 39.5 -5 4 39.5
4 16 11 4 39.5 5 4 39.5 5 52 39.5 10 52 39.5
4 16 30 56 39.5 11 4 39.5 10 52 39.5 10 56 39.5
4 16 -6.4291 52 43.5 -6.4291 56 43.5 -30 56 43.5 -11 4 43.5
4 16 -6.4291 52 43.5 -11 4 43.5 11 4 43.5 6.4291 52 43.5
4 16 6.4291 52 43.5 11 4 43.5 30 56 43.5 6.4291 56 43.5
2 24 -6.4291 56 43.5 -30 56 43.5
2 24 30 56 43.5 6.4291 56 43.5
4 16 5 4 39.5 -5 4 39.5 -3 4 39 0 4 39
3 16 0 4 39 3 4 39 5 4 39.5
4 16 5 4 36 5 4 39.5 3 4 39 3 4 36
4 16 3.5355 4 32.4645 5 4 36 3 4 36 3 4 33
4 16 0 4 31 3.5355 4 32.4645 3 4 33 0 4 33
4 16 -3.5355 4 32.4645 0 4 31 0 4 33 -3 4 33
4 16 -5 4 36 -3.5355 4 32.4645 -3 4 33 -3 4 36
4 16 -5 4 36 -3 4 36 -3 4 39 -5 4 39.5
3 16 -11 4 43.5 -11 4 39.5 -5 4 39.5
4 16 -11 4 43.5 -5 4 39.5 5 4 39.5 11 4 43.5
3 16 11 4 43.5 5 4 39.5 11 4 39.5
3 16 7.071 56 43.071 30 56 43.5 7.071 56 46
3 16 10 56 39.5 10 56 36 30 56 39.5
3 16 -30 56 39.5 -10 56 36 -10 56 39.5
3 16 -7.071 56 46 -30 56 43.5 -7.071 56 43.071
3 16 66 56 43.5 66 56 106 40 56 43.5
4 16 40 56 43.5 66 56 106 7.071 56 46 30 56 43.5
4 16 66 56 106 -66 56 106 0 56 46 7.071 56 46
3 16 -7.071 56 46 0 56 46 -66 56 106
4 16 -7.071 56 46 -66 56 106 -40 56 43.5 -30 56 43.5
3 16 -40 56 43.5 -66 56 106 -66 56 43.5
4 16 -66 56 -106 -30 56 -100 -30 56 -80 -66 56 39.5
4 16 -40 56 39.5 -66 56 39.5 -30 56 -80 -10 56 -80
4 16 -30 56 39.5 -40 56 39.5 -10 56 -80 -10 56 26
4 16 0 56 26 -10 56 26 -10 56 -80 10 56 -80
4 16 10 56 -100 10 56 -80 -10 56 -80 -10 56 -100
3 16 -30 56 -100 -66 56 -106 -10 56 -100
3 16 30 56 -100 10 56 -100 66 56 -106
3 16 0 56 26 10 56 -80 10 56 26
3 16 -10 56 36 -30 56 39.5 -10 56 26
4 16 10 56 -100 -10 56 -100 -66 56 -106 66 56 -106
4 16 30 56 -80 30 56 -100 66 56 -106 66 56 39.5
4 16 30 56 -80 66 56 39.5 40 56 39.5 10 56 -80
4 16 10 56 -80 40 56 39.5 30 56 39.5 10 56 26
3 16 10 56 36 10 56 26 30 56 39.5
0 // Front without patternable Area
4 16 70 0 -110 48 0 -110 48 30 -110 70 56 -110
4 16 66 60 -110 70 56 -110 48 30 -110 48 38 -110
4 16 60 60 -110 66 60 -110 48 38 -110 40 38 -110
4 16 -60 60 -110 60 60 -110 40 38 -110 32 38 -110
4 16 -66 60 -110 -60 60 -110 32 38 -110 -70 56 -110
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
subfiled for pattern
realized that i had to remove the round end at the cutout
Edge lines at the metal studs are reversed. The cyljoiner is wrong.
flipped cyljoiners
I missed this, duplicated surfaces:
3 16 -11 4 43.5 -3.5592 4 39.5 11 4 43.5
3 16 11 4 43.5 -3.5592 4 39.5 3.5592 4 39.5
4 16 -11 4 43.5 -3.5592 4 39.5 3.5592 4 39.5 11 4 43.5
3 16 -11 4 43.5 -3.5592 4 39.5 11 4 43.5
3 16 11 4 43.5 -3.5592 4 39.5 3.5592 4 39.5
4 16 -11 4 43.5 -3.5592 4 39.5 3.5592 4 39.5 11 4 43.5
fixed overlap
2024-12-08 12:47:39
subfiled the contact cutout
(only the newer boxes have it)
(only the newer boxes have it)
made the screwhole better (less internal faces)
