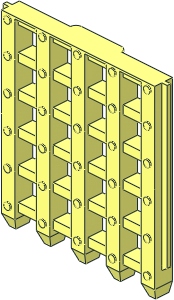

0 Duplo Portcullis 1 x 7 x 6
0 Name: 51702.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Castle, Gate, Sliding Grille
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51702s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51702s01.dat
0 // shared
4 16 -120 0 -14 120 0 -14 120 0 -2.8 -120 0 -2.8
4 16 -120 0 2.8 -120 0 -2.8 120 0 -2.8 120 0 2.8
4 16 -120 0 2.8 120 0 2.8 40 0 14 -40 0 14
4 16 31.2 3 22.8 -31.2 3 22.8 -31.2 0 22.8 31.2 0 22.8
2 24 31.2 3 22.8 -31.2 3 22.8
2 24 31.2 0 22.8 -31.2 0 22.8
4 16 2.3235 274 -3 -2.3235 274 -3 -7.5 258 -10 7.5 258 -10
2 24 -2.3235 274 14 2.3235 274 14
2 24 -2.3235 274 -3 2.3235 274 -3
2 24 -5 277 -7 5 277 -7
2 24 -5 277 14 5 277 14
4 16 -10.5 260 -14 -5 277 -7 5 277 -7 10.5 260 -14
4 16 -5 277 14 5 277 14 5 277 -7 -5 277 -7
4 16 5 277 14 -5 277 14 -2.3235 274 14 2.3235 274 14
1 16 0 8 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
1 16 0 54.3 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
1 16 0 102.3 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
1 16 0 150.3 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
1 16 0 198.3 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
1 16 0 246.3 -16 5 0 0 0 0 5 0 2 0 4-4cylc.dat
4 16 -7.5 3 -10 -7.5 3 14 7.5 3 14 7.5 3 -10
4 16 -10.5 3 -14 10.5 3 -14 120 0 -14 -120 0 -14
4 16 -2.3235 274 -3 2.3235 274 -3 2.3235 274 14 -2.3235 274 14
1 16 0 232 -10 7.5 0 0 0 0 1.5 0 22 0 box3u2p.dat
1 16 0 165 -10 7.5 0 0 0 0 1.5 0 22 0 box3u2p.dat
2 24 -120 0 -14 120 0 -14
4 16 40 0 14 31.2 0 22.8 -31.2 0 22.8 -40 0 14
4 16 -31.2 3 22.8 31.2 3 22.8 40 3 14 -40 3 14
1 16 0 28.65 -14 -10.5 0 0 0 0 25.65 0 1 0 rect1.dat
2 24 10.5 54.3 -14 10.5 3 -14
4 16 10.5 102.3 -14 10.5 54.3 -14 -10.5 54.3 -14 -10.5 102.3 -14
4 16 10.5 102.3 -14 -10.5 102.3 -14 -10.5 150.3 -14 10.5 150.3 -14
4 16 10.5 198.3 -14 10.5 150.3 -14 -10.5 150.3 -14 -10.5 198.3 -14
4 16 10.5 198.3 -14 -10.5 198.3 -14 -10.5 246.3 -14 10.5 246.3 -14
1 16 0 253.15 -14 -10.5 0 0 0 0 6.85 0 1 0 rect3.dat
1 16 0 252.15 -10 -7.5 0 0 0 0 5.85 0 -1 0 rect3.dat
4 16 7.5 198.3 -10 7.5 246.3 -10 -7.5 246.3 -10 -7.5 198.3 -10
4 16 7.5 198.3 -10 -7.5 198.3 -10 -7.5 150.3 -10 7.5 150.3 -10
4 16 7.5 102.3 -10 7.5 150.3 -10 -7.5 150.3 -10 -7.5 102.3 -10
4 16 7.5 102.3 -10 -7.5 102.3 -10 -7.5 54.3 -10 7.5 54.3 -10
1 16 0 28.65 -10 7.5 0 0 0 0 -25.65 0 -1 0 rect3.dat
Status:
Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
The part is slightly wider than 6x6 due to the sliding fins, so the effective size is 1x7x6 instead of 1x6x7 as listed on Bricklink. Compare e.g. the oversized 1x3x2 triangle 42025. The last number is always the height.
* Should be closed by a chrd in the sub:
2 20 40 0 14 31.2 0 22.8
2 20 40 0 14 31.2 0 22.8
Corrected rect as suggested. Added chrds to subfile.
Split front rects to reduce length of triangles as suggested.
Decided against creating a single-use subfile, which are typically inlined to reduce the number of files to be reviewed, because the part is not symmetric in the y-direction, thus drastically reducing the number of lines in the subfile.
Split front rects to reduce length of triangles as suggested.
Decided against creating a single-use subfile, which are typically inlined to reduce the number of files to be reviewed, because the part is not symmetric in the y-direction, thus drastically reducing the number of lines in the subfile.
2025-04-16 13:12:39
Split long quads both outside and inside as suggested. Subfiled part of them as suggested earlier by Rene. Unfortunately, this means updating also the main part and the subsubfile.
* I don't have issues with T-junk on hard edges, but long stretched triangles
2025-04-21 12:07:10
What is a 'hard edge'?
2025-04-21 12:33:48
An edge with a type 2 line.
