File Detail parts/s/51706s01.dat

Official File parts/s/51706s01.dat

File Header:

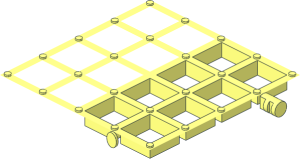

0 ~Duplo Trap Door Grate 4 x 4 (Half)
0 Name: s\51706s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Subpart UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04

Show contents

0 // rotation axle
1 16 78 0 0 1 0 0 0 1 0 0 0 1 s\51706s02.dat
1 16 78 0 0 1 0 0 0 1 0 0 0 -1 s\51706s02.dat
1 16 78 0 0 1 0 0 0 -1 0 0 0 1 s\51706s02.dat
1 16 78 0 0 1 0 0 0 -1 0 0 0 -1 s\51706s02.dat

0 // holes
0 BFC INVERTNEXT
1 16 18.65 -6.3 -21.35 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 55.95 -6.3 -21.35 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 18.65 -6.3 15.95 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 55.95 -6.3 15.95 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 18.65 -6.3 -58.65 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 55.95 -6.3 -58.65 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 18.65 -6.3 -95.95 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat
0 BFC INVERTNEXT
1 16 55.95 -6.3 -95.95 15.25 0 0 0 12.6 0 0 0 15.25 box4.dat

0 // bolts
1 16 37.3 -7.7 -40 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 74 -7.7 -40 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 0 -7.7 -2.7 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 37.3 -7.7 -2.7 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 74 -7.7 -2.7 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 0 -7.7 34 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 37.3 -7.7 34 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 74 -7.7 34 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 0 -7.7 -77.3 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 37.3 -7.7 -77.3 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 74 -7.7 -77.3 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 0 -7.7 -114 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 37.3 -7.7 -114 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 74 -7.7 -114 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -37.3 -7.7 -40 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -74 -7.7 -40 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -37.3 -7.7 -2.7 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -74 -7.7 -2.7 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -37.3 -7.7 34 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -74 -7.7 34 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -37.3 -7.7 -77.3 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -74 -7.7 -77.3 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -37.3 -7.7 -114 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat
1 16 -74 -7.7 -114 2.7 0 0 0 1.4 0 0 0 2.7 4-4cylc.dat

0 // bolts on side
1 16 40 0 -120 5 0 0 0 0 6.3 0 2 0 4-4cylc.dat

0 // front
3 16 78 -6.3 38 71.2 -6.3 31.2 71.2 -6.3 .7
3 16 78 -6.3 38 71.2 -6.3 .7 71.2 -6.3 -6.1
3 16 78 -6.3 38 71.2 -6.3 -6.1 71.2 -6.3 -36.6
4 16 78 -6.3 38 71.2 -6.3 -36.6 71.2 -6.3 -43.4 78 -6.3 -118
3 16 71.2 -6.3 -111.2 78 -6.3 -118 71.2 -6.3 -80.7
3 16 71.2 -6.3 -80.7 78 -6.3 -118 71.2 -6.3 -73.9
3 16 71.2 -6.3 -73.9 78 -6.3 -118 71.2 -6.3 -43.4
3 16 -78 -6.3 -118 -71.2 -6.3 -111.2 -71.2 -6.3 -80.7
3 16 -78 -6.3 -118 -71.2 -6.3 -80.7 -71.2 -6.3 -73.9
3 16 -78 -6.3 -118 -71.2 -6.3 -73.9 -71.2 -6.3 -43.4
4 16 -78 -6.3 -118 -71.2 -6.3 -43.4 -71.2 -6.3 -36.6 -78 -6.3 38
3 16 -71.2 -6.3 31.2 -78 -6.3 38 -71.2 -6.3 .7
3 16 -71.2 -6.3 .7 -78 -6.3 38 -71.2 -6.3 -6.1
3 16 -71.2 -6.3 -6.1 -78 -6.3 38 -71.2 -6.3 -36.6
3 16 71.2 -6.3 31.2 78 -6.3 38 40.7 -6.3 31.2
3 16 40.7 -6.3 31.2 78 -6.3 38 33.9 -6.3 31.2
3 16 33.9 -6.3 31.2 78 -6.3 38 3.4 -6.3 31.2
4 16 -3.4 -6.3 31.2 3.4 -6.3 31.2 78 -6.3 38 -78 -6.3 38
3 16 -78 -6.3 38 -71.2 -6.3 31.2 -40.7 -6.3 31.2
3 16 -78 -6.3 38 -40.7 -6.3 31.2 -33.9 -6.3 31.2
3 16 -78 -6.3 38 -33.9 -6.3 31.2 -3.4 -6.3 31.2
3 16 -71.2 -6.3 -111.2 -78 -6.3 -118 -40.7 -6.3 -111.2
3 16 -40.7 -6.3 -111.2 -78 -6.3 -118 -33.9 -6.3 -111.2
3 16 -33.9 -6.3 -111.2 -78 -6.3 -118 -3.4 -6.3 -111.2
4 16 3.4 -6.3 -111.2 -3.4 -6.3 -111.2 -78 -6.3 -118 78 -6.3 -118
3 16 78 -6.3 -118 71.2 -6.3 -111.2 40.7 -6.3 -111.2
3 16 78 -6.3 -118 40.7 -6.3 -111.2 33.9 -6.3 -111.2
3 16 78 -6.3 -118 33.9 -6.3 -111.2 3.4 -6.3 -111.2

4 16 71.2 -6.3 .7 40.7 -6.3 .7 40.7 -6.3 -6.1 71.2 -6.3 -6.1
4 16 71.2 -6.3 -36.6 40.7 -6.3 -36.6 40.7 -6.3 -43.4 71.2 -6.3 -43.4
4 16 71.2 -6.3 -73.9 40.7 -6.3 -73.9 40.7 -6.3 -80.7 71.2 -6.3 -80.7
4 16 33.9 -6.3 -80.7 33.9 -6.3 -111.2 40.7 -6.3 -111.2 40.7 -6.3 -80.7
4 16 3.4 -6.3 -73.9 3.4 -6.3 -80.7 33.9 -6.3 -80.7 33.9 -6.3 -73.9
4 16 33.9 -6.3 -73.9 33.9 -6.3 -80.7 40.7 -6.3 -80.7 40.7 -6.3 -73.9
4 16 33.9 -6.3 -73.9 40.7 -6.3 -73.9 40.7 -6.3 -43.4 33.9 -6.3 -43.4
4 16 33.9 -6.3 -43.4 40.7 -6.3 -43.4 40.7 -6.3 -36.6 33.9 -6.3 -36.6
4 16 33.9 -6.3 -43.4 33.9 -6.3 -36.6 3.4 -6.3 -36.6 3.4 -6.3 -43.4
4 16 33.9 -6.3 -36.6 40.7 -6.3 -36.6 40.7 -6.3 -6.1 33.9 -6.3 -6.1
4 16 33.9 -6.3 .7 33.9 -6.3 -6.1 40.7 -6.3 -6.1 40.7 -6.3 .7
4 16 33.9 -6.3 31.2 33.9 -6.3 .7 40.7 -6.3 .7 40.7 -6.3 31.2
4 16 33.9 -6.3 -6.1 33.9 -6.3 .7 3.4 -6.3 .7 3.4 -6.3 -6.1

4 16 -3.4 -6.3 -80.7 -3.4 -6.3 -111.2 3.4 -6.3 -111.2 3.4 -6.3 -80.7
4 16 -3.4 -6.3 -73.9 -3.4 -6.3 -80.7 3.4 -6.3 -80.7 3.4 -6.3 -73.9
4 16 -3.4 -6.3 -73.9 3.4 -6.3 -73.9 3.4 -6.3 -43.4 -3.4 -6.3 -43.4
4 16 -3.4 -6.3 -43.4 3.4 -6.3 -43.4 3.4 -6.3 -36.6 -3.4 -6.3 -36.6
4 16 -3.4 -6.3 -36.6 3.4 -6.3 -36.6 3.4 -6.3 -6.1 -3.4 -6.3 -6.1
4 16 -3.4 -6.3 .7 -3.4 -6.3 -6.1 3.4 -6.3 -6.1 3.4 -6.3 .7
4 16 -3.4 -6.3 31.2 -3.4 -6.3 .7 3.4 -6.3 .7 3.4 -6.3 31.2

4 16 -40.7 -6.3 -6.1 -40.7 -6.3 .7 -71.2 -6.3 .7 -71.2 -6.3 -6.1
4 16 -40.7 -6.3 -43.4 -40.7 -6.3 -36.6 -71.2 -6.3 -36.6 -71.2 -6.3 -43.4
4 16 -40.7 -6.3 -80.7 -40.7 -6.3 -73.9 -71.2 -6.3 -73.9 -71.2 -6.3 -80.7
4 16 -40.7 -6.3 -111.2 -33.9 -6.3 -111.2 -33.9 -6.3 -80.7 -40.7 -6.3 -80.7
4 16 -33.9 -6.3 -80.7 -3.4 -6.3 -80.7 -3.4 -6.3 -73.9 -33.9 -6.3 -73.9
4 16 -40.7 -6.3 -80.7 -33.9 -6.3 -80.7 -33.9 -6.3 -73.9 -40.7 -6.3 -73.9
4 16 -40.7 -6.3 -43.4 -40.7 -6.3 -73.9 -33.9 -6.3 -73.9 -33.9 -6.3 -43.4
4 16 -40.7 -6.3 -36.6 -40.7 -6.3 -43.4 -33.9 -6.3 -43.4 -33.9 -6.3 -36.6
4 16 -3.4 -6.3 -36.6 -33.9 -6.3 -36.6 -33.9 -6.3 -43.4 -3.4 -6.3 -43.4
4 16 -40.7 -6.3 -6.1 -40.7 -6.3 -36.6 -33.9 -6.3 -36.6 -33.9 -6.3 -6.1
4 16 -40.7 -6.3 -6.1 -33.9 -6.3 -6.1 -33.9 -6.3 .7 -40.7 -6.3 .7
4 16 -40.7 -6.3 .7 -33.9 -6.3 .7 -33.9 -6.3 31.2 -40.7 -6.3 31.2
4 16 -3.4 -6.3 .7 -33.9 -6.3 .7 -33.9 -6.3 -6.1 -3.4 -6.3 -6.1

Status:

Official

This part has the following warnings

Number in description may need a leading space
