Official File parts/25548.dat
Part Attributes:
File Header:

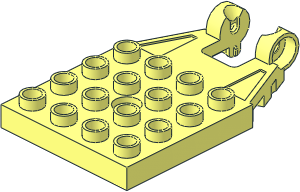

0 Duplo Plate 4 x 4 with Hinge Extended on Side
0 Name: 25548.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Secondary hinge position at 0 -5 160
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-4x4.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\25548s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\25548s01.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\13355s01.dat
0 // understud with snap ring
1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stud8a.dat
1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4edge.dat
1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4ndis.dat
1 16 0 0 0 14 0 0 0 -1 0 0 0 14 4-4edge.dat
1 16 0 0 0 14 0 0 0 1 0 0 0 14 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 0 14 0 0 0 4 0 0 0 14 4-4cyli.dat
1 16 0 24 0 1 0 0 0 1 0 0 0 1 dsnapridge.dat
0 // reinforcements
1 16 0 4 -46 0 0 -1.5 0 4 0 30 0 0 box3u5p.dat
1 16 0 4 -16 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat
1 16 0 4 40 0 0 1.5 0 4 0 -24 0 0 box3u8p.dat
1 16 0 4 16 0 0 1.5 0 4 0 -1.5 0 0 boxjcyl4.dat
1 16 0 4 64 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat
0 // inner box
0 BFC INVERTNEXT
1 16 0 14 76 0 0 76 10 0 0 0 -152 0 box3u4a.dat
3 16 -76 4 -76 -16 4 -16 0 4 -16
4 16 0 4 -16 16 4 -16 76 4 -76 -76 4 -76
3 16 0 4 16 -16 4 16 -36 4 76
4 16 36 4 76 16 4 16 0 4 16 -36 4 76
4 16 -18.5 4 111 18.5 4 111 36 4 76 -36 4 76
0 // outer box
1 16 0 12 80 0 0 80 12 0 0 0 -160 0 box3u2p.dat
3 16 0 0 -14 -14 0 -14 -80 0 -80
4 16 80 0 -80 14 0 -14 0 0 -14 -80 0 -80
3 16 0 0 14 14 0 14 40 0 80
4 16 -40 0 80 -14 0 14 0 0 14 40 0 80
4 16 -40 0 80 40 0 80 16.5 0 114 -16.5 0 114
0 // bottom helm
4 16 76 24 -76 80 24 -80 -80 24 -80 -76 24 -76
3 16 40 24 147.5 36 24 120 36 24 156.7287
3 16 40 24 147.5 36 24 156.7287 40 24 160
3 16 -36 24 120 -40 24 147.5 -36 24 156.7287
3 16 -36 24 156.7287 -40 24 147.5 -40 24 160
0 // fittings
2 24 42.6177 9.0433 154.183 40 10.2 160
2 24 40 10.2 160 40 14 160
3 16 48.3065 24 141.5412 40 24 160 40 14 160
4 16 42.6177 9.0433 154.183 44.8366 5.7479 149.2521 48.3065 12 141.5412 48.3065 24 141.5412
3 16 48.3065 12 141.5412 44.8366 5.7479 149.2521 46.3195 .817 145.9567
4 16 42.6177 9.0433 154.183 48.3065 24 141.5412 40 14 160 40 10.2 160
5 24 26.5 -5 144.8 40 -5 144.8 26.5 .817 145.9567 40 -10.817 145.9567
0 BFC INVERTNEXT
1 16 40 -5 160 0 6.84 0 0 0 15.2 15.2 0 0 1-8cyls2.dat
2 24 -40 10.2 160 -42.6177 9.0433 154.183
2 24 -40 14 160 -40 10.2 160
3 16 -40 24 160 -48.3065 24 141.5412 -40 14 160
4 16 -48.3065 12 141.5412 -44.8366 5.7479 149.2521 -42.6177 9.0433 154.183 -48.3065 24 141.5412
3 16 -44.8366 5.7479 149.2521 -48.3065 12 141.5412 -46.3195 .817 145.9567
4 16 -40 14 160 -48.3065 24 141.5412 -42.6177 9.0433 154.183 -40 10.2 160
5 24 -40 -5 144.8 -26.5 -5 144.8 -26.5 .817 145.9567 -40 -10.817 145.9567
0 BFC INVERTNEXT
1 16 -40 -5 160 0 -6.84 0 0 0 15.2 15.2 0 0 1-8cyls2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-12-07 01:24:51
Remove overlap and T-junctions as suggested.
2025-05-24 06:22:18
* My bad. The origin has to be at the center of the hinge.
2025-05-27 06:05:23
Adapted earlier subfiles for 13355 and 25548 to also fit 65084 and 65085. Small adjustments required to all subparts to prevent overlap. Please consider 13355, 65084, 25548, and 65085 for any modifications. The red gaskets are in 65084s03 with the color of rubber red.
Added help lines for secondary hinge position. Kept origin as concluded in forum thread https://forums.ldraw.org/thread-28836.html
Added help lines for secondary hinge position. Kept origin as concluded in forum thread https://forums.ldraw.org/thread-28836.html
2025-07-21 20:33:20
2025-07-22 13:17:54
2025-07-23 09:59:33
* Shares subable geometry with 65085
If I follow the discussion in the thread correctly, it was agreed that the origin should be the hinge or the pin hole. Currently it is neither.
2025-07-24 06:32:29
IMHO, the origin is correct, in the centre of the 4x4 plate, in the rotationpoint.
Hmm. My computer showed something different last night but looks good now.
2025-07-27 01:51:11
