Unofficial File parts/13355.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

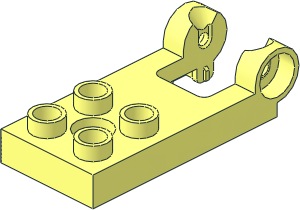

Duplo Plate 2 x 2 with Hinge Extended on Side
File Header:
0 Duplo Plate 2 x 2 with Hinge Extended on Side 0 Name: 13355.dat 0 Author: Peter Blomberg [WUIt] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Secondary hinge position at 0 -5 120 0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\65084s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\65084s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\13355s01.dat 0 // bottom reinforcements 1 16 0 4 -26 0 0 -1.5 0 4 0 10 0 0 box3u5p.dat 1 16 0 4 -16 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat 1 16 0 4 20 0 0 1.5 0 4 0 -4 0 0 box3u8p.dat 1 16 0 4 16 0 0 1.5 0 4 0 -1.5 0 0 boxjcyl4.dat 1 16 0 4 24 0 0 1.5 0 4 0 1.5 0 0 boxjcyl4.dat 0 // bottom helm 4 16 -40 24 -40 -36 24 -36 36 24 -36 40 24 -40 0 // large box inner surface 0 BFC INVERTNEXT 1 16 0 14 76 0 0 36 10 0 0 0 -112 0 box3u2p.dat 3 16 36 4 -36 -36 4 -36 0 4 -16 3 16 0 4 16 -18.5 4 71 18.5 4 71 0 // outer surfaces 1 16 0 12 -40 0 0 -40 -12 0 0 0 1 0 rect.dat 3 16 -16.5 0 74 0 0 14 16.5 0 74 3 16 -40 0 -40 40 0 -40 0 0 -14 0 // understud with snap ring 1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stud8a.dat 1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4edge.dat 1 16 0 4 0 16 0 0 0 -1 0 0 0 16 4-4ndis.dat 1 16 0 0 0 14 0 0 0 -1 0 0 0 14 4-4edge.dat 1 16 0 0 0 14 0 0 0 1 0 0 0 14 4-4ndis.dat 0 BFC INVERTNEXT 1 16 0 0 0 14 0 0 0 4 0 0 0 14 4-4cyli.dat 1 16 0 24 0 1 0 0 0 1 0 0 0 1 dsnapridge.dat 0 // fittings 2 24 40 24 80 40 24 120 4 16 40 24 80 36 24 80 36 24 116.7287 40 24 120 1 16 40 -5 120 0 -1 0 15.2 0 0 0 0 -15.2 1-8tndis.dat 1 16 40 -5 120 0 1 0 15.2 0 0 0 0 -15.2 1-8edge.dat 3 16 40 5.7479 109.2521 40 24 80 40 10.2 109.2521 4 16 40 24 80 40 24 120 40 14 120 40 10.2 109.2521 3 16 40 10.2 109.2521 40 14 120 40 10.2 120 2 24 -40 24 120 -40 24 80 4 16 -36 24 116.7287 -36 24 80 -40 24 80 -40 24 120 1 16 -40 -5 120 0 1 0 15.2 0 0 0 0 -15.2 1-8tndis.dat 1 16 -40 -5 120 0 -1 0 15.2 0 0 0 0 -15.2 1-8edge.dat 3 16 -40 24 80 -40 5.7479 109.2521 -40 10.2 109.2521 4 16 -40 14 120 -40 24 120 -40 24 80 -40 10.2 109.2521 3 16 -40 14 120 -40 10.2 109.2521 -40 10.2 120
Status:
Not releaseable Needs 1 More Vote (CN) Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
RainbowDolphin Certify
Official parents and subparts
Part Events:
Peter Blomberg [WUIt]
Part Header Editor
initially submitted the part.
2024-12-07 01:24:51
Peter Blomberg [WUIt]
Part Header Editor
submitted a new version of the part (all votes reset).
2024-12-07 22:07:47
Corrected contact angle between cylinder and top surface.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2025-05-20 16:49:45
* T-junk:

2 20 14 0 -14 14 0 14
2 20 14 0 14 -14 0 14
2 20 -14 0 14 -14 0 -14
2 20 14 0 -14 -14 0 -14
2 20 16 4 -16 16 4 16
2 20 16 4 16 -16 4 16
2 20 -16 4 16 -16 4 -16
2 20 -16 4 -16 16 4 -16
Peter Blomberg [WUIt]
Part Header Editor
submitted a new version of the part (all votes reset).
2025-05-24 00:34:32
Remove T-junctions as suggested.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify
2025-05-24 06:20:12
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold
2025-05-24 14:04:52
* My bad. The origin has to be at the center of the hinge.
Peter Blomberg [WUIt]
Part Header Editor
made the following comment.
2025-05-24 14:24:28
What about the arguments for 13358 where the origin is above the snapping hole?
I'd argue that the snapping hole is the primary hinge/rotation point and that the hinge on the side is secondary. The snapping hole is also assembled earlier than the side hinge in all instructions I know of.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2025-05-24 14:50:31
* I'd say to use these as template:

https://library.ldraw.org/parts/5427
https://library.ldraw.org/parts/5970
https://library.ldraw.org/parts/5434

or ask at the forums for a second opinion.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
cancelled their vote.
2025-05-27 06:05:32
Peter Blomberg [WUIt]
Part Header Editor
submitted a new version of the part (all votes reset).
2025-07-18 15:59:57
Added help about secondary hinge position. Removed overlap due to new subfile.
Peter Blomberg [WUIt]
Part Header Editor
submitted a new version of the part (all votes reset).
2025-07-18 22:30:41
Adapted earlier subfiles for 13355 and 25548 to also fit 65084 and 65085. Small adjustments required to all subparts to prevent overlap. Please consider 13355, 65084, 25548, and 65085 for any modifications. The red gaskets are in 65084s03 with the color of rubber red.
Added help lines for secondary hinge position. Kept origin as concluded in forum thread https://forums.ldraw.org/thread-28836.html
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify
2025-07-21 20:25:34
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify
2025-07-22 13:19:43
Willy Tschager [Holly-Wood]
Senior Part Reviewer
cancelled their vote.
2025-07-23 09:56:09
* Apparently 13355 and 65084 share geometry in common:

1 25 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
4 25 -40 24 -40 -36 24 -36 36 24 -36 40 24 -40
3 25 36 4 -36 -36 4 -36 0 4 -16
3 25 0 4 16 -18.5 4 71 18.5 4 71
4 25 -40 24 -40 40 24 -40 40 0 -40 -40 0 -40
3 25 -16.5 0 74 0 0 14 16.5 0 74
3 25 -40 0 -40 40 0 -40 0 0 -14
1 25 0 4 0 1 0 0 0 -4 0 0 0 1 stud8a.dat
1 25 0 0 0 14 0 0 0 1 0 0 0 14 4-4ndis.dat

Question is why you didn't sub it as well?
Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Hold
2025-07-24 08:01:25
Holding this part pending resolution of discussion on sister part 65084.
Peter Blomberg [WUIt]
Part Header Editor
cancelled their vote.
2025-07-24 14:02:08
Resolved. No changes needed here.
