Download Download zip file
Official File parts/16686.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

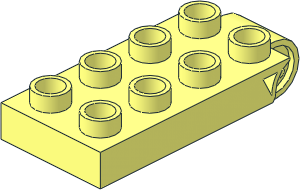

Duplo Plate 2 x 4 with Hinge
File Header:
0 Duplo Plate 2 x 4 with Hinge 0 Name: 16686.dat 0 Author: Peter Blomberg [WUIt] 0 !LDRAW_ORG Part UPDATE 2025-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 -19 -120 -1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat 1 16 0 -19 -40 -1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\16686s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\16686s02.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\16686s02.dat 0 // top 4 16 -21 -19 -3.978 -21 -19 -7.2713 21 -19 -7.2713 21 -19 -3.978 4 16 21 -19 -3.978 21 -19 0 -21 -19 0 -21 -19 -3.978 4 16 -40 -19 -160 40 -19 -160 21 -19 -7.2713 -21 -19 -7.2713 0 // front 1 16 0 -7 -160 40 0 0 0 0 12 0 1 0 rect.dat 0 // inner box 1 16 0 -5 -156 36 0 0 0 0 10 0 -1 0 rect.dat 4 16 -19 -15 -19 19 -15 -19 19 -15 -26.5 -19 -15 -26.5 4 16 -19 -15 -26.5 19 -15 -26.5 19 -15 -32.5 -19 -15 -32.5 4 16 19 -15 -32.5 36 -15 -156 -36 -15 -156 -19 -15 -32.5 1 16 0 -5 -19 19 0 0 0 0 10 0 1 0 rect.dat 0 // bottom helm 4 16 -40 5 -160 -36 5 -156 36 5 -156 40 5 -160 4 16 19 5 -19 -19 5 -19 -21 5 -18.0057 21 5 -18.0057 0 // bottom 2 24 -21 5 -18.0057 21 5 -18.0057 4 16 -21 7.2713 -17.5541 21 7.2713 -17.5541 21 5 -18.0057 -21 5 -18.0057
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Peter Blomberg [WUIt]
Part Header Editor
initially submitted the part.
2024-12-07 21:47:59
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2025-05-24 14:00:57
* Origin at the center of the hinge

* Should use:

1 16 21 20 80 0 -1 0 -20 0 0 0 0 -20 1-16tndis.dat
1 16 40 19 80 0 1 0 0 0 -19 -19 0 0 3-16tang.dat

* Should be cut in half and subbed

* T-junk

2 14 23 5.6064 62.5452 23 5.6064 50.9507
Peter Blomberg [WUIt]
Part Header Editor
submitted a new version of the part.
2025-05-25 08:24:14
Remove T-junction, moved origin to hinge, used tang as suggested. Subparted half as suggested.
The suggested tndis could not be used because it was too large and would have cut the top surface. Used tang instead.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2025-05-25 14:44:12
* Overlap. Use this instead:

3 273 21 -19 -3.978 21 -19 -7.2713 21 -17.478 -7.654

* Should be split:

2 24 21 -19 0 21 -19 -7.2713
2 24 23 -13.3936 -17.4548 23 -13.3936 -29.0493

2 24 21 -19 0 21 -19 -7.2713
2 24 23 -13.3936 -17.4548 23 -13.3936 -29.0493
2 24 23 -13.3936 -22 23 -13.3936 -29.0493
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2025-05-25 14:44:39
Wrong file
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-05-26 18:51:10
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2025-05-28 02:45:14
Orion Pobursky [OrionP]
Part Library Admin
2025-05-28 03:31:37
Release 2025-05
