Unofficial File parts/61930.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

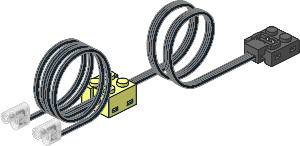

0 Electric Power Functions Light Unit with Black Coiled Cable
0 Name: 61930.dat
0 Author: Trevor Sandy [bootknuckle]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !KEYWORDS Bricklink 61930c01, Peeron x1917cx1
0 !HISTORY 2024-12-09 [bootknuckle] adapted from shortcut 22168.datShow file code:
0 // Middle Box
1 16 0 0 0 1 0 0 0 1 0 0 0 1 62501c01.dat
0 // Main Cable and Plug
1 256 0 12 16.4 1 0 0 0 1 0 0 0 1 u9190c01.dat
0 // Twin Cable
1 256 3 12 -12 1 0 0 0 1 0 0 0 1 s\61930s01.dat
0 // LED Light
1 47 23 -2.8 -115.5 1 0 0 0 1 0 0 0 1 62498c02.dat
0 // Twin Cable
1 256 -3 12 -12 -1 0 0 0 1 0 0 0 1 s\61930s01.dat
0 // LED Light
1 47 -23 -2.8 -115.5 1 0 0 0 1 0 0 0 1 62498c02.datStatus
Errors Found (HN)
Current Votes:
Magnus Forsberg [MagFors]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Trevor Sandy [bootknuckle]
initially submitted the part.
2024-12-13 11:40:54
Initial submit
Trevor Sandy [bootknuckle]
submitted a new version of the part (all votes reset).
2024-12-13 12:03:13
Correct middle box and plug color
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-13 12:14:04
you could use u9190c01.dat (no need to make an own cable...)
or maybe use u9190.dat (same cable segment, but open)
and watch out for the subpart links, you use both / and \ (both work, but / causes errors)
or maybe use u9190.dat (same cable segment, but open)
and watch out for the subpart links, you use both / and \ (both work, but / causes errors)
Trevor Sandy [bootknuckle]
submitted a new version of the part (all votes reset).
2024-12-13 14:03:06
Convert all occurrences of s/ to s\
Trevor Sandy [bootknuckle]
made the following comment.
2024-12-13 14:04:08
| watch out for the subpart links, you use both / and \ (both work, but / causes errors)
Understood. I've corrected all occurrences of / to \.
| you could use u9190c01.dat (no need to make an own cable...)
The u9190 segment is incompatible with Light Middle Box 62501c01.
Light Middle Box 62501c01 uses the u9028 segment, I could not find one that uses u9190 - do you know if one exists ?
Similarly, I could not find a Light with Cable Horizontal using the u9190 segment, 62498c02 uses u9028.
Using s\58124s03 maintains the pattern used by the other Electric Power Functions 58...parts.
Cheers,
Understood. I've corrected all occurrences of / to \.
| you could use u9190c01.dat (no need to make an own cable...)
The u9190 segment is incompatible with Light Middle Box 62501c01.
Light Middle Box 62501c01 uses the u9028 segment, I could not find one that uses u9190 - do you know if one exists ?
Similarly, I could not find a Light with Cable Horizontal using the u9190 segment, 62498c02 uses u9028.
Using s\58124s03 maintains the pattern used by the other Electric Power Functions 58...parts.
Cheers,
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2024-12-13 15:29:43
u9190.dat (https://library.ldraw.org/parts/15838) is the same as the s\58124s03.dat (https://library.ldraw.org/parts/19523) without the closed end.
u9190.dat is used in u9190c01.dat (https://library.ldraw.org/parts/15839), which itself is used for the other PF shortcuts (motors and extension).
this saves some code by not needing to model the full coil in every part.
and the middle box is black again now... (should be color 16)
u9190.dat is used in u9190c01.dat (https://library.ldraw.org/parts/15839), which itself is used for the other PF shortcuts (motors and extension).
this saves some code by not needing to model the full coil in every part.
and the middle box is black again now... (should be color 16)
Trevor Sandy [bootknuckle]
submitted a new version of the part (all votes reset).
2024-12-13 17:00:05
Replace s\58124s03 Main Cable segments with u9190c01 Main Cable and Plug and set Middle Box color to 16
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-13 17:05:48
much better, but the origin is off (the center brick should be at 0 0 0)
Trevor Sandy [bootknuckle]
made the following comment.
2024-12-13 17:07:14
| ...u9190.dat is used in u9190c01.dat
Indeed. On my initial attempt to use u9190c01, it seemed like the individual main cable disc diameter was smaller than those fitted to the middle box. On taking a second look, this was not the case.
Cheers,
Indeed. On my initial attempt to use u9190c01, it seemed like the individual main cable disc diameter was smaller than those fitted to the middle box. On taking a second look, this was not the case.
Cheers,
Trevor Sandy [bootknuckle]
submitted a new version of the part (all votes reset).
2024-12-13 17:38:18
Set Middle Box origin to 0 0 0
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-13 17:42:51
see, now all coordinates are nice even values and symmetric...
Trevor Sandy [bootknuckle]
made the following comment.
2024-12-13 17:46:38
Yep - I used LeoCAD so I didn't have the support of a true authoring package. Many thanks for your review.
Cheers,
Cheers,
Rene Rechthaler [Blechtaler]
posted a vote of Certify
2024-12-13 18:00:19
for parts, LDPE (LDrawPartsEditor) is better...
maybe do the other not-yet-cabled PF shortcuts next?
@admin: maybe add the Keywords: peeron x1917cx1, Bricklink 61930c01, Rebrickable 61930, Brickowl ID 344712-38 (also has 16516 as Lego ID)
maybe do the other not-yet-cabled PF shortcuts next?
@admin: maybe add the Keywords: peeron x1917cx1, Bricklink 61930c01, Rebrickable 61930, Brickowl ID 344712-38 (also has 16516 as Lego ID)
Gerald Lasser [GeraldLasser]
edited the part header.
2024-12-13 21:35:31
Header Edits
keywords:
to
Peeron x1917cx1, Bricklink 61930c01, Rebrickable 61930, Brickowl 344712-38
Trevor Sandy [bootknuckle]
submitted a new version of the part (all votes reset).
2024-12-14 10:07:47
Correct gap between light and cable
Trevor Sandy [bootknuckle]
made the following comment.
2024-12-14 14:12:53
| maybe do the other not-yet-cabled PF shortcuts next ?
These parts appear to not have cabled shortcuts. Is this list exhaustive ?
- 87577 Electric, Motor 9V Power Functions with Gear Reduction Ratio 9.5 : 1
- 87574 Power Functions Train Motor
- 63523 Electric Sensor, Motion - WeDo Robotics
- 63521 Electric Hub, USB - WeDo Robotics
Cheers,
These parts appear to not have cabled shortcuts. Is this list exhaustive ?
- 87577 Electric, Motor 9V Power Functions with Gear Reduction Ratio 9.5 : 1
- 87574 Power Functions Train Motor
- 63523 Electric Sensor, Motion - WeDo Robotics
- 63521 Electric Hub, USB - WeDo Robotics
Cheers,
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-14 14:38:42
watch out: the WeDo sensord have a shorter cable and the flat connector...
the IR receivers also seem to miss the cabled versions.
the IR receivers also seem to miss the cabled versions.
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-14 14:44:26
hm, scrap the "shorter cable" comment... (guess you can still edit the cable shortcut for the sensors, just swap the plug)
the pole reverser also misses the cabled shortcut.
the pole reverser also misses the cabled shortcut.
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-14 14:56:19
the IR Receivers and the pole reversers have two variants each...
Magnus Forsberg [MagFors]
posted a vote of Hold
2024-12-15 15:07:51
A shortcut can only be made from other parts. This file is using a subfile twice. The only exeption to this is part 22168.
The other shortcuts including a cable are all XXXXXc01. This one, and 22168, isn't.
Why?
The other shortcuts including a cable are all XXXXXc01. This one, and 22168, isn't.
Why?
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-15 15:14:36
because this subpart is only used here...
all other cabled shortcuts are part shortcut+cable shortcut.
this one has the thin coil which is used only in this shortcut, so its a part-shortcut-subfile...
all other cabled shortcuts are part shortcut+cable shortcut.
this one has the thin coil which is used only in this shortcut, so its a part-shortcut-subfile...
Trevor Sandy [bootknuckle]
made the following comment.
2024-12-15 15:37:43
So what must be done to unblock the error ? Should subfile s\61930s01 be renamed to a u... part ?
Cheers,
Cheers,
