File Detail parts/6228775o.dat

Download Download zip file View sticker sheet parts

Official File parts/6228775o.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

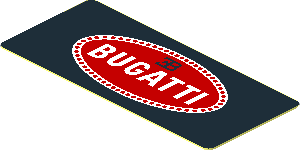

0 Sticker  0.8 x  1.8 with Red Logo Bugatti Pattern
0 Name: 6228775o.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 42083stk01, Brickowl 885585, Bugatti Chiron, Lego Technic
0 !KEYWORDS Rebrickable 38973, set 42083

0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04

Show contents

0 // Sticker-Bottom
1 16 17.0 0 -7.0 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 17.0 0 7.0 1 0 0 0 -1 0 0 0 1 1-4chrd.dat
1 16 -17.0 0 -7.0 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 -17.0 0 7.0 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat
4 16 18.0 0 7.0 18.0 0 -7.0 17.0 0 -8.0 17.0 0 8.0
4 16 -18.0 0 7.0 -17.0 0 8.0 -17.0 0 -8.0 -18.0 0 -7.0
4 16 17.0 0 8.0 17.0 0 -8.0 -17.0 0 -8.0 -17.0 0 8.0

0 // Sticker-Side
1 16 17.0 -0.25 -7.0 1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
1 16 17.0 -0.25 7.0 1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
1 16 -17.0 -0.25 -7.0 -1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
1 16 -17.0 -0.25 7.0 -1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
4 16 18.0 0 7.0 18.0 -0.25 7.0 18.0 -0.25 -7.0 18.0 0 -7.0
4 16 -18.0 0 7.0 -18.0 0 -7.0 -18.0 -0.25 -7.0 -18.0 -0.25 7.0
4 16 -17.0 0 8.0 -17.0 -0.25 8.0 17.0 -0.25 8.0 17.0 0 8.0
4 16 -17.0 0 -8.0 17.0 0 -8.0 17.0 -0.25 -8.0 -17.0 -0.25 -8.0

0 // Sticker-Front
1 16 0 -0.25 0 1.55 0 0 0 1 0 0 0 1.55 logo-bugatti-with-dots.dat
1 0 0 -0.25 0 1.55 0 0 0 1 0 0 0 1.55 logo-bugatti-box.dat
1 0 17 -0.25 7 1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 0 17 -0.25 -7 1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 0 -17 -0.25 -7 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 0 -17 -0.25 7 -1 0 0 0 1 0 0 0 1 1-4chrd.dat
4 0 -18 -0.25 7 -18 -0.25 -7 -17 -0.25 -8 -17 -0.25 8
4 0 18 -0.25 -7 18 -0.25 7 17 -0.25 8 17 -0.25 -8
4 0 -17 -.25 8 -11.8575 -.25 6.00625 11.8575 -.25 6.00625 17 -.25 8
4 0 17 -.25 -8 17 -.25 8 11.8575 -.25 6.00625 11.8575 -.25 -6.00625
4 0 17 -.25 -8 11.8575 -.25 -6.00625 -11.8575 -.25 -6.00625 -17 -.25 -8
4 0 -11.8575 -.25 6.00625 -17 -.25 8 -17 -.25 -8 -11.8575 -.25 -6.00625

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gabriel Läufer [Dr.Bricktacular]

initially submitted the part.

2024-12-13 21:38:47

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-12-14 06:31:21

Wrongly refer. The logo should be inlined and modified.

Gabriel Läufer [Dr.Bricktacular]

submitted a new version of the part.

2024-12-15 17:32:53

Corretced wrong subfiles reference and removed double 1-4chrd.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-12-15 22:01:40

The fallback pattern is incorrect. EB logo has the wrong colour, and the white border is missing.
The backside can't be inside the texmap code.

Gabriel Läufer [Dr.Bricktacular]

submitted a new version of the part.

2024-12-23 17:12:17

Logo „EB“ on Sticker 6228775o is black. Don't know which white border is missing here. Confusion with sticker sheet for set 75787 (Bugatti Chiron Speed Champions)? Removed sticker backside from TEXMAP section.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-12-23 17:55:01

As I said, the fallback pattern is not correct
EB logo has the wrong colour, and the white border is missing.

Gabriel Läufer [Dr.Bricktacular]

submitted a new version of the part.

2024-12-23 21:37:03

Takeshi Takahashi [RainbowDolphin]

posted a vote of Hold.

2024-12-26 10:01:35

As the logo has clear edges, it should be vectorized and not made by TEXMAP.

Jens Brühl [jb70]
