Unofficial File parts/s/stickerback030x068a.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

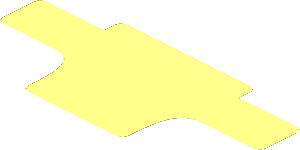

0 ~Sticker Back 3.0 x 6.8 for Technic Panel Smooth 7 x 2 x 3
0 Name: s\stickerback030x068a.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP To be used with panel 24119
0 BFC CERTIFY CCW
Show file code:
0 // Back Faces
1 16 23 0 -36.5 3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 65 0 -7.5 3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 65 0 8.5 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 32 0 17.5 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 36 0 12.5 -1 0 0 0 -1 0 0 0 -1 1-4ndis.dat
4 16 38.1 0 -10.5 23 0 -7.5 68 0 -7.5 65 0 -10.5
3 16 35.333 0 -10.878 23 0 -7.5 38.1 0 -10.5
3 16 32.67 0 -11.9 23 0 -7.5 35.333 0 -10.878
3 16 30.544 0 -13.485 23 0 -7.5 32.67 0 -11.9
3 16 28.925 0 -15.604 23 0 -7.5 30.544 0 -13.485
3 16 27.9 0 -17.9 23 0 -7.5 28.925 0 -15.604
3 16 27.066 0 -20.748 23 0 -7.5 27.9 0 -17.9
3 16 26.586 0 -23.653 23 0 -7.5 27.066 0 -20.748
3 16 26.279 0 -26.598 23 0 -7.5 26.586 0 -23.653
4 16 26.089 0 -29.547 23 0 -39.5 23 0 -7.5 26.279 0 -26.598
3 16 23 0 -39.5 26.089 0 -29.547 26 0 -32.5
3 16 23 0 -39.5 26 0 -32.5 26 0 -36.5
1 16 -23 0 -36.5 -3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 -65 0 -7.5 -3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 -65 0 8.5 -3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 -32 0 17.5 -3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 -36 0 12.5 1 0 0 0 -1 0 0 0 -1 1-4ndis.dat
3 16 -23 0 -7.5 -35.333 0 -10.878 -38.1 0 -10.5
3 16 -23 0 -7.5 -32.67 0 -11.9 -35.333 0 -10.878
3 16 -23 0 -7.5 -30.544 0 -13.485 -32.67 0 -11.9
3 16 -23 0 -7.5 -28.925 0 -15.604 -30.544 0 -13.485
3 16 -23 0 -7.5 -27.9 0 -17.9 -28.925 0 -15.604
3 16 -23 0 -7.5 -27.066 0 -20.748 -27.9 0 -17.9
3 16 -23 0 -7.5 -26.586 0 -23.653 -27.066 0 -20.748
3 16 -23 0 -7.5 -26.279 0 -26.598 -26.586 0 -23.653
4 16 -23 0 -7.5 -23 0 -39.5 -26.089 0 -29.547 -26.279 0 -26.598
3 16 -26.089 0 -29.547 -23 0 -39.5 -26 0 -32.5
4 16 -23 0 -7.5 -35 0 11.5 35 0 11.5 23 0 -7.5
4 16 -23 0 -7.5 23 0 -7.5 23 0 -39.5 -23 0 -39.5
3 16 -26 0 -36.5 -26 0 -32.5 -23 0 -39.5
4 16 36 0 11.5 68 0 -7.5 23 0 -7.5 35 0 11.5
4 16 36 0 11.5 65 0 11.5 68 0 8.5 68 0 -7.5
4 16 -65 0 -10.5 -68 0 -7.5 -23 0 -7.5 -38.1 0 -10.5
4 16 -68 0 -7.5 -36 0 11.5 -35 0 11.5 -23 0 -7.5
4 16 -68 0 8.5 -65 0 11.5 -36 0 11.5 -68 0 -7.5
4 16 -35 0 12.5 35 0 12.5 35 0 11.5 -35 0 11.5
4 16 -35 0 12.5 -35 0 17.5 35 0 17.5 35 0 12.5
4 16 -32 0 20.5 32 0 20.5 35 0 17.5 -35 0 17.5
0 // Side Faces
1 16 23 0 -36.5 3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 65 0 -7.5 3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 65 0 8.5 3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
1 16 32 0 17.5 3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 36 0 12.5 -1 0 0 0 -.25 0 0 0 -1 1-4cyli.dat
4 16 26 -.25 -32.5 26 -.25 -36.5 26 0 -36.5 26 0 -32.5
4 16 26.089 -.25 -29.547 26 -.25 -32.5 26 0 -32.5 26.089 0 -29.547
4 16 26.279 -.25 -26.598 26.089 -.25 -29.547 26.089 0 -29.547 26.279 0 -26.598
4 16 26.586 -.25 -23.653 26.279 -.25 -26.598 26.279 0 -26.598 26.586 0 -23.653
4 16 27.066 -.25 -20.748 26.586 -.25 -23.653 26.586 0 -23.653 27.066 0 -20.748
4 16 27.9 -.25 -17.9 27.066 -.25 -20.748 27.066 0 -20.748 27.9 0 -17.9
4 16 28.925 -.25 -15.604 27.9 -.25 -17.9 27.9 0 -17.9 28.925 0 -15.604
4 16 30.544 -.25 -13.485 28.925 -.25 -15.604 28.925 0 -15.604 30.544 0 -13.485
4 16 32.67 -.25 -11.9 30.544 -.25 -13.485 30.544 0 -13.485 32.67 0 -11.9
4 16 35.333 -.25 -10.878 32.67 -.25 -11.9 32.67 0 -11.9 35.333 0 -10.878
4 16 38.1 -.25 -10.5 35.333 -.25 -10.878 35.333 0 -10.878 38.1 0 -10.5
4 16 65 -.25 -10.5 38.1 -.25 -10.5 38.1 0 -10.5 65 0 -10.5
4 16 68 -.25 8.5 68 -.25 -7.5 68 0 -7.5 68 0 8.5
4 16 36 -.25 11.5 65 -.25 11.5 65 0 11.5 36 0 11.5
4 16 35 -.25 17.5 35 -.25 12.5 35 0 12.5 35 0 17.5
1 16 -23 0 -36.5 -3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 -65 0 -7.5 -3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 -65 0 8.5 -3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
1 16 -32 0 17.5 -3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -36 0 12.5 1 0 0 0 -.25 0 0 0 -1 1-4cyli.dat
4 16 -26 0 -36.5 -26 -.25 -36.5 -26 -.25 -32.5 -26 0 -32.5
4 16 -26 0 -32.5 -26 -.25 -32.5 -26.089 -.25 -29.547 -26.089 0 -29.547
4 16 -26.089 0 -29.547 -26.089 -.25 -29.547 -26.279 -.25 -26.598 -26.279 0 -26.598
4 16 -26.279 0 -26.598 -26.279 -.25 -26.598 -26.586 -.25 -23.653 -26.586 0 -23.653
4 16 -26.586 0 -23.653 -26.586 -.25 -23.653 -27.066 -.25 -20.748 -27.066 0 -20.748
4 16 -27.066 0 -20.748 -27.066 -.25 -20.748 -27.9 -.25 -17.9 -27.9 0 -17.9
4 16 -27.9 0 -17.9 -27.9 -.25 -17.9 -28.925 -.25 -15.604 -28.925 0 -15.604
4 16 -28.925 0 -15.604 -28.925 -.25 -15.604 -30.544 -.25 -13.485 -30.544 0 -13.485
4 16 -30.544 0 -13.485 -30.544 -.25 -13.485 -32.67 -.25 -11.9 -32.67 0 -11.9
4 16 -32.67 0 -11.9 -32.67 -.25 -11.9 -35.333 -.25 -10.878 -35.333 0 -10.878
4 16 -35.333 0 -10.878 -35.333 -.25 -10.878 -38.1 -.25 -10.5 -38.1 0 -10.5
4 16 -38.1 0 -10.5 -38.1 -.25 -10.5 -65 -.25 -10.5 -65 0 -10.5
4 16 -68 0 -7.5 -68 -.25 -7.5 -68 -.25 8.5 -68 0 8.5
4 16 -65 0 11.5 -65 -.25 11.5 -36 -.25 11.5 -36 0 11.5
4 16 -35 0 12.5 -35 -.25 12.5 -35 -.25 17.5 -35 0 17.5
4 16 -32 -.25 20.5 32 -.25 20.5 32 0 20.5 -32 0 20.5
4 16 23 -.25 -39.5 -23 -.25 -39.5 -23 0 -39.5 23 0 -39.5
5 24 26.089 -.25 -29.547 26.089 0 -29.547 26 -.25 -32.5 26.279 0 -26.598
5 24 -27.066 0 -20.748 -27.066 -.25 -20.748 -26.586 0 -23.653 -27.9 -.25 -17.9
5 24 30.544 0 -13.485 30.544 -.25 -13.485 32.67 0 -11.9 28.925 -.25 -15.604
5 24 27.9 0 -17.9 27.9 -.25 -17.9 27.066 -.25 -20.748 28.925 0 -15.604
5 24 -26 0 -32.5 -26 -.25 -32.5 -26.089 -.25 -29.547 -26 0 -36.5
5 24 -28.925 0 -15.604 -28.925 -.25 -15.604 -27.9 0 -17.9 -30.544 -.25 -13.485
5 24 28.925 -.25 -15.604 28.925 0 -15.604 27.9 -.25 -17.9 30.544 0 -13.485
5 24 38.1 -.25 -10.5 38.1 0 -10.5 35.333 -.25 -10.878 65 0 -10.5
5 24 -27.9 -.25 -17.9 -27.9 0 -17.9 -27.066 0 -20.748 -28.925 -.25 -15.604
5 24 35.333 -.25 -10.878 35.333 0 -10.878 32.67 -.25 -11.9 38.1 0 -10.5
5 24 26.279 -.25 -26.598 26.279 0 -26.598 26.089 -.25 -29.547 26.586 0 -23.653
5 24 -26.089 0 -29.547 -26.089 -.25 -29.547 -26.279 -.25 -26.598 -26 0 -32.5
5 24 -26.586 -.25 -23.653 -26.586 0 -23.653 -27.066 -.25 -20.748 -26.279 0 -26.598
5 24 -26.279 0 -26.598 -26.279 -.25 -26.598 -26.586 -.25 -23.653 -26.089 0 -29.547
5 24 26 -.25 -32.5 26 0 -32.5 26 -.25 -36.5 26.089 0 -29.547
5 24 -30.544 -.25 -13.485 -30.544 0 -13.485 -32.67 -.25 -11.9 -28.925 0 -15.604
5 24 -38.1 0 -10.5 -38.1 -.25 -10.5 -35.333 0 -10.878 -65 -.25 -10.5
5 24 32.67 -.25 -11.9 32.67 0 -11.9 30.544 -.25 -13.485 35.333 0 -10.878
5 24 27.066 -.25 -20.748 27.066 0 -20.748 26.586 -.25 -23.653 27.9 0 -17.9
5 24 -32.67 0 -11.9 -32.67 -.25 -11.9 -30.544 0 -13.485 -35.333 -.25 -10.878
5 24 -35.333 0 -10.878 -35.333 -.25 -10.878 -32.67 0 -11.9 -38.1 -.25 -10.5
5 24 26.586 0 -23.653 26.586 -.25 -23.653 27.066 0 -20.748 26.279 -.25 -26.598Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Jens Brühl [jb70]
initially submitted the part.
2024-12-15 18:01:25
Magnus Forsberg [MagFors]
posted a vote of Hold
2024-12-15 22:35:02
Jens Brühl [jb70]
made the following comment.
2024-12-15 22:54:33
I used best practice by [Philo]
- https://library.ldraw.org/parts/list?tableSearch=87080s
I think, most or all modern technic panels like these us the same sticker format, at least all that I know about, so far.
- https://library.ldraw.org/parts/list?tableSearch=87080s
I think, most or all modern technic panels like these us the same sticker format, at least all that I know about, so far.
Magnus Forsberg [MagFors]
cancelled their vote.
2025-05-10 12:24:54
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2025-08-02 12:06:12
Inlined Top Surface
Jens Brühl [jb70]
made the following comment.
2025-08-02 12:07:55
Could be renamed to 24119b02.dat according to the new Sticker Box standard.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-08-02 12:17:01
would it help to use a "rectangular" scaled ndis+cyli?
Jens Brühl [jb70]
made the following comment.
2025-08-02 12:35:23
You are right! The prims of the back face got lost while inlining. I will redo...
Rene Rechthaler [Blechtaler]
made the following comment.
2025-08-02 12:39:45
it is possible to inline one level and all levels in LDPE
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2025-08-02 12:42:55
I know! Prims are back.
The large curves are not ellipsoid, so they have been designed by a spline curve, not by stretched circles.
The large curves are not ellipsoid, so they have been designed by a spline curve, not by stretched circles.
Orion Pobursky [OrionP]
edited the part header.
2025-08-02 17:12:59
Header Edits
description:
~Sticker Back for Technic Panel Smooth 7 x 2 x 3 (Flat)
to
~Sticker 3.0 x 6.8 for Technic Panel Smooth 7 x 2 x 3
Orion Pobursky [OrionP]
renamed the part.
2025-08-02 17:13:20
"parts/s/24119s02.dat" to "parts/s/stickerback030x068a.dat"
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2025-08-03 19:27:42
Added help to link this stickerback to the part it should be attached to.
Magnus Forsberg [MagFors]
made the following comment.
2025-08-03 20:03:17
Help info in subfiles? Is that allowed, or usful?
Orion Pobursky [OrionP]
made the following comment.
2025-08-03 20:20:35
Allowed? Yes.
Useful? Not supported by any program I know but that shouldn't preclude use.
Useful? Not supported by any program I know but that shouldn't preclude use.
Magnus Forsberg [MagFors]
edited the part header.
2025-08-13 21:02:22
Header Edits
description:
~Sticker 3.0 x 6.8 for Technic Panel Smooth 7 x 2 x 3
to
~Sticker Back 3.0 x 6.8 for Technic Panel Smooth 7 x 2 x 3
There could be many more, differently shaped stickers on that parts.
