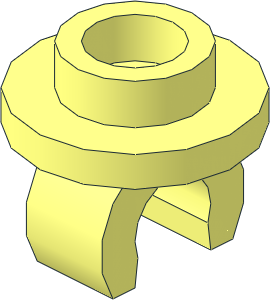

Plate 1 x 1 Round with Hollow Stud and Underside Clip

File Header:

0 Plate  1 x  1 Round with Hollow Stud and Underside Clip
0 Name: 5264.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 3 0 10 0 0 0 -3 0 0 0 10 4-4cylo.dat
1 16 0 3 0 10 0 0 0 -1 0 0 0 10 1-4chrd.dat
1 16 0 3 0 10 0 0 0 -1 0 0 0 -10 1-4chrd.dat
1 16 0 3 0 -10 0 0 0 -1 0 0 0 10 1-4chrd.dat
1 16 0 3 0 -10 0 0 0 -1 0 0 0 -10 1-4chrd.dat
3 16 -4 3 4.2265 0 3 10 4 3 4.2265
3 16 4 3 4.2265 0 3 10 10 3 0
3 16 4 3 4.2265 10 3 0 4 3 -4.2265
3 16 4 3 -4.2265 10 3 0 0 3 -10
3 16 4 3 -4.2265 0 3 -10 -4 3 -4.2265
3 16 -4 3 -4.2265 0 3 -10 -10 3 0
3 16 -4 3 -4.2265 -10 3 0 -4 3 4.2265
3 16 -4 3 4.2265 -10 3 0 0 3 10

1 16 0 0 0 2 0 0 0 1 0 0 0 2 4-4ring4.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 4-4ring3.dat
1 16 0 0 0 4 0 0 0 1 0 0 0 4 4-4disc.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2.dat

1 16 0 3 0 0 0 4 0 .768 0 4.2265 0 0 box4o4a.dat
2 24 -4 3.768 -4.2265 4 3.768 -4.2265
2 24 4 3.768 4.2265 -4 3.768 4.2265
4 16 4 3.768 -4.2265 -4 3.768 -4.2265 -4 5.8035 -6.3256 4 5.8035 -6.3256
4 16 -4 3.768 4.2265 4 3.768 4.2265 4 5.8035 6.3256 -4 5.8035 6.3256
2 24 4 3.768 4.2265 4 5.8035 6.3256
2 24 -4 3.768 4.2265 -4 5.8035 6.3256
2 24 4 3.768 -4.2265 4 5.8035 -6.3256
2 24 -4 5.8035 -6.3256 -4 3.768 -4.2265
5 24 4 5.8035 -6.3256 -4 5.8035 -6.3256 4 3.768 -4.2265 4 8.4628 -7.4612
5 24 4 5.8035 6.3256 -4 5.8035 6.3256 -4 8.4628 7.4612 -4 3.768 4.2265
4 16 4 5.8035 6.3256 4 3.768 4.2265 4 3.768 -4.2265 4 5.8035 -6.3256
4 16 -4 3.768 -4.2265 -4 3.768 4.2265 -4 5.8035 6.3256 -4 5.8035 -6.3256

1 16 0 10 0 0 -1 0 0 0 -1 1 0 0 clip13.dat

Status:

Certified (ACCN)

Current Votes:

User	Vote
Philo	Certify
MagFors	Admin Review
WUIt	Certify

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-12-16 14:09:32

as seen on new E

There is a small hole (moulding artefact) in the centre of the clip to reduce material and allow for better cooling, I did not model this yet as it seems smaller than a 2 LDU radius which could be used for connections. need to check the real part or the mesh

Rene Rechthaler [Blechtaler]

made the following comment.

2024-12-16 16:48:52

should the cylc get flipped? then it would be closed under the stud and would allow a better connection to the clip...

Peter Blomberg [WUIt]

made the following comment.

2025-04-21 18:56:46

Can an admin insert spaces to the header?

Gerald Lasser [GeraldLasser]

edited the part header.

2025-04-21 20:03:50

Header Edits

description:
Plate 1 x 1 Round with Hollow Stud and Underside Clip
to
Plate 1 x 1 Round with Hollow Stud and Underside Clip

Magnus Forsberg [MagFors]

posted a vote of Certify.

2025-04-21 20:21:07

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-04-21 20:39:56

still think the cylc should be flipped:
-the stud is on a solid plane like usual
-the bottom clip is now on a solid plane, but should be integrated/cut out
-no need for the ring prims, close the bottom with chrd+triangles

Gerald Lasser [GeraldLasser]

made the following comment.

2025-04-21 21:01:56

Rene, given that the current design is no hold reason, there is no difference whether the stud of the clip sits on the disc of the cylc

I would rather replace the clyc by a cylo to to have them embedded both

Philippe Hurbain [Philo]

posted a vote of Certify.

2025-04-22 06:56:42

I would definitely rather use a disc on top and bottom to minimize surfaces!!!!

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-10 19:55:36

this part is now also availiable transparent (Set 31216), the underside should be cut out...
normally, studs arent cut out and placed on a closed face instead.

Philippe Hurbain [Philo]

cancelled their vote.

2025-05-31 16:52:39

Then you have a point ;)

Jeff Jones [notmaster]

made the following comment.

2025-06-16 16:03:41

bump

Magnus Forsberg [MagFors]

cancelled their vote.

2025-06-16 16:24:16
