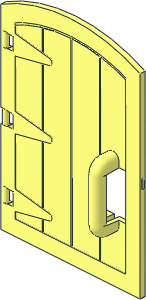

0 Duplo Door 1 x 4 x 4 Wooden with Handle and Rounded Top
0 Name: 51288.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !KEYWORDS Castle
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
0 // handle
1 16 106.5 16 -2 1 0 0 0 1 0 0 0 1 s\51288s01.dat
0 // upper hinge
1 16 0 -62 0 1 0 0 0 1 0 0 0 1 ddoorhingepin.dat
0 // middle hinge
1 16 0 0 0 1 0 0 0 1 0 0 0 1 ddoorhingepin.dat
1 16 0 6.6 0 0 0 -2.5 0 -13.2 0 2.5 0 0 2-4cylo.dat
1 16 0 6.6 0 0 0 -2.5 0 1 0 2.5 0 0 2-4ndis.dat
1 16 0 -6.6 0 0 0 -2.5 0 -1 0 2.5 0 0 2-4ndis.dat
1 16 -1.25 6.6 0 0 0 -1.25 0 1 0 2.5 0 0 recte3.dat
1 16 -1.25 -6.6 0 0 0 -1.25 0 -1 0 2.5 0 0 recte3.dat
0 // lower hinge
1 16 0 62 0 1 0 0 0 1 0 0 0 1 ddoorhingepin.dat
0 // right side with latch
1 16 133.5 0 0 0 1 0 0 0 4 .8 0 0 box5.dat
1 16 133.5 1.165 0 0 -1 0 -89.835 0 0 0 0 2.5 rect.dat
0 // left side
4 16 -2.5 6.6 2.5 -2.5 91 2.5 -2.5 91 -2.5 -2.5 6.6 -2.5
4 16 -2.5 -88.67 -2.5 -2.5 -88.67 2.5 -2.5 -6.6 2.5 -2.5 -6.6 -2.5
2 24 -2.5 -88.67 2.5 -2.5 -88.67 -2.5
0 // bottom
1 16 65.5 91 0 68 0 0 0 -1 0 0 0 2.5 rect.dat
0 // top
1 16 65.5 15 -2.5 0 0 135 -120 0 0 0 5 0 48\1-12cylo.dat
1 16 65.5 15 -2.5 0 0 -135 -120 0 0 0 5 0 48\1-12cylo.dat
1 16 133.25 -88.795 0 -.25 0 0 -.125 1 0 0 0 2.5 rect2p.dat
1 16 -2.25 -88.795 0 -.25 0 0 .125 1 0 0 0 2.5 rect2p.dat
0 // front around handle
1 16 106.5 42 -2 6 0 0 0 0 6 0 1 0 2-4ndis.dat
1 16 106.5 -10 -2 6 0 0 0 0 -6 0 1 0 2-4ndis.dat
4 16 119.5 37 -2 112.5 42 -2 112.5 48 -2 119.5 77 -2
4 16 94.5 37 -2 94.5 77 -2 100.5 48 -2 100.5 42 -2
4 16 106.5 48 -2 100.5 48 -2 94.5 77 -2 119.5 77 -2
4 16 112.5 -16 -2 112.5 -10 -2 119.5 -5 -2 119.5 -77.4366 -2
4 16 106.5 -16 -2 112.5 -16 -2 119.5 -77.4366 -2 111.0413 -81.0856 -2
4 16 94.5 -5 -2 100.5 -10 -2 100.5 -16 -2 94.5 -85.8 -2
3 16 96.2972 -85.4536 -2 106.5 -16 -2 111.0413 -81.0856 -2
4 16 96.2972 -85.4536 -2 94.5 -85.8 -2 100.5 -16 -2 106.5 -16 -2
3 16 119.5 77 -2 112.5 48 -2 106.5 48 -2
3 16 100.5 37 -2 94.5 37 -2 100.5 42 -2
3 16 112.5 37 -2 112.5 42 -2 119.5 37 -2
3 16 112.5 -5 -2 119.5 -5 -2 112.5 -10 -2
3 16 94.5 -5 -2 100.5 -5 -2 100.5 -10 -2
0 // back around handle
1 16 106.5 41 2 2.5 0 0 0 0 2.5 0 -1 0 2-4ndis.dat
1 16 106.5 -9 2 2.5 0 0 0 0 -2.5 0 -1 0 2-4ndis.dat
4 16 109 43.5 2 109 41 2 119.5 37 2 119.5 77 2
4 16 104 43.5 2 94.5 77 2 94.5 37 2 104 41 2
4 16 94.5 77 2 106.5 43.5 2 109 43.5 2 119.5 77 2
3 16 106.5 43.5 2 94.5 77 2 104 43.5 2
4 16 119.5 -5 2 109 -9 2 109 -11.5 2 119.5 -77.4366 2
4 16 119.5 -77.4366 2 109 -11.5 2 106.5 -11.5 2 111.0413 -81.0856 2
4 16 104 -11.5 2 104 -9 2 94.5 -5 2 94.5 -85.8 2
3 16 106.5 -11.5 2 96.2972 -85.4536 2 111.0413 -81.0856 2
4 16 104 -11.5 2 94.5 -85.8 2 96.2972 -85.4536 2 106.5 -11.5 2
3 16 104 37 2 104 41 2 94.5 37 2
3 16 109 41 2 109 37 2 119.5 37 2
3 16 119.5 -5 2 109 -5 2 109 -9 2
3 16 104 -9 2 104 -5 2 94.5 -5 2
0 // around handle
2 24 112.5 37 -2 119.5 37 -2
2 24 112.5 -5 -2 119.5 -5 -2
2 24 109 37 2 119.5 37 2
2 24 109 -5 2 119.5 -5 2
2 24 119.5 -5 -2 119.5 -5 2
2 24 119.5 37 -2 119.5 37 2
2 24 100.5 37 -2 94.5 37 -2
2 24 93.5 37 -1.5 93.5 37 1.5
2 24 93.5 -5 -1.5 93.5 -5 1.5
2 24 94.5 -5 2 104 -5 2
2 24 100.5 -5 -2 94.5 -5 -2
2 24 104 37 2 94.5 37 2
4 16 109 -5 2 119.5 -5 2 119.5 -5 -2 112.5 -5 -2
4 16 119.5 -5 -2 119.5 -5 2 119.5 37 2 119.5 37 -2
4 16 119.5 37 -2 119.5 37 2 109 37 2 112.5 37 -2
4 16 94.5 37 1.5 93.5 37 1.5 93.5 37 -1.5 94.5 37 -1.5
4 16 94.5 -5 -1.5 93.5 -5 -1.5 93.5 -5 1.5 94.5 -5 1.5
3 16 94.5 37 2 94.5 37 1.5 104 37 2
3 16 94.5 37 -1.5 94.5 37 -2 100.5 37 -2
4 16 94.5 37 1.5 94.5 37 -1.5 100.5 37 -2 104 37 2
3 16 94.5 -5 1.5 94.5 -5 2 104 -5 2
3 16 94.5 -5 -2 94.5 -5 -1.5 100.5 -5 -2
4 16 100.5 -5 -2 94.5 -5 -1.5 94.5 -5 1.5 104 -5 2
4 16 93.5 37 -2 93.5 37 -1.5 93.5 -5 -1.5 93.5 -5 -2
4 16 93.5 37 -1.5 93.5 37 1.5 93.5 -5 1.5 93.5 -5 -1.5
4 16 93.5 -5 1.5 93.5 37 1.5 93.5 37 2 93.5 -5 2
0 // front and back
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51288s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\51288s03.dat
